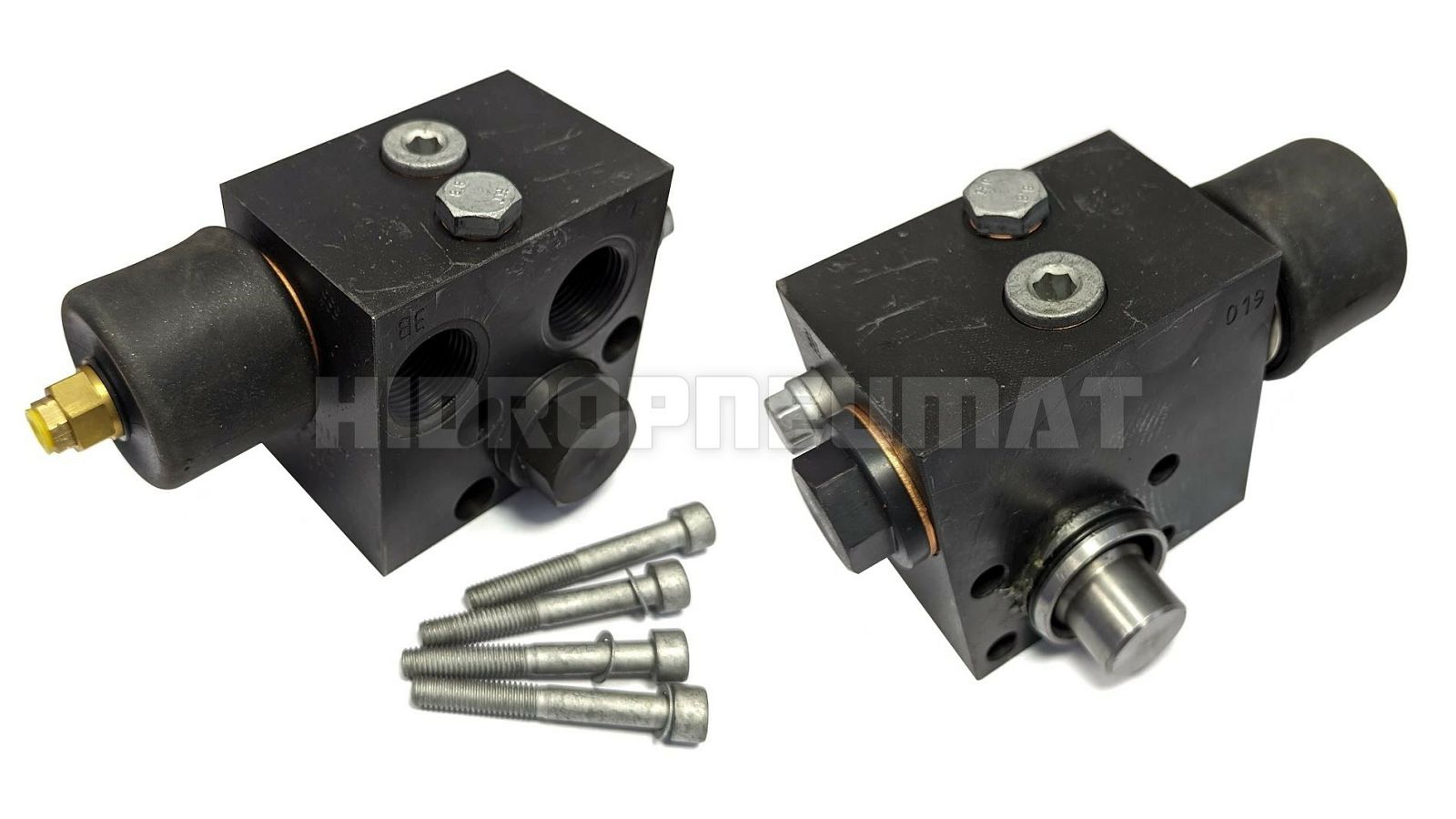

VENTIL MEIILER KIPER 315bar, 504/122 - MEILLER

00504122
05042040099B
504/122
504/99 - ZAMJENA 00504122
504/99B
127574
134184
34/34
61100414300

dio od ventila 504/121

Connection pneumatic 6x1
Max. pneumatic pressure (bar) 10
Connection pressure output 1: M 27x2 internal thread
Connection pressure output 2: M 27x2 internal thread
Type504/122
Connection pressure input: flange
Weight (kg) 3.852
Material: steel
Max. operating pressure (bar) 315.0

----------------


Width (mm)
105

Weight (kg)
3,852

Height (mm)
98

Length (mm)
155

Brand
Meiller

Type
504/122

Max. operating pressure (bar)
315

Material
steel

Connection pressure input
flange

Connection pneumatic
6x1

Max. pneumatic pressure (bar)
10

Connection pressure output 1
M 27x2 internal thread

Connection pressure output 2
M 27x2 internal thread
