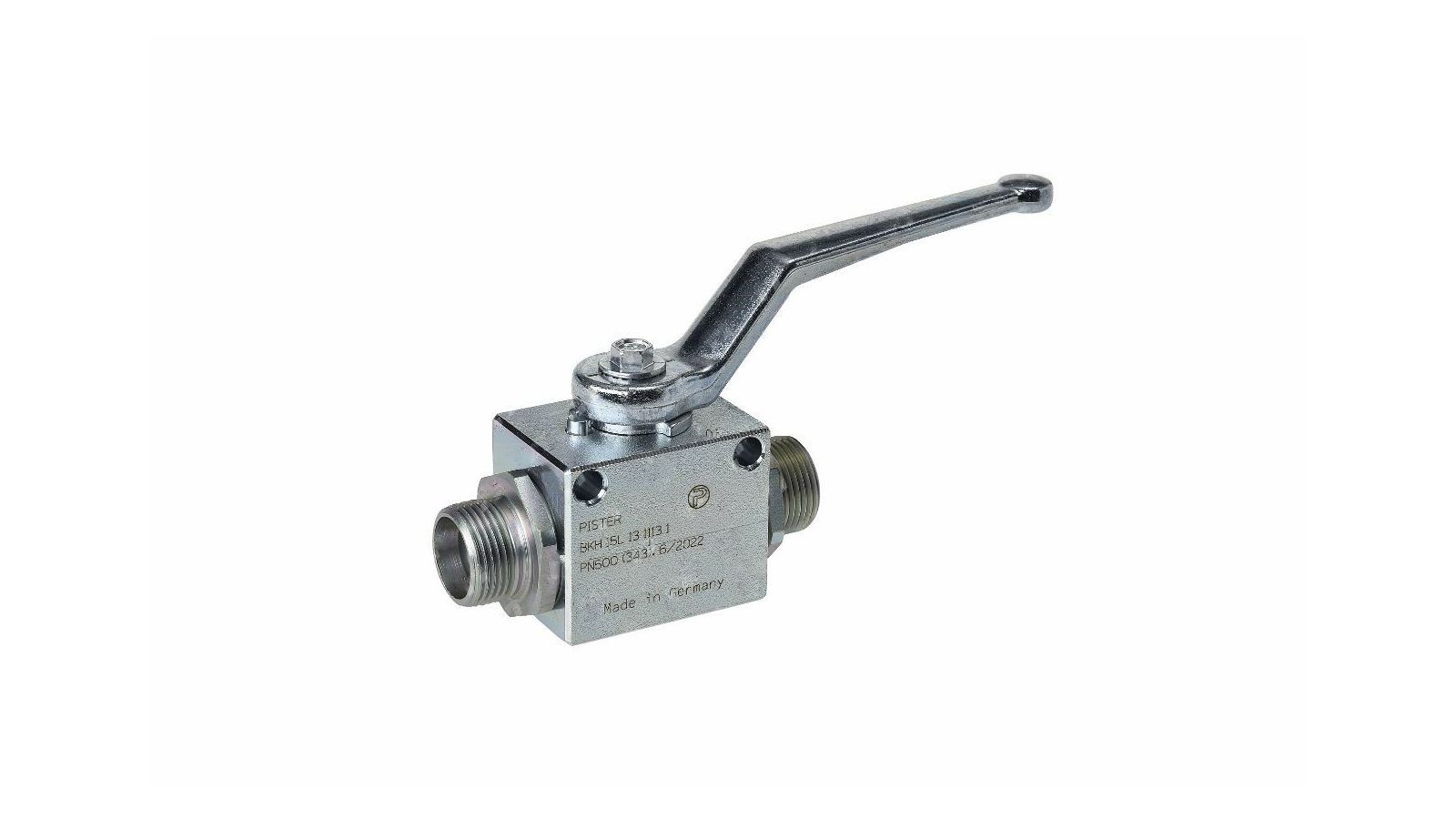

2/2 WAY VENTIL, 15L, M22x1,5/FI15 (S RUPAMA ZA PRIHVAT)

BKH15L1311131BO
BKH 15L 13 1113 1
BKH-15L
62300623900

------------

Length (mm)
33,5

Thread external A metric
M 22x1,5

Thread external B metric
M 22x1,5

Nominal diameter (mm)
13

Production series
light

For FI tube A (mm)
15

For FI tube B (mm)
15

Surface
galvanized

Type
2/2-way

Ball bore form
channel

Mounting bore (mm)
5,0

Width across flats square (mm)
9

Width across flats line connection (mm)
30

Material
steel

Tube AD series
15 L

Weight (kg)
0,574

Brand
Pister

Max. operating pressure (bar)
500
