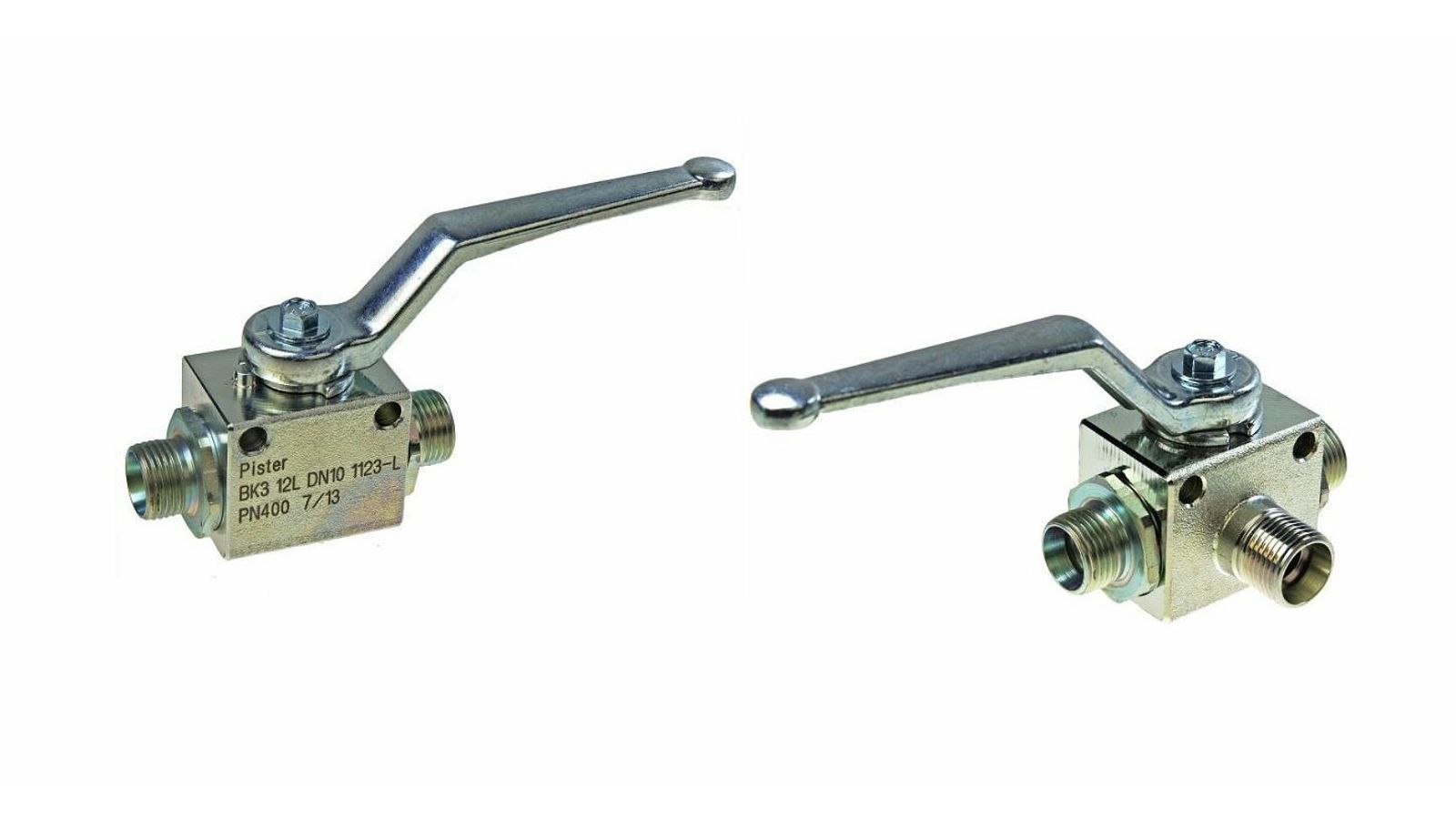

3/2-way VENTIL, 12L, M18x1,5/L, VISOKI PRITISAK, S RUPAMA ZA PRIHVAT

BK3-12L
BK312L1011231L90BO
BK312L1011231
BK312L
C000-BK3-12LO
VH3V-12L
RS3-12LR
62300037100

--------

Weight (kg)
0,5

Length (mm)
75

Brand
Pister

Thread external A metric
M 18x1,5

Thread external B metric
M 18x1,5

Thread external C metric
M 18x1,5

Nominal diameter (mm)
10

Production series
light

For FI tube A (mm)
12

For FI tube B (mm)
12

Max. operating pressure (bar)
400

For FI tube C (mm)
12

Shifting travel
negative overlap

Surface
galvanized

Type
3/2-way

Ball bore form
L

Mounting bore (mm)
6,5

Width across flats square (mm)
9

Width across flats line connection (mm)
27

Tube AD series
12 L
