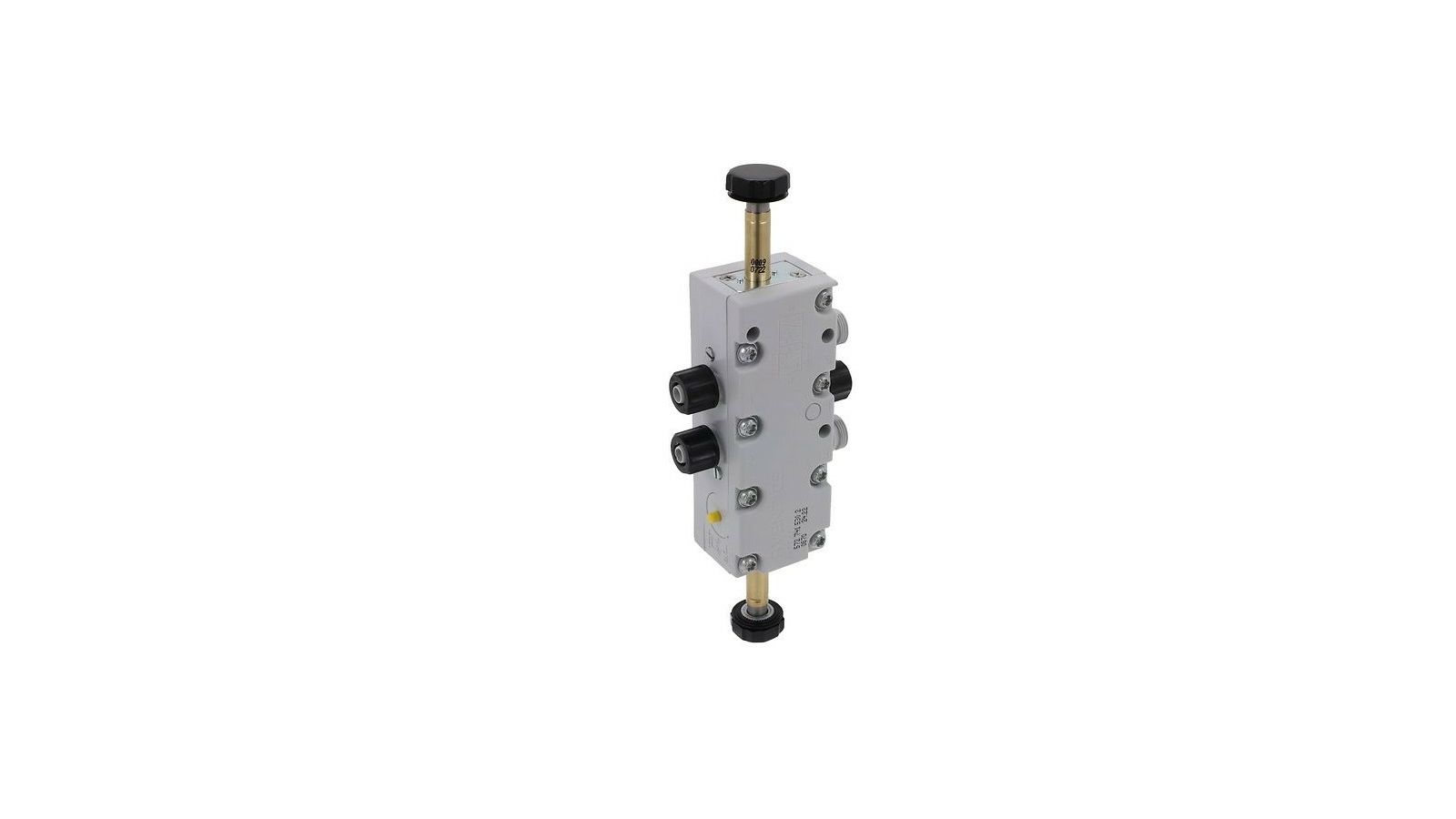

5/2 VENTIL Series 740 - AVENTICS

5727415302
V740-5/2DS-00000-07

--------------

Activation
Electrically

Nominal flow
Qn700 l/min

Switching principle
5/2

Compressed air connection output
O 8x1

Working pressure
min.1.5 bar

Working pressure
max10 bar

Manual override
with detent

Electrical connection type
Plug

Electrical connection size
EN 175301-803, form A

Actuating control
Double Solenoid

Sealing principle
Soft Seal

Pilot
Internal

ATEX
ATEX optional

Valve type
Diaphragm poppet valve

basic valve with electrical connector
Basic valve without coil

Throttle
with throttle

Connection type
Pipe connection

Blocking principle
Plate principle, Single base plate principle

Can be assembled into blocks
Can be assembled into blocks

Min. ambient temperature-15 °C
Max. ambient temperature50 °C
Min. medium temperature-15 °C
Max. medium temperature50 °C

MediumCompressed
air

Max. particle size
50 µm
