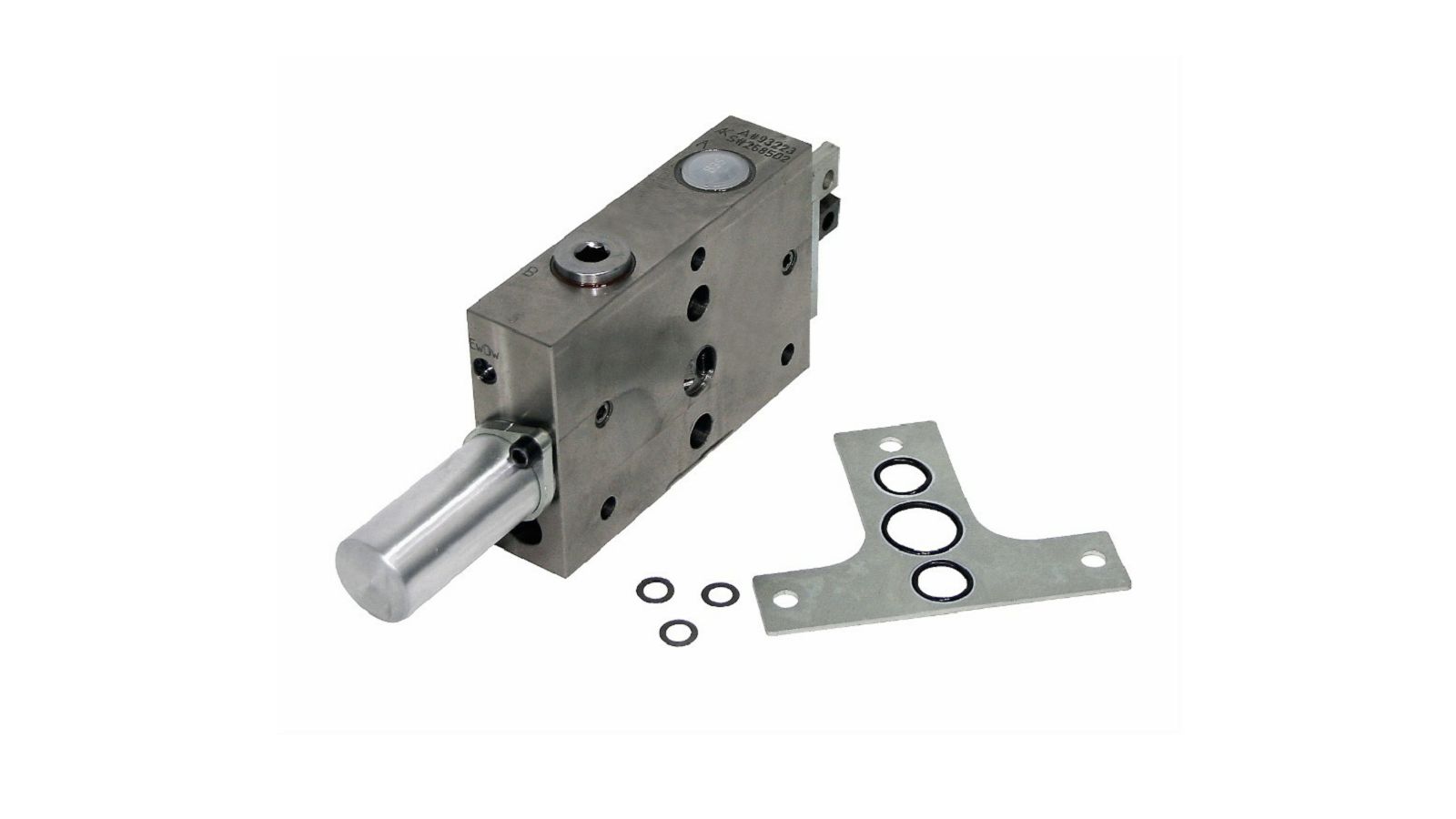

This auxiliary control unit is a 5/4-way valve used to control cylinders and hydraulic motors. It has slide-sealed cylinder ports A and B.
The device has a grid position in the lifting position, which is equipped with hydraulic-automatic limit stop.
The lowering position is also detented, but without limit switching. If you continue switching via the lowering position, the latched floating position is switched on.
(consumer connections A and B connected to each other for return flow)
The floating position can be used as a detented lowering position for both double-acting and single-acting lifting cylinders.
The auxiliary control unit can be switched from double-acting to single-acting and vice versa.
This is also possible during operation. optionally available with single lever or with cable remote control A backup valve is integrated.
The valve can be mounted on the left as well as on the right by means of a freely positionable sealing plate. The sealing plate is included in scope of delivery.
---------------
Connection pressure output A
M 22x1.5 internal thread
Connection pressure output B
M 22x1.5 internal thread
Function
single action
dual action
floater position
Height (mm)
110
Info 1
internal oil routing
Info 2
SB23 OC
Length (mm)
260
Material
steel
Max. flow rate (l/min)
70
Max. operating pressure (bar)
220
Operating
manual
Pressure limiting valve (bar)
without
Status zero position
P T open A B closed
Surface
untreated
Switch function
5/4-way
Switch position
locking position for lifting
locking position for lowering
detent in floating position
Type
SB 23 OC
Weight (kg)
4,4
Width (mm)
40
