10LHBS050BLK827
65000033100
36040
use with compressors and compressed air systems with high temperatures, such as when unloading silo vehicles
Bending radius (mm)
305
Braiding
PVC spiral
Brand
ContiTech
Burst pressure (bar)
18
Color exterior
black
Color interior
black
Electrically conductive
no
Form surface
slightly wavy
Length per roll (m)
40
Material ceiling
EPDM
Material core
EPM®
Material pressure carrier
polyester yarn insert
steel wire spiral

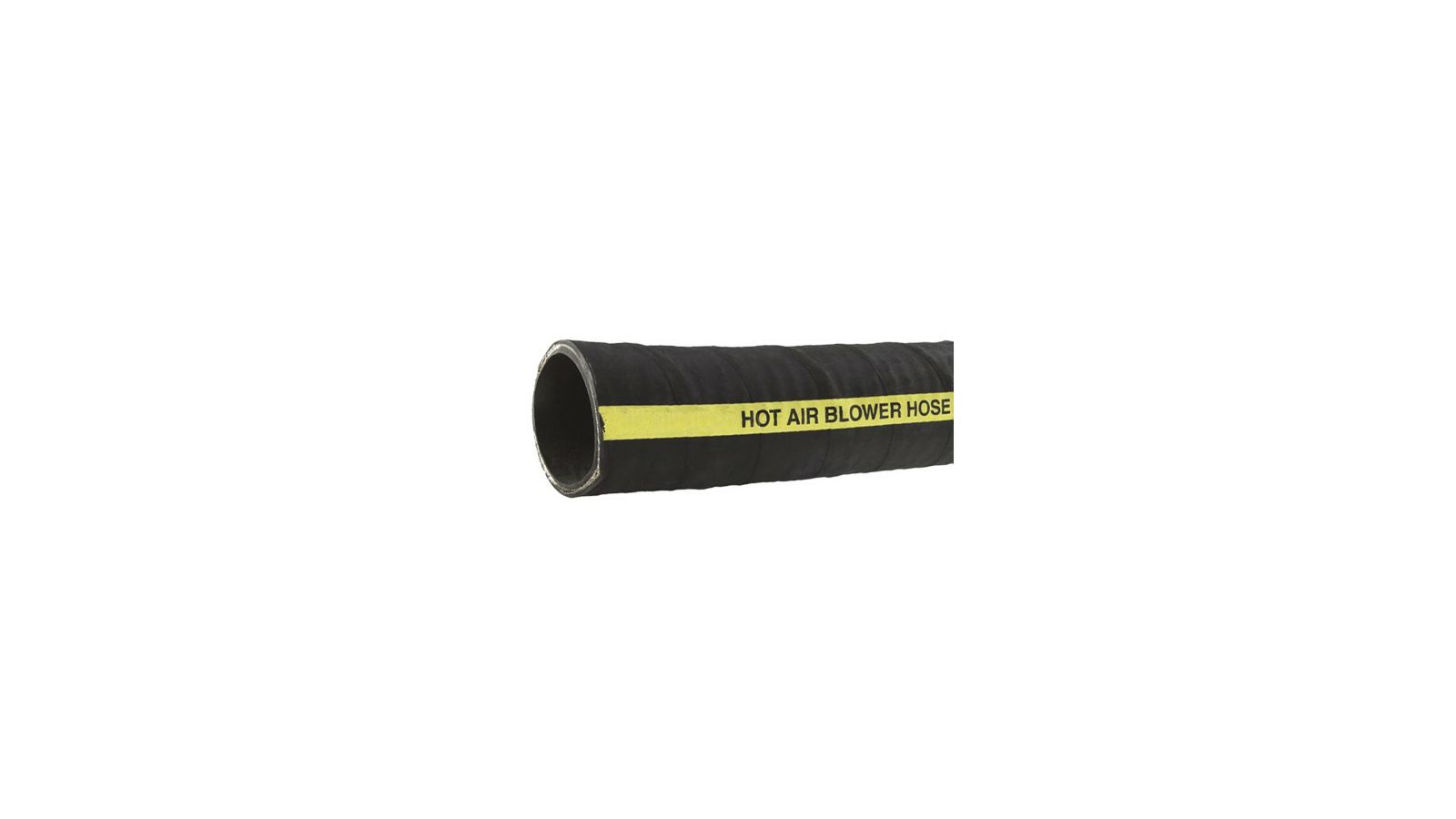

Name hose
Plicord Hot Air®
Operating pressure (bar)
6
PU
by the meter
Ref. no.
ContiTech 10LHBS050BLK827
Temperature range from (°C)
-29
Temperature range to (°C)
180
Usage details medium
hot air
compressor air
Version
pressure hose
Wall thickness (mm)
6,9
Weight (kg)
1,73
o external (mm)
65
o internal (inches)
2
o internal (mm)
51,2
