95244
din95244

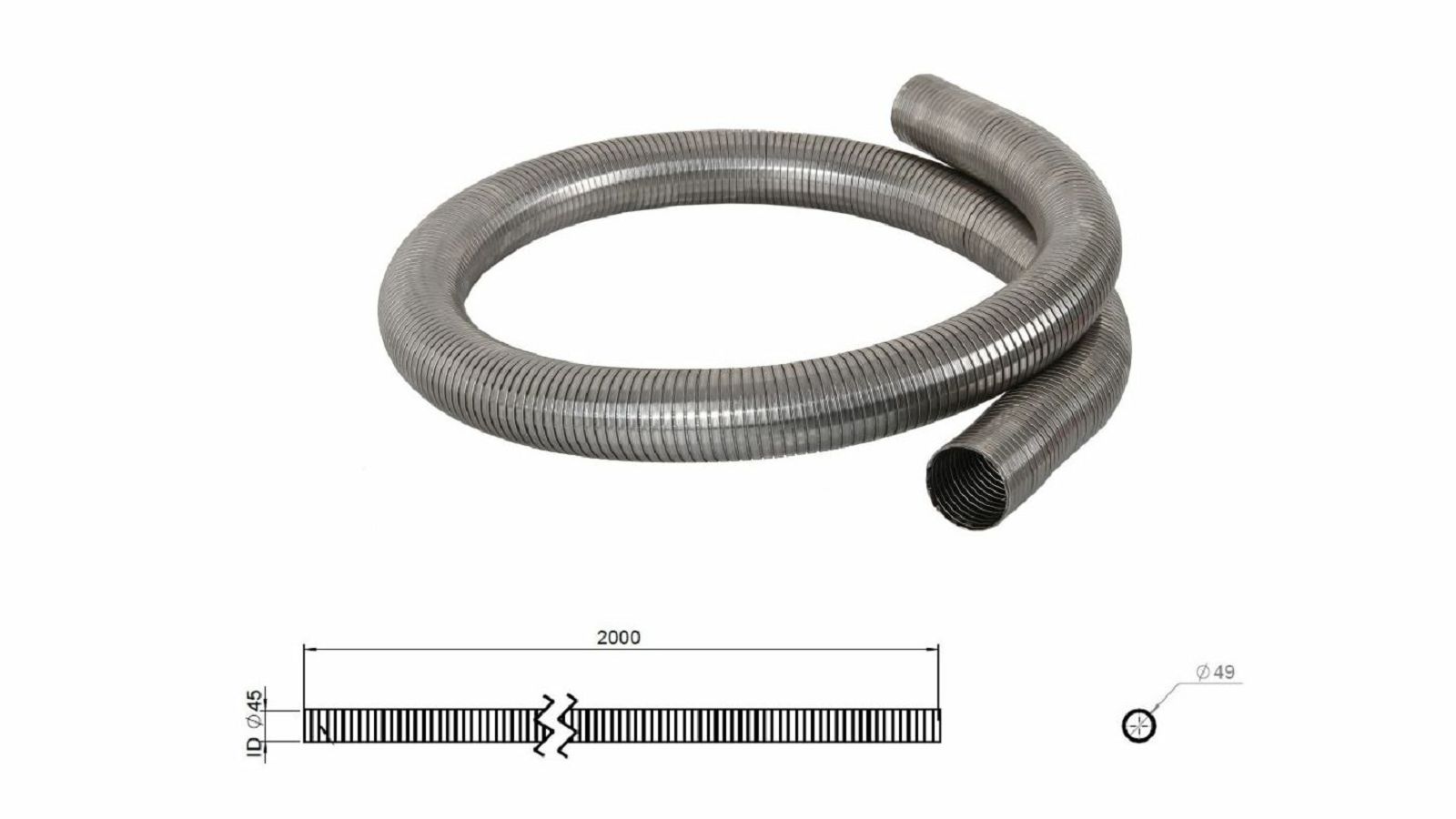

D2S Round Double Interlocked Profile
Leakage Rate: 15.0 L min-1dm-2 @0.15bar
Flexibility/Force: 60-300 N (± 15mm from mid position)
Axial Extension : > = 20% (>= 60mm)
Maximum Torsion: 2° (@ compressed length of 300mm)
Max temperature 550 degrees
-------------------------------------------------------------------
EAN 5700760129762
Tariff number 8307100090
Material Stainless Steel
Net weight [kg] 2.25
Inner diameter [mm] 45.00
Outer diameter [mm] 49.00
Extended Length 2600
Inner diameter [inch] 1 3/4
Installation Length 2300
Outer diameter [inch] 1 9/10
Height [mm] 48.00
Width [mm] 48.00
Length [mm] 2000.00
Weight [LBS] 4.96
Height [inch] 1.89
Width [inch] 1.89
Length [in] 78.74
