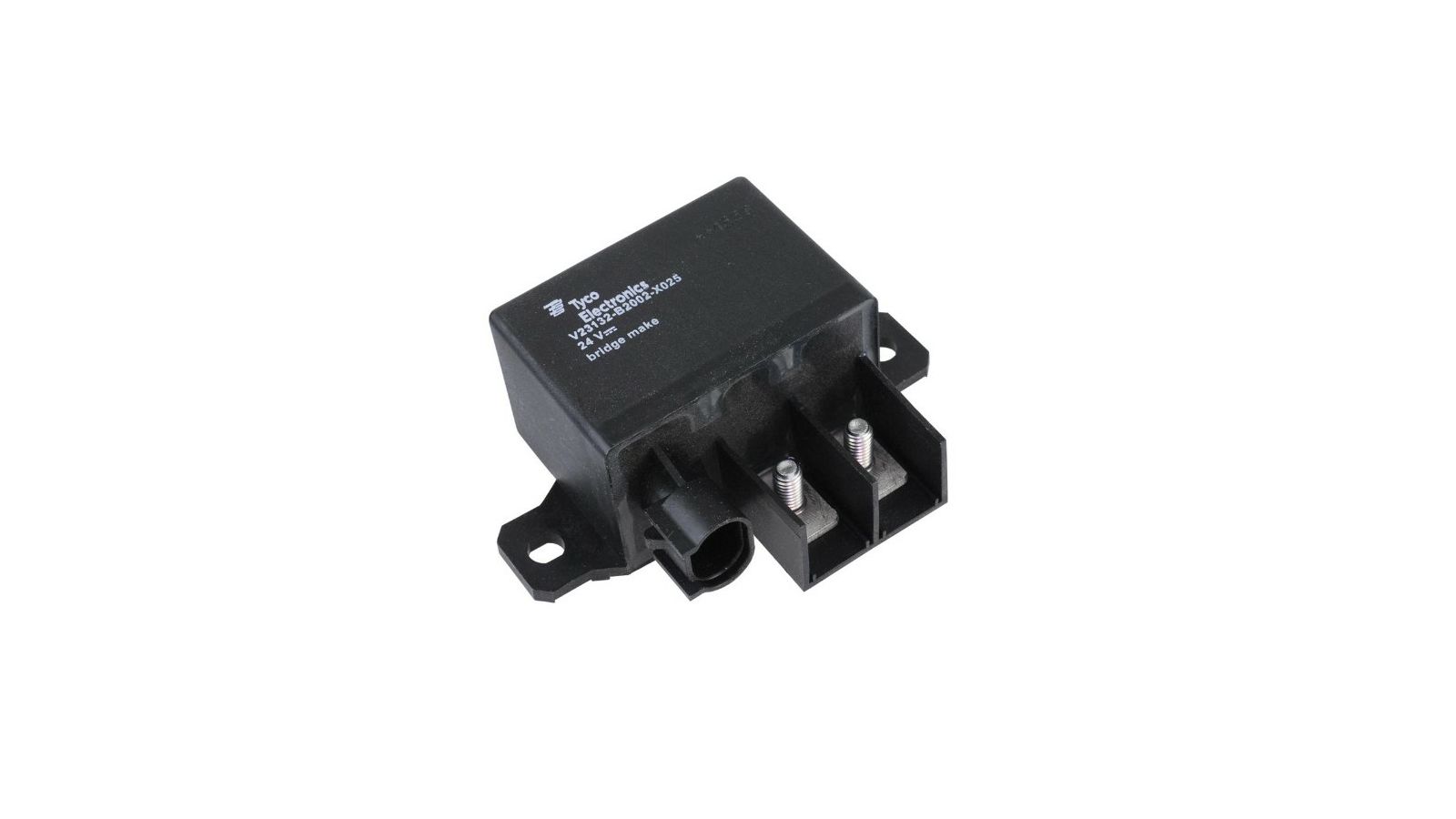

ELEKTROMAGNETNI RELEJ 24VDC; 130A; HCR150

V23132-B2002-B200
V23132B2002B200
1-1393315-1

------------------

Contacts configuration
SPST-NO DM

Rated coil voltage
24V DC

Contact current max.
130A

Relay variant
automotive, power

Relay series
HCR150

Operating temperature
-40...125°C

Mounting
on panel

Body dimensions
84x45x40mm

Switched voltage
max. 24V DC

Coil resistance
141?

Contact material
AgSnO2

Leads
screw terminals

DC contacts rating @R
(at resistive load)
at resistive load
130A / 12V DC

Coil power consumption
4.1W

Contact resistance
50m?

IP rating
IP67
