25.2726.05.0000
252726050000
252726050000/SET
29.2300.00.2036.0E
58400202900
The new Airtronic S2 Commercial features automatic height adjustment as standard and is infinitely variable.
With the introduction of a brushless motor, the service life has been increased to 5,000 hours. With the introduction of a brushless
motor, the service life has been increased to 5,000 hours.
In addition, the new Airtronic uses Eberspächer's pioneering CANBus technology
IMPORTANT!
Please note the additionally required accessories such as cap, tube, grille, clamp.
Please note the additional required accessories such as cap, pipe, grille, clamp. These parts are not included in the installation kit and must be ordered separately.
Different control units can also be used for the heater. The control unit must also be ordered separately.
Width (mm)
115
Weight (kg)
3,15
Height (mm)
122
Length (mm)
310
Brand
Eberspächer
Voltage (V)
24
Number of levels
0
Type
D2L
Air flow (m3/h)
105
Fuel
diesel
Max. heat flow (W)
2200
Usage
auxiliary heating system
GGVSEB/ADR
approved
-------------

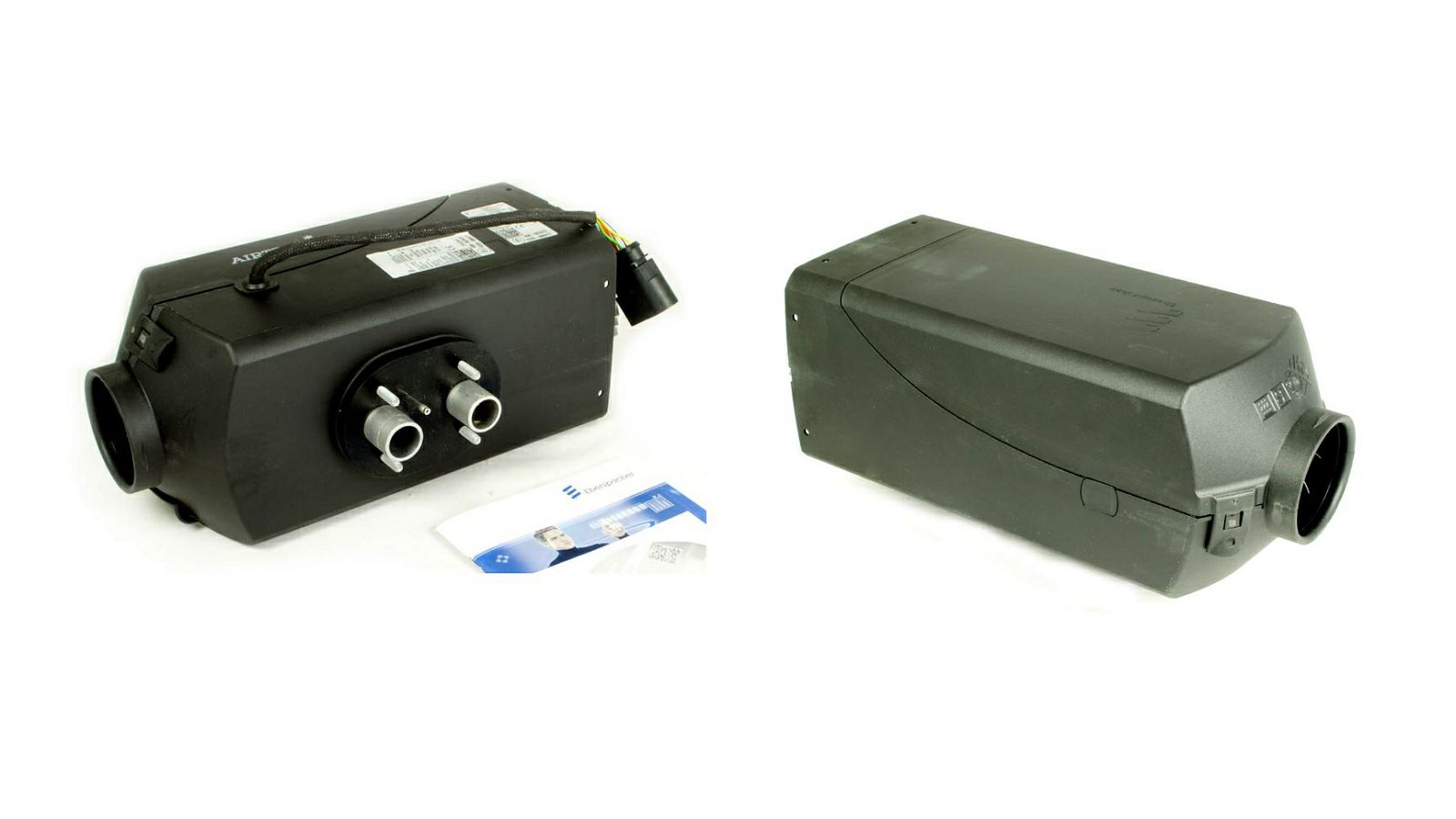

Eberspächer Grijanje Airtronic S2 Commercial D2L 24V
• Sučelja: CAN, S+
• Životni vijek 5.000 sati
• Motor bez četkica
• Korištenje najnovijih generacija upravljačkih elemenata EasyStart Pro i EasyStart Web
• Dijagnostika i parametrizacija putem EasyScan-a
• Mogućnost pokretanja do -46 °C
• Bezstupanjska regulacija snage grijanja
• Optimizirana emisija buke
• Korištenje akustički poboljšane pumpe za doziranje
• Integrirani senzor visine:
- automatsko podešavanje visine do 3.000 m
- optimiziran rad gorenja
Napon: 24V
Regulacija / protok topline / protok zraka / električni input / potrošnja goriva:
Puna snaga 2200 W / 105 m3/h / 31 W / 0,28 l/h
Niska snaga 850 W / 42 m3/h / 8 W / 0,1 l/ h
Dimenzije d/š/v: 310x115x122 mm
Uvođenjem motora bez četkica životni vijek je povećan na 5000 sati.
Korištenje novog motora, moderne tehnologije upravljanja i korištenje najnovije tehnologije pumpe za doziranje također osiguravaju poboljšanu akustiku.
Novi Airtronic također koristi Eberspächer CAN bus tehnologiju usmjerenu na budućnost.
