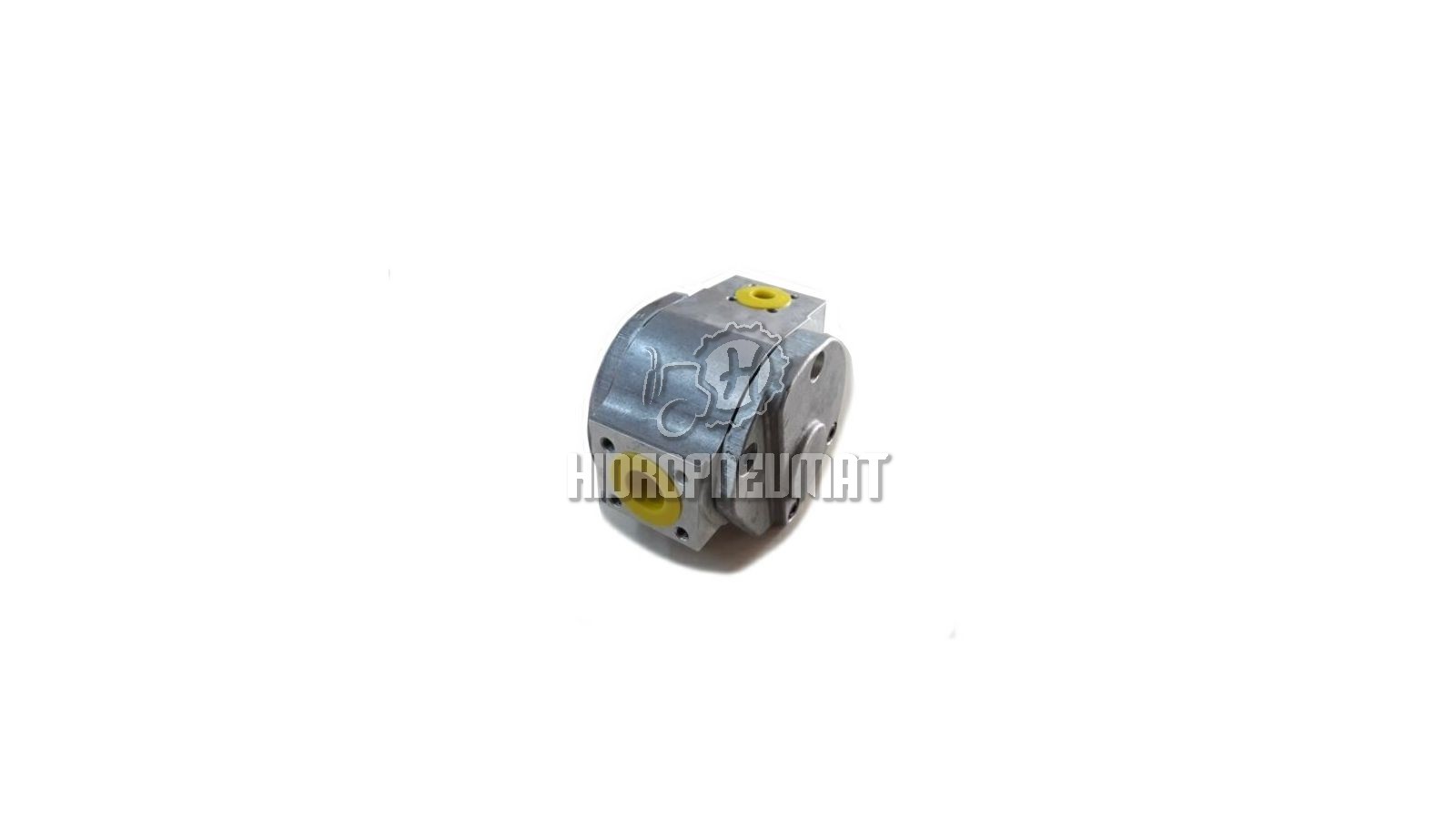

HIDRAULIČNA PUMPA, MAN 32,5cm3/r, LIJEVA - BOSCH REXROTH

51066507005
51.06650.7005
51066507006
PGF3-3X/032LJ20VX0-A396
R901001426
3.15237
0120.426.280 SOLARIS
4057795035393
61172003300

---------------

Max. revolution (rpm): 3000
Direction of rotation: left
Delivery volume (cm3/r): 32,5
FI suction connection (mm): 25
Mounting suction connection: hole circle 55 mm M 8
FI pressure connection (mm): 14
Mounting pressure connection: hole circle 35 mm M 6
Usage: fan drive system
Assembly flange drive: special form
Weight (kg) 3,675
Operating pressure (bar): 250
Center FI flange (mm): 88
FI shaft/hub (mm): 17
Manufactured size: 3
Optional equipment valve: without valve
Material housing aluminum
Specification drive: hub 15 teeth
Version: single pump
