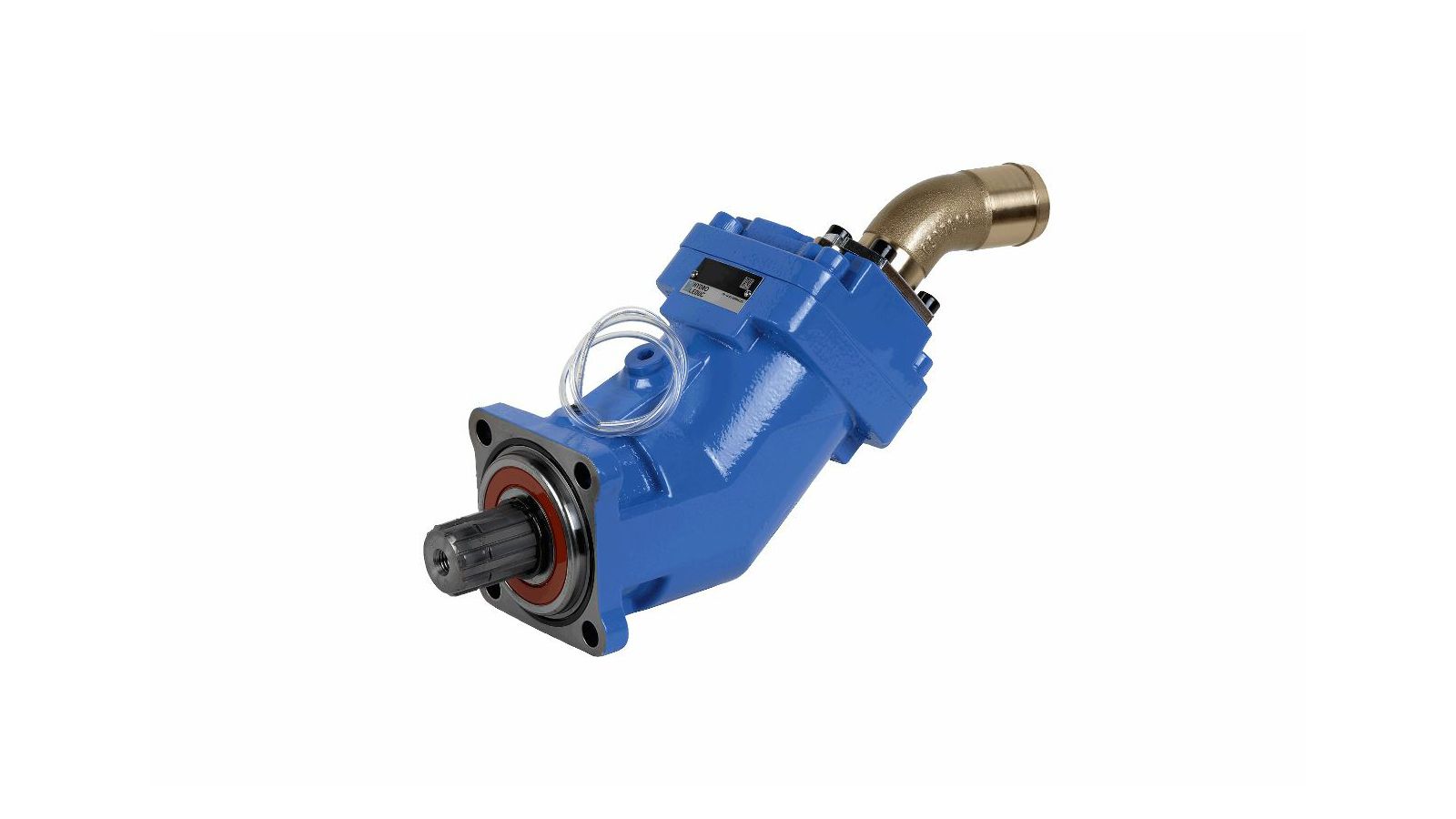

HIDRAULIČNA PUMPA XPI50 - HYDRO LEDUC (SA USISNOM CIJEVI)

XPI50
61100352400

Weight (kg)
12.7

Operating pressure (bar)
380

Max. revolution (rpm)
2450

Direction of rotation changeable
yes

Max. pressure (bar)
420

Delivery rate (cm3/r)
50

Direction of rotation
left/right

Standard drive DIN
5462

Material housing
cast steel

Construction
inclined axis

Type
XPI 50

Specification drive
shaft 8x32x36

Assembly flange drive
4-hole 80x80 mm

Suction connection
plugged in

Pressure connection
G 3/4 inch internal thread
