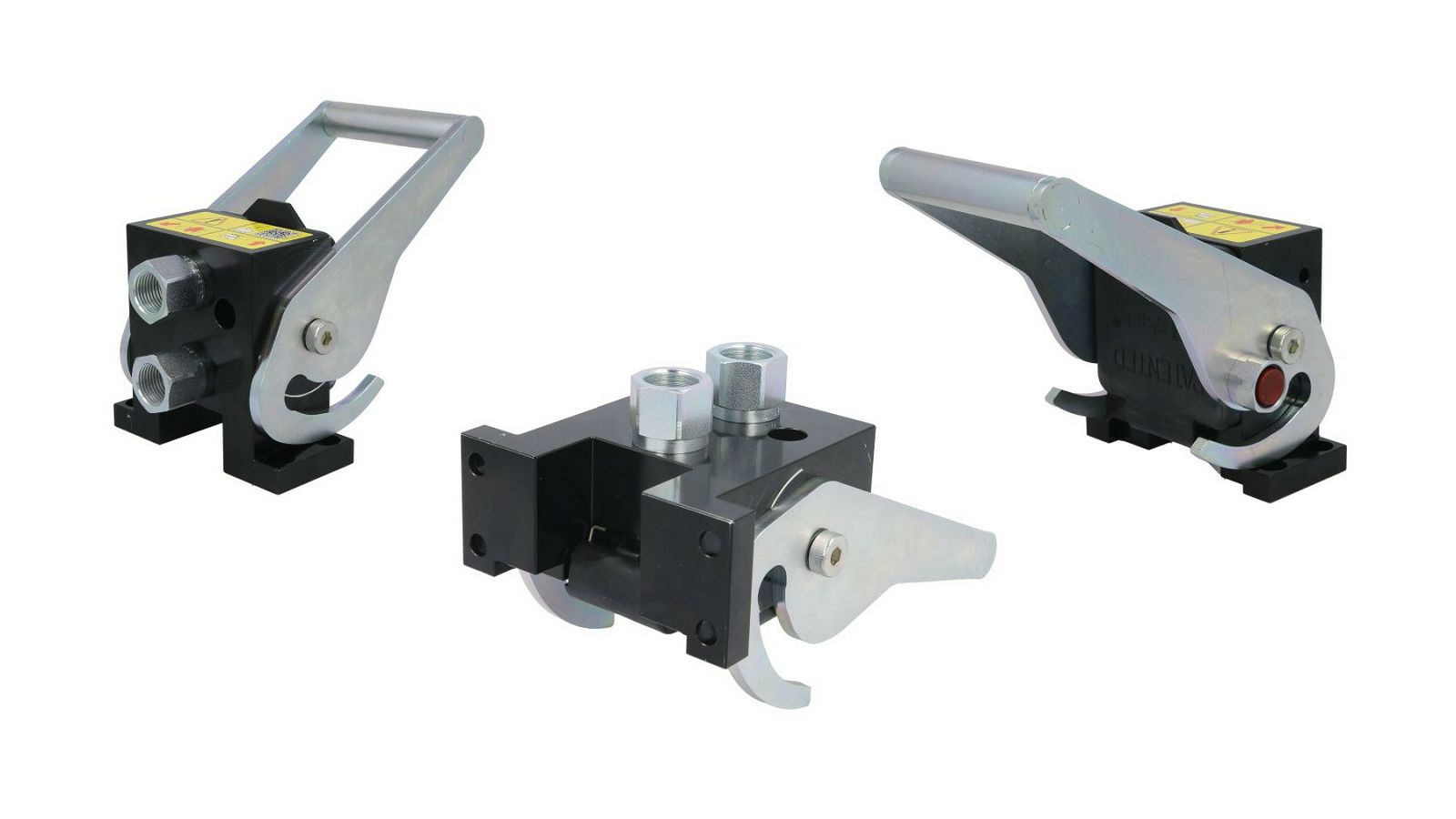

HIDRAULIČNA SPOJKA BRZO SPAJANJE TIP P206, ŽENSKA, 2 X 3/8inch 40l/min. - FASTER

2P206-2-12G F C
2P206-2-12GFC
2P206212GFC
030-017-102 SCHÄFFER
62300039600



MUŠKI DIO:
2P206-2-12G M C
2P206-2-12GMC
2P206212GMC

------------

Veličina u inčima 3/8 cola
Protok 40.0 l/min
Tlak 25.0 MPa
Radna temperatura od 100 °C
Radna temperatura do -25 °C

Brand
Faster

Certified according to ISO
yes

Connection type
internal thread

Coupling type
flat sealing

Electrical connections
without

Material housing
aluminum/steel

Max. flow rate (l/min)
40

Nominal diameter (mm)
10

Operating pressure (bar)
250

System
Faster

Thread internal (inches)
G 1/2

2 x Couplings 3/8":
BSPP 1/2" FEMALE - ISO 1179-1

Flow Rate:
40 (l/min) at 0.2 MPa

Temperature:
-25 °C to 100 °C

Seals:
NBR & PUR

Type
P206

Version multi-coupling
2-fold

Weight (kg)
2,435
