2P506412GMC
2P506-4-12G M C
62300036700

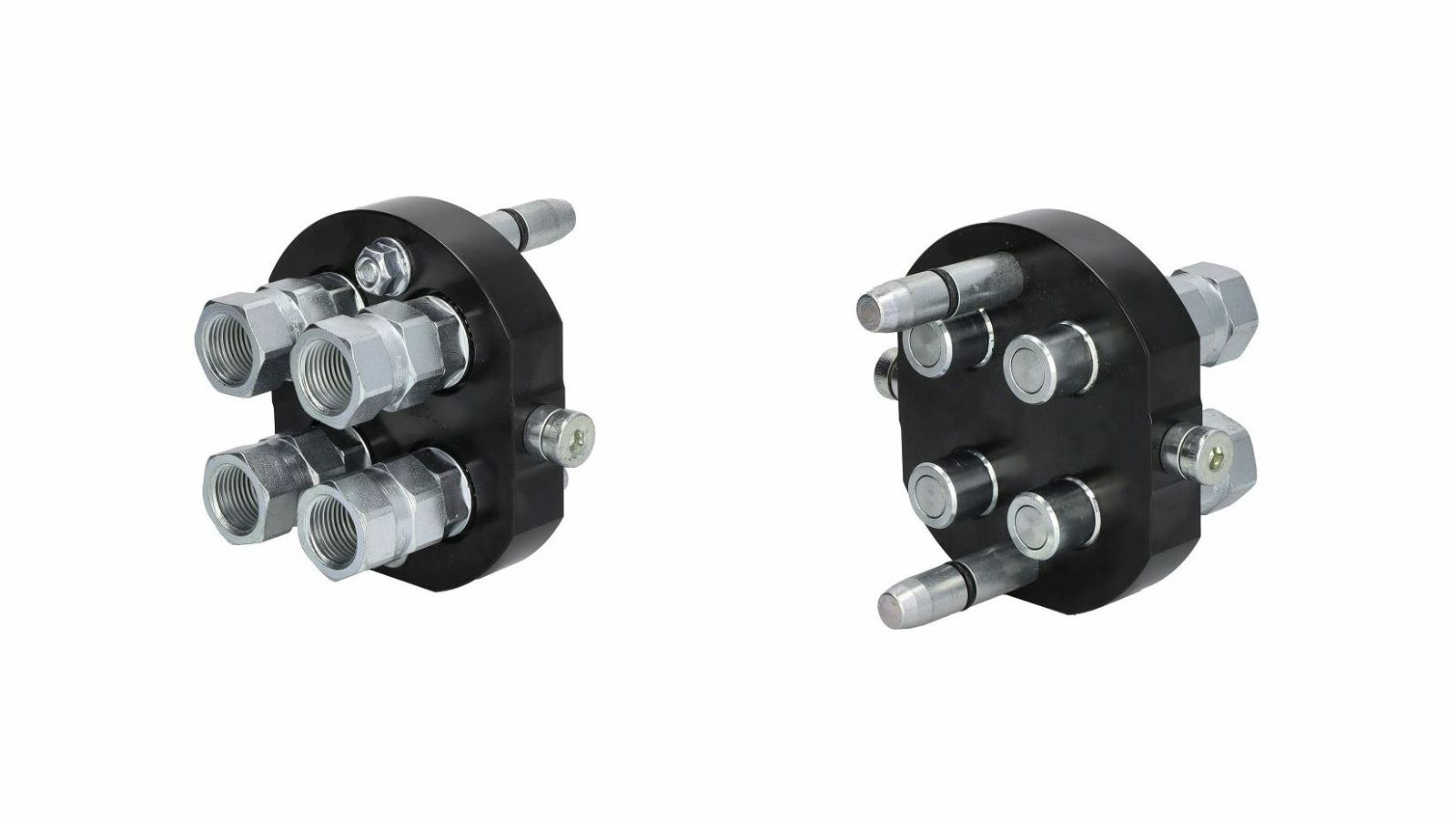

Faster 2P506 multi-konektor 4X3/8` BSPP utikač
Marka: Faster
Referentni broj: 2P506-4-12GMC
Tehnički parametri:
Nazivni protok: 70 l/min. / 40L
Tip: Utikač
Površinska zaštita: premaz bez kroma(VI)
Širina/veličina: DN10 (4x)
Radni tlak: 250 (bar)
Priključni navoj: 1/2” BSP
Hidraulički spojevi: 4 kom.
-----------
Brand
Faster
Can be coupled under residual pressure
no
Certified according to ISO
yes
Connection type
internal thread
Coupling situation
cannot be coupled under residual pressure
Coupling type
flat sealing
Electrical connections
without
Material housing
aluminum/steel
Max. flow rate (l/min)
40
Nominal diameter (mm)
10
Operating pressure (bar)
250
Sealing
60° inner cone
System
Faster
Thread internal (inches)
G 1/2
Type
P506
Version multi-coupling
4-fold
Weight (kg)
1,409
