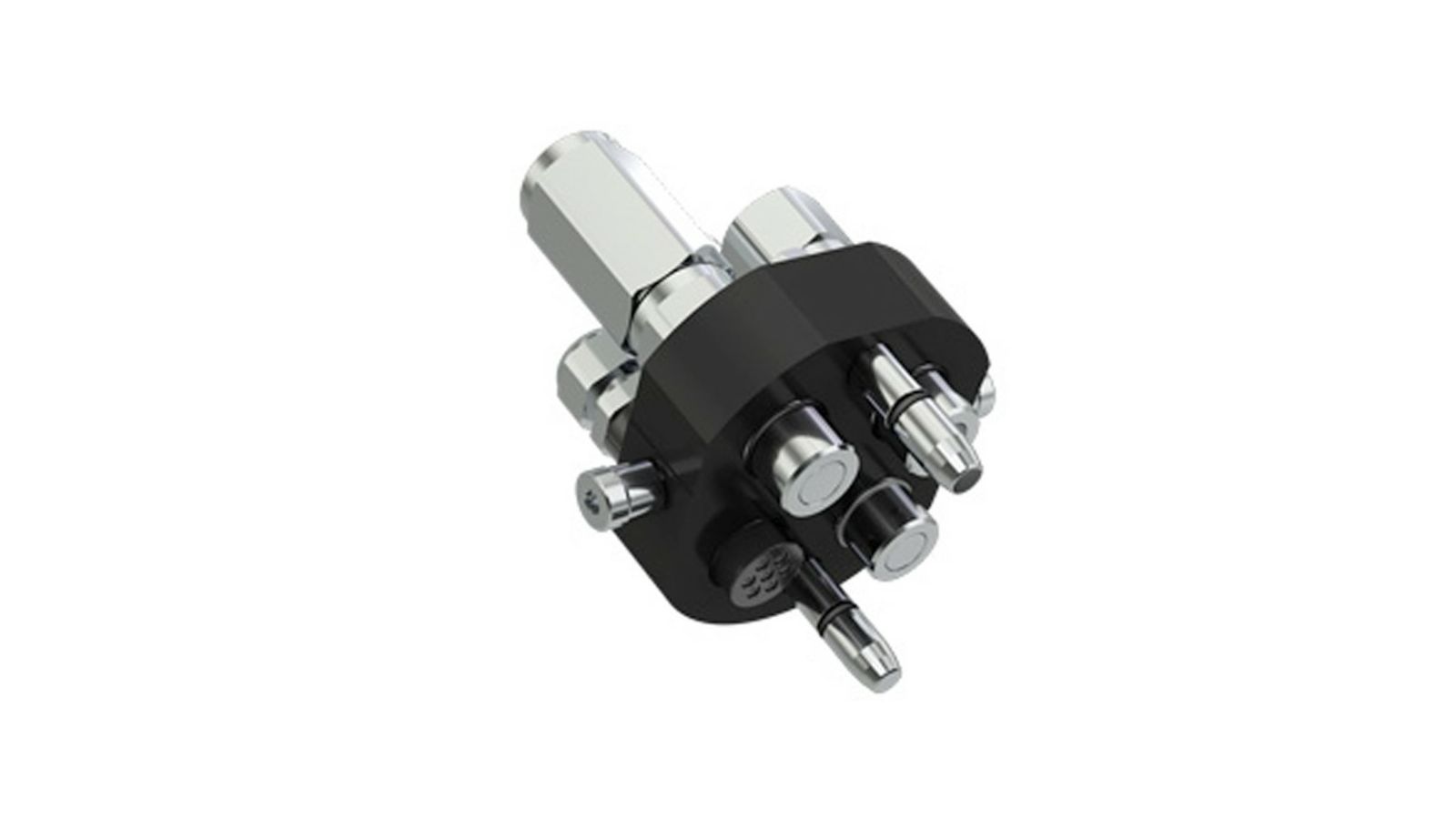

HIDRAULIČNA SPOJNICA MULTIGREASE, MUŠKA, TIP P508, 1/2inch 70l/min. - FASTER

3P508-A-3-A MC
3P508-A-3-AMC
3P508A3AMC
62300622900

ŽENSKI DIO:
3P508-A-2-1-A FC
3P508-A-2-1-AFC
3P508A21AFC

----------------

2 x Couplings 1/2":
BSPP 1/2" FEMALE - ISO 1179-1

Flow Rate:
70 (l/min) at 0.2 MPa

1 x Coupling 1/2":
BSPP 1/8" FEMALE - ISO 1179-1

Flow Rate:
70 (l/min) at 0.2 MPa

1 Electrical Contact :
7 Pins

Seals:
NBR

* No. 1 greasing line 1/2" whit shunt, Female 1/8" BSPP thread for both inlet and outlet line

2x coupling with 1/2 inch, 1x coupling with 1/8 inch, 1x electric contact

Brand
Faster

Can be coupled under residual pressure
yes

Certified according to ISO
yes

Connection type
internal thread

Coupling situation
can be coupled under residual pressure

Coupling type
flat sealing

Electrical connections
7 PIN

Material housing
aluminum/steel

Max. flow rate (l/min)
70

Nominal diameter (mm)
12,5

Operating pressure (bar)
250

Sealing
60° inner cone

System
Faster

Thread internal (inches)
G 1/8
G 1/2

Type
P508

Version multi-coupling
4-fold

Weight (kg)
2,628
