3P508-A-2-1-A FC
3P508-A-2-1-AFC
3P508A21AFC
62300623000
MUŠKI DIO:
3P508-A-3-A MC
3P508-A-3-AMC
3P508A3AMC
--------------
2 x Couplings 1/2":
BSPP 1/2" FEMALE - ISO 1179-1
Flow Rate:
70 (l/min) at 0.2 MPa
1 x Coupling 1/2":
BSPP 1/8" FEMALE - ISO 1179-1
Flow Rate:
70 (l/min) at 0.2 MPa
1 Electrical Contact :
7 Pins
Seals:
NBR
* No. 1 greasing line 1/2", Female 1/8" BSPP thread adaptor This part number is equipped with a shorter lever (R250 mm instead of R318 mm)

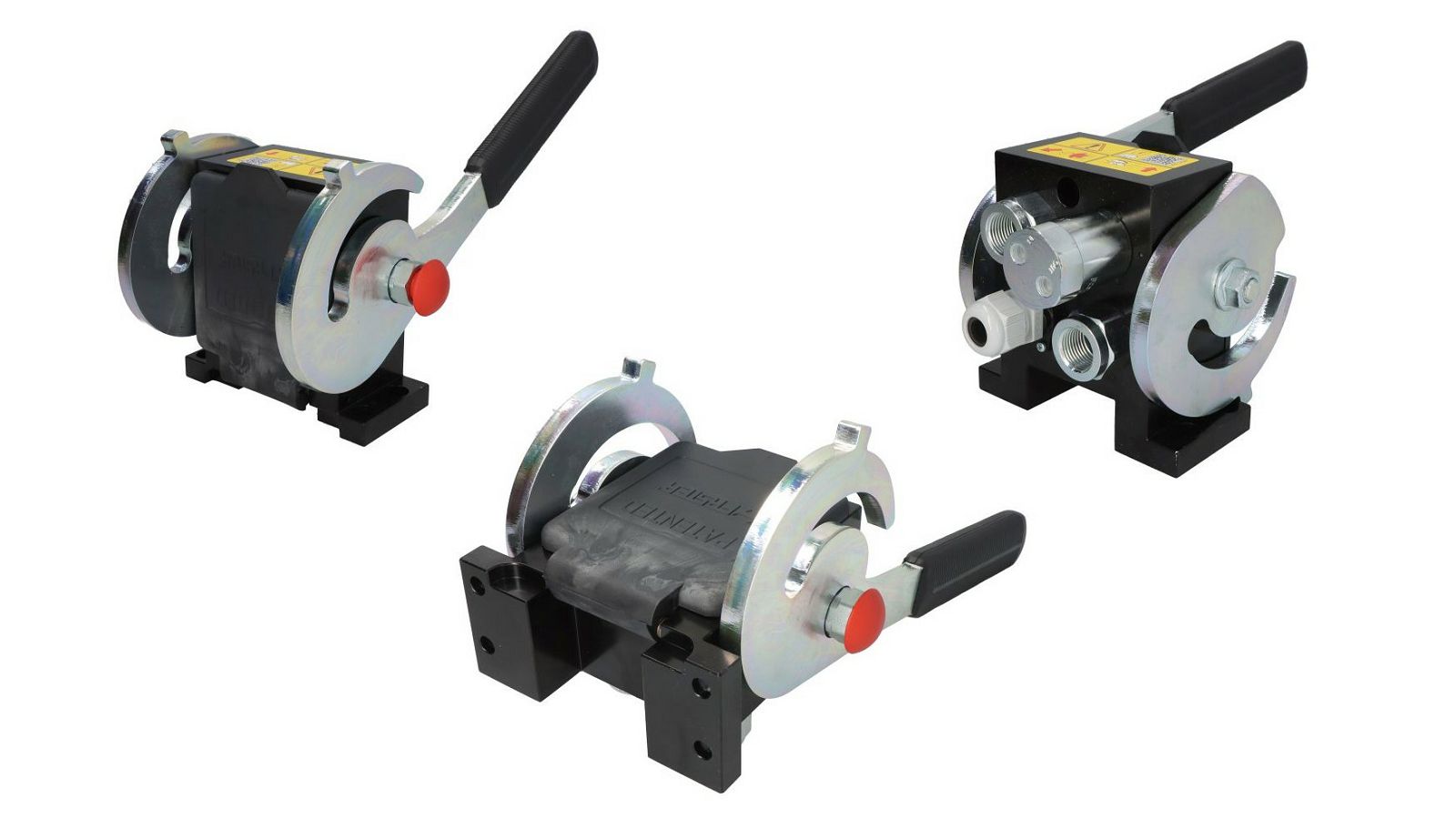

2x coupling with 1/2 inch, 1x coupling with 1/8 inch, 1x electric contact
Brand
Faster
Certified according to ISO
yes
Connection type
internal thread
Coupling type
flat sealing
Electrical connections
7 PIN
Material housing
aluminum/steel
Max. flow rate (l/min)
70
Nominal diameter (mm)
12,5
Operating pressure (bar)
250
Thread internal (inches)
G 1/8
G 1/2
Type
P508
Version multi-coupling
4-fold
Weight (kg)
4,896
