HIDRAULIČNI CILINDAR 40x30x200, L-326, 3/8" BSP

HT02300200
61100126600

---------------

Single acting plunger cylinder 40x30x200 without attachment

Working pressure: 180 bar
Max pressure: 250 bar
Temperature: -25°C; +80 °C
Chrome rod: stem UNI C45
Chrome plating thickness: Chrome 25 micron +/- 5
Tube: Stem DIN 2393 - ISO H9
Maximum speed: 0.5 m/s

-------------

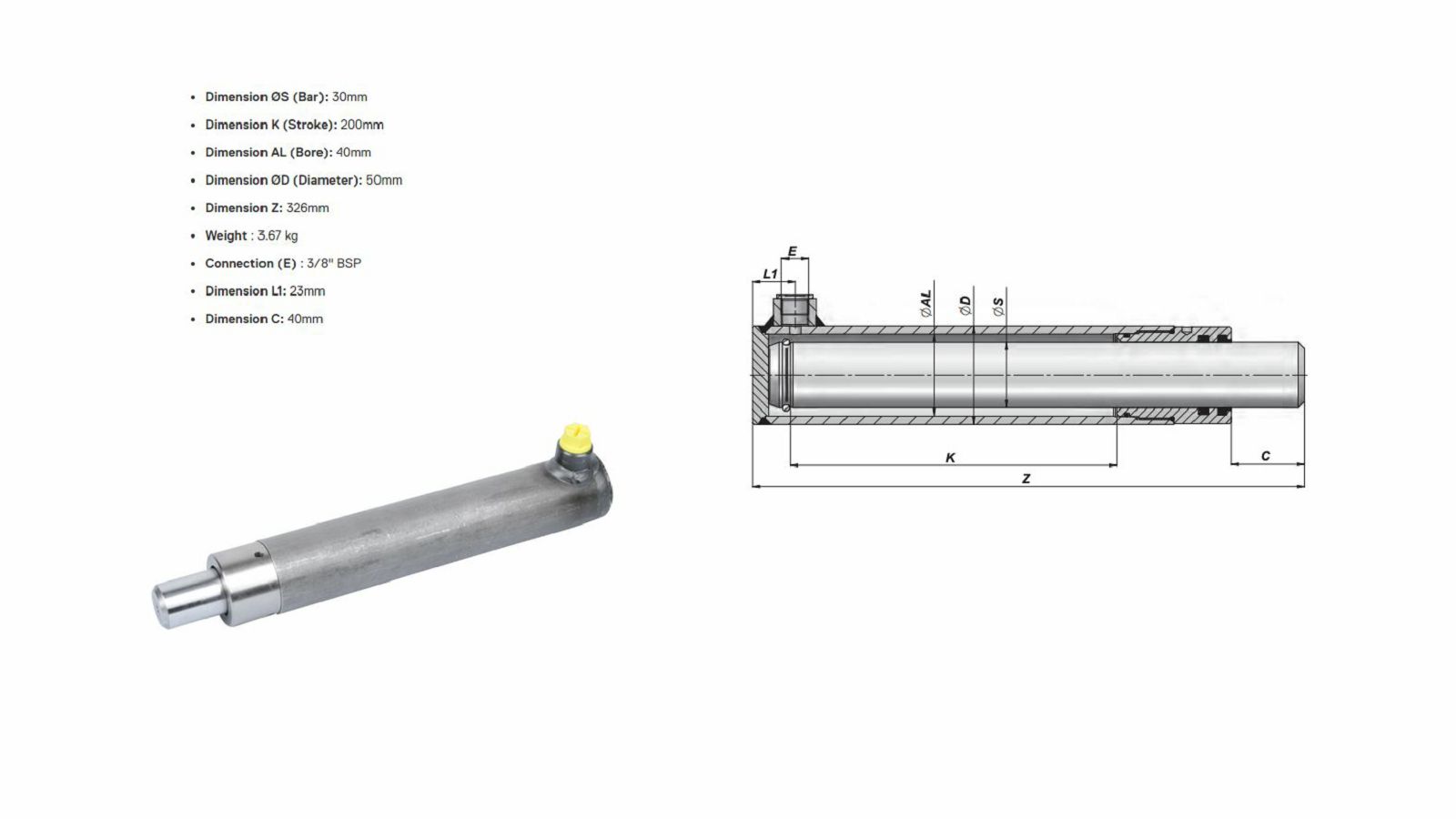

Technical specification:

Dimension OS (Bar): 30mm
Dimension K (Stroke): 200mm
Dimension AL (Bore): 40mm
Dimension OD (Diameter): 50mm
Dimension Z: 326mm
Weight : 3.67 kg
Connection (E) : 3/8" BSP
Dimension L1: 23mm
Dimension C: 40mm
