HT03400300
61100127100
Single acting plunger cylinder 50x40x300 without attachment
Working pressure: 180 bar
Max pressure: 250 bar
Temperature: -25°C; +80 °C
Chrome rod: stem UNI C45
Chrome plating thickness: Chrome 25 micron +/- 5
Tube: Stem DIN 2393 - ISO H9
Maximum speed: 0.5 m/s
------------

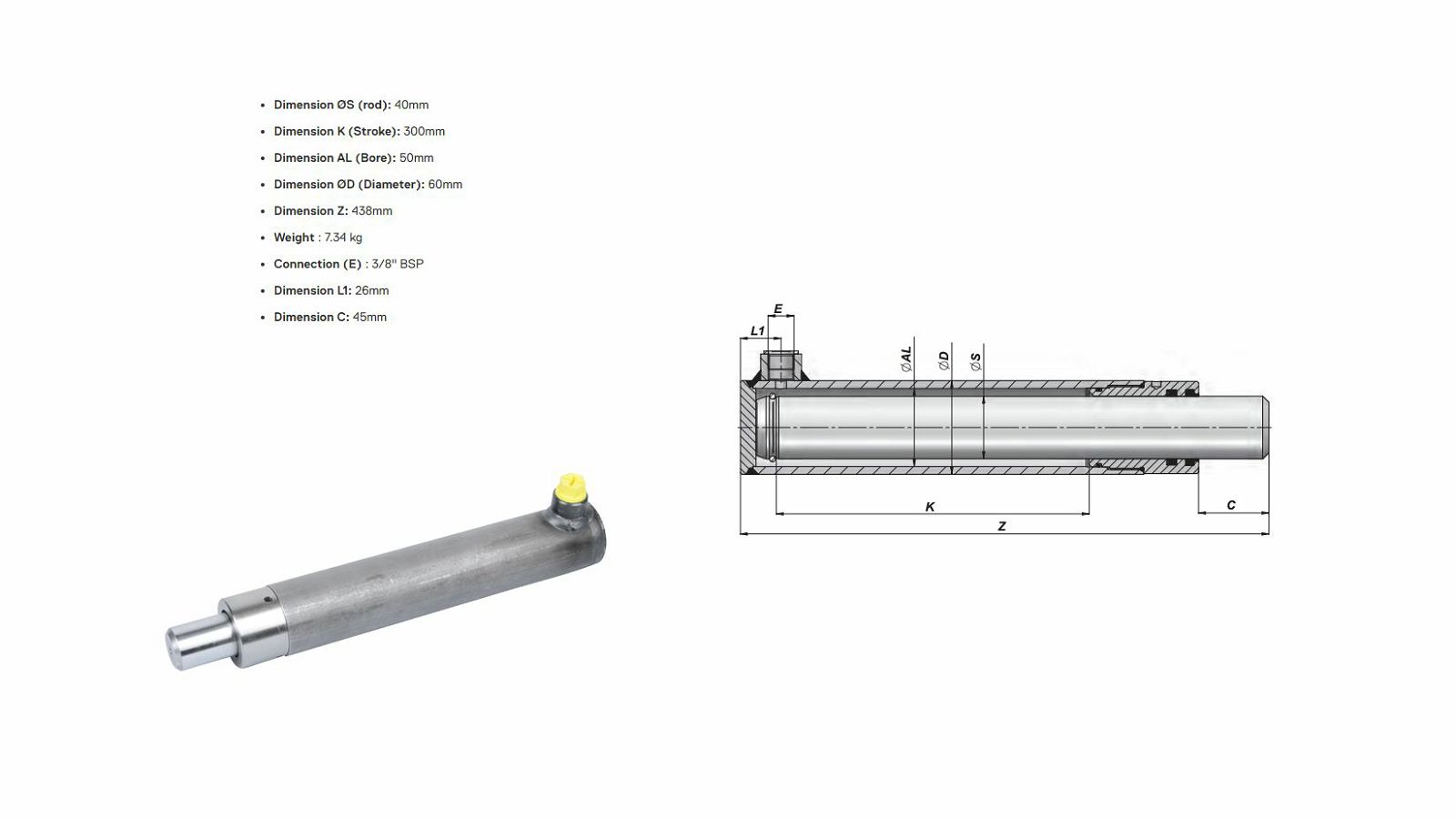

Technical specifications:
Dimension OS (rod): 40mm
Dimension K (Stroke): 300mm
Dimension AL (Bore): 50mm
Dimension OD (Diameter): 60mm
Dimension Z: 438mm
Weight : 7.34 kg
Connection (E) : 3/8" BSP
Dimension L1: 26mm
Dimension C: 45mm
