HT04500600
61100127800
Single acting plunger cylinder 60x50x600 without attachment
Working pressure: 180 bar
Max pressure: 250 bar
Temperature: -25°C; +80 °C
Chrome rod: stem UNI C45
Chrome plating thickness: Chrome 25 micron +/- 5
Tube: Stem DIN 2393 - ISO H9
Maximum speed: 0.5 m/s
-----------

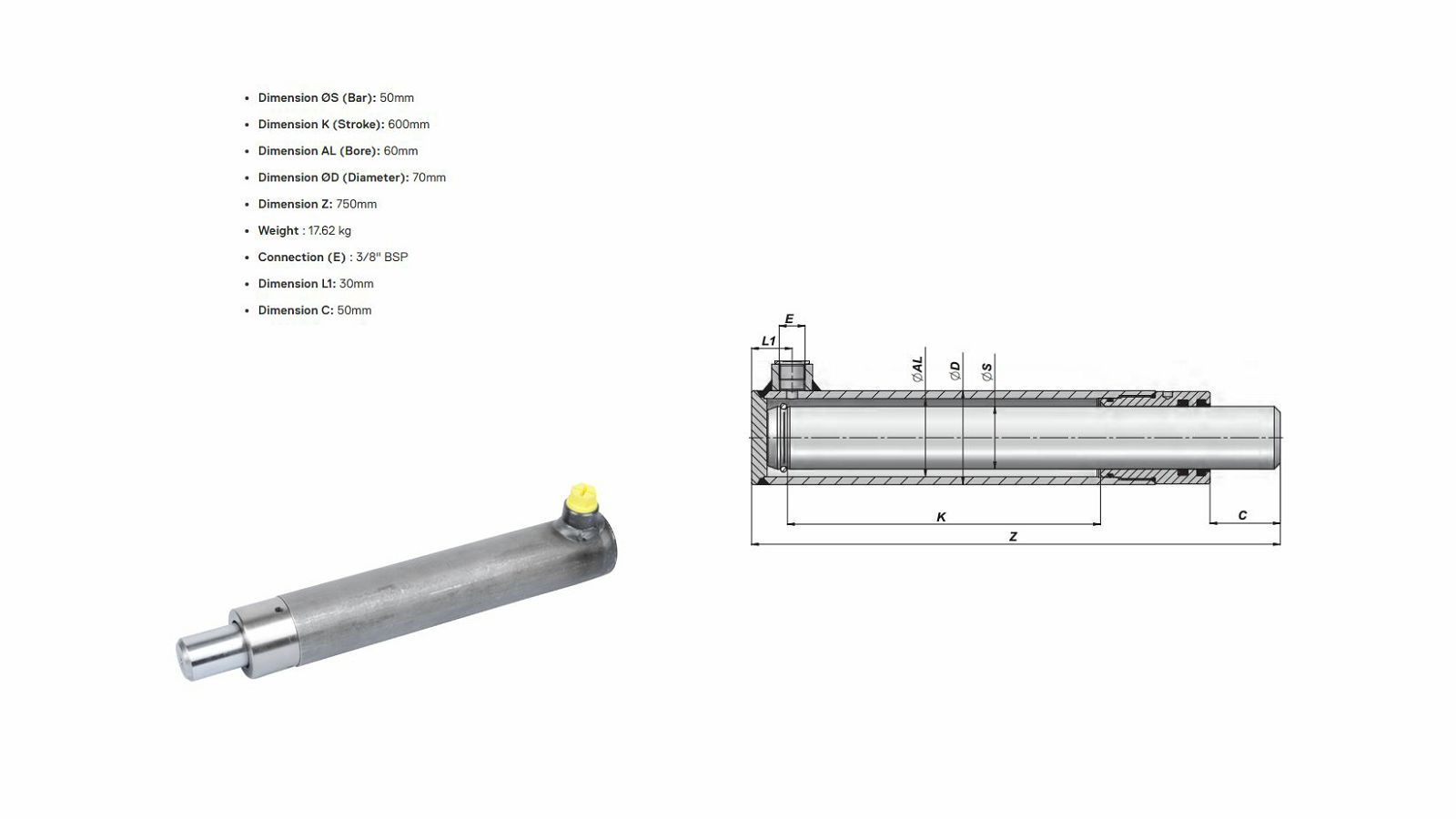

Technical specification:
Dimension OS (Bar): 50mm
Dimension K (Stroke): 600mm
Dimension AL (Bore): 60mm
Dimension OD (Diameter): 70mm
Dimension Z: 750mm
Weight : 17.62 kg
Connection (E) : 3/8" BSP
Dimension L1: 30mm
Dimension C: 50mm
