HM01250400
61100128400
-----------

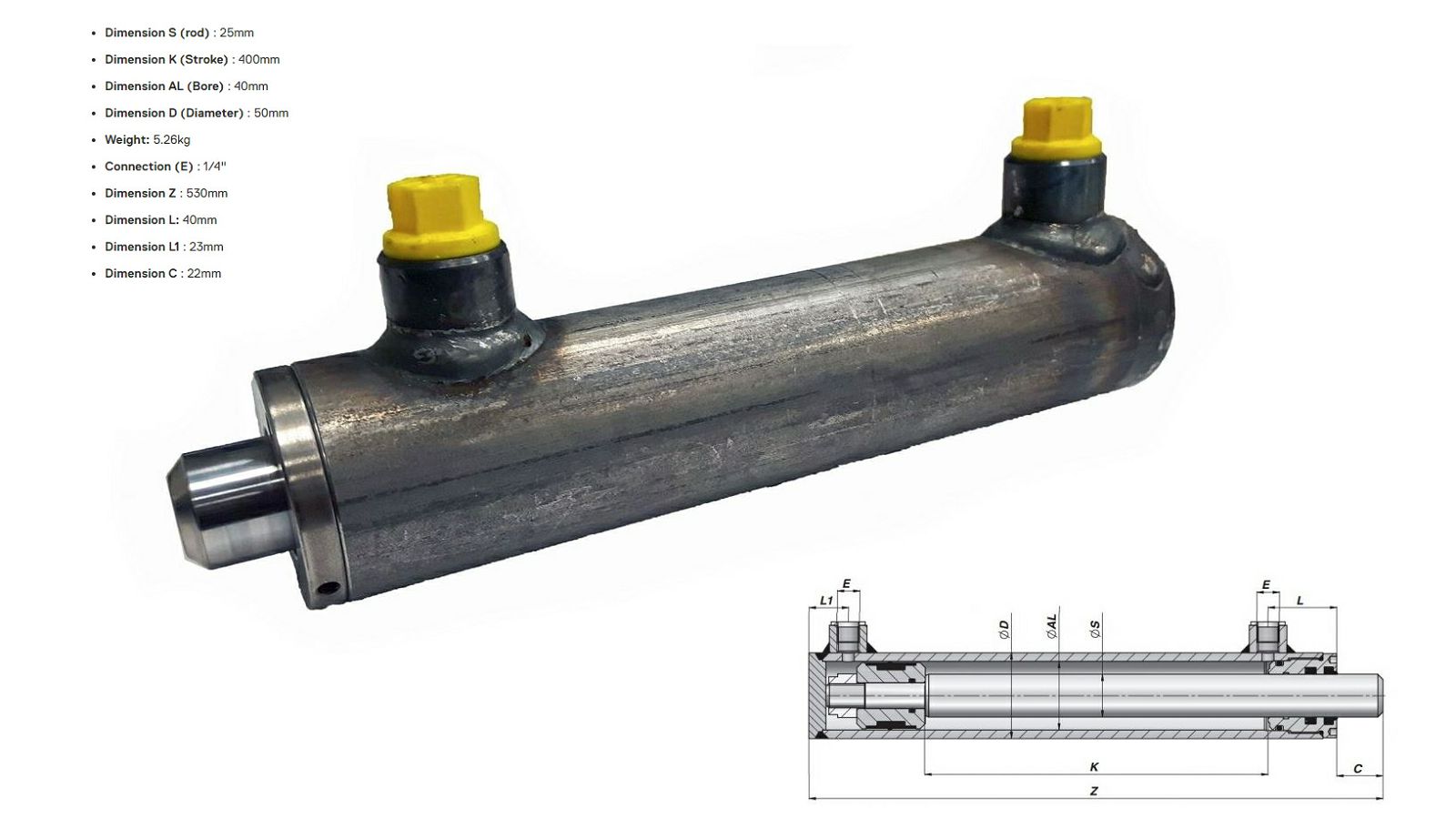

Double acting cylinder 40x25x400 without attachment
Technical features:
Working pressure: 180 bar
Max pressure: 210 bar
Temperature: -25°C to +80°C
Chrome rod: stem UNI C45
Chrome plating thickness: chrome 25 micron +/- 5
Tube: stem DIN 2393 - ISO H9
Maximum speed: 0.5 m/s
-------------
Technical specifications:
Dimension S (rod) : 25mm
Dimension K (Stroke) : 400mm
Dimension AL (Bore) : 40mm
Dimension D (Diameter) : 50mm
Weight: 5.26kg
Connection (E) : 1/4"
Dimension Z : 530mm
Dimension L: 40mm
Dimension L1 : 23mm
Dimension C : 22mm
