HM01250500
61100128500
-----------

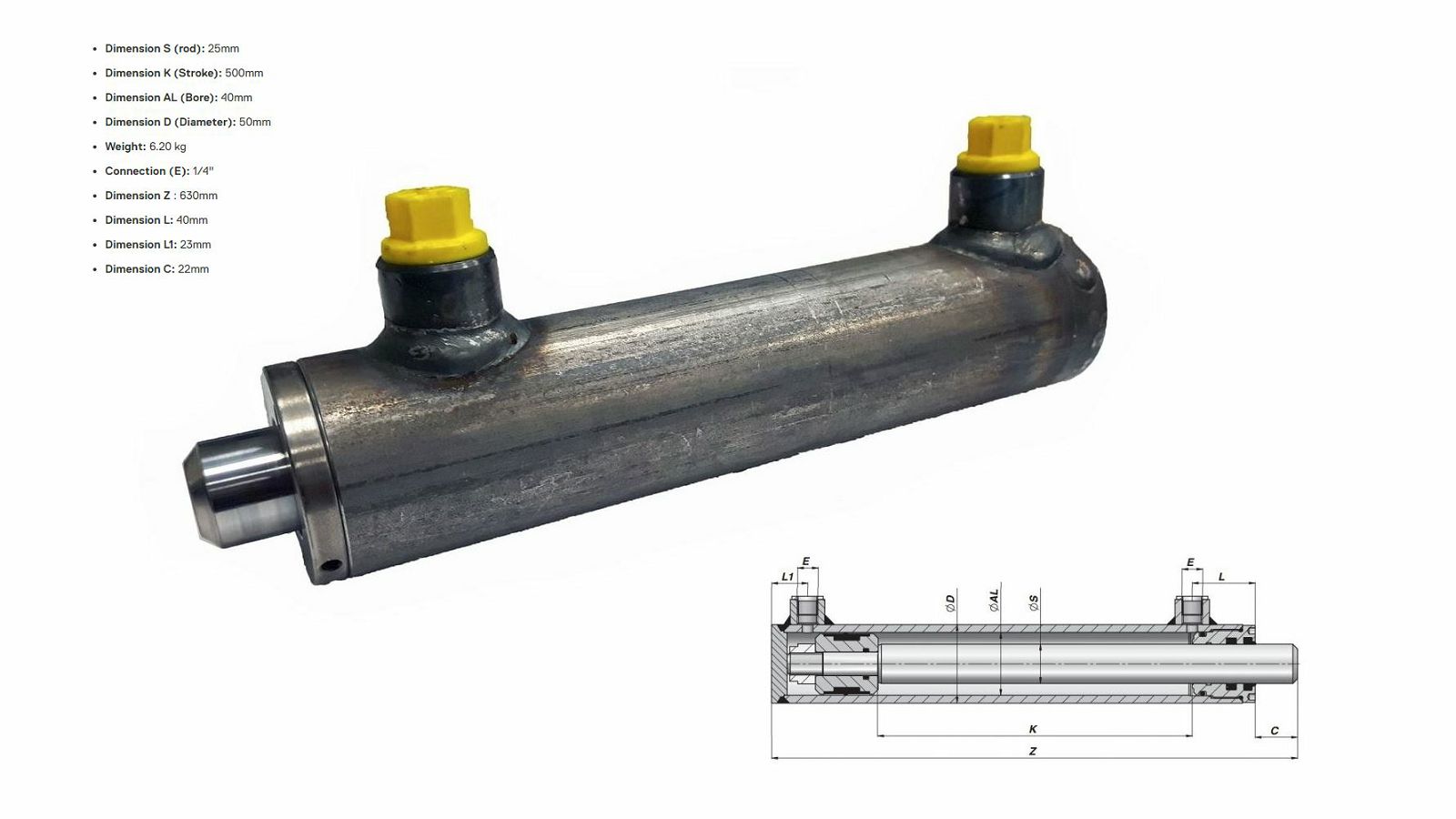

Double acting cylinder 40x25x500 without attachment
Technical features:
Working pressure: 180 bar
Max pressure: 210 bar
Temperature: -25°C to +80°C
Chrome rod: stem UNI C45
Chrome plating thickness: chrome 25 micron +/- 5
Tube: stem DIN 2393 - ISO H9
Maximum speed: 0.5 m/s
-----------
Technical specifications:
Dimension S (rod): 25mm
Dimension K (Stroke): 500mm
Dimension AL (Bore): 40mm
Dimension D (Diameter): 50mm
Weight: 6.20 kg
Connection (E): 1/4"
Dimension Z : 630mm
Dimension L: 40mm
Dimension L1: 23mm
Dimension C: 22mm
