HIDRAULIČNI CILINDAR, DUAL, FI-25mm, 40x25x600, 1,4", 210Bar

HM01250600
61100128600

-----------

Double acting cylinder 40x25x600 without attachment

Technical features:

Working pressure: 180 bar
Max pressure: 210 bar
Temperature: -25°C to +80°C
Chrome rod: stem UNI C45
Chrome plating thickness: chrome 25 micron +/- 5
Tube: stem DIN 2393 - ISO H9
Maximum speed: 0.5 m/s

------------

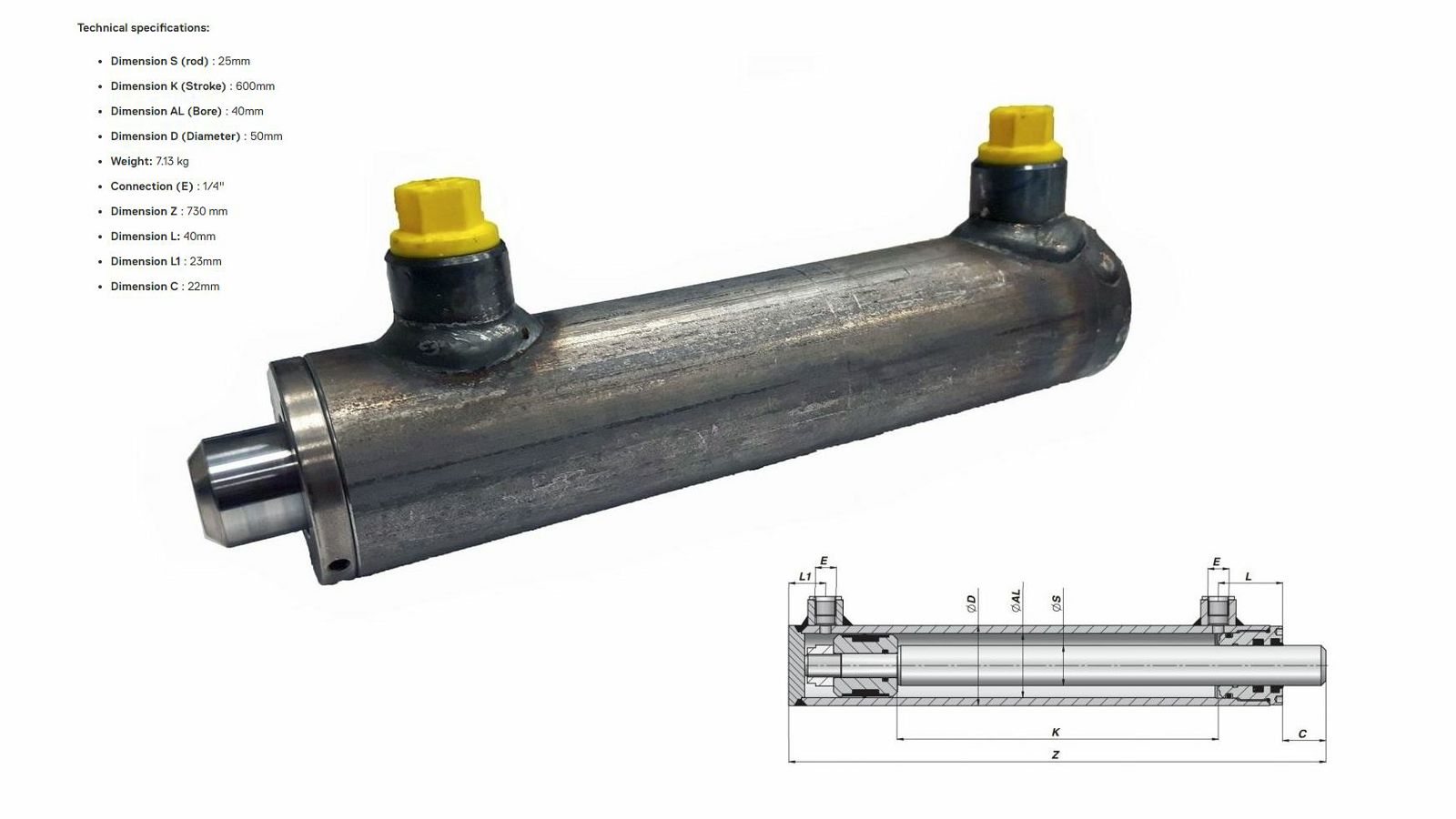

Technical specifications:

Dimension S (rod) : 25mm
Dimension K (Stroke) : 600mm
Dimension AL (Bore) : 40mm
Dimension D (Diameter) : 50mm
Weight: 7.13 kg
Connection (E) : 1/4"
Dimension Z : 730 mm
Dimension L: 40mm
Dimension L1 : 23mm
Dimension C : 22mm
