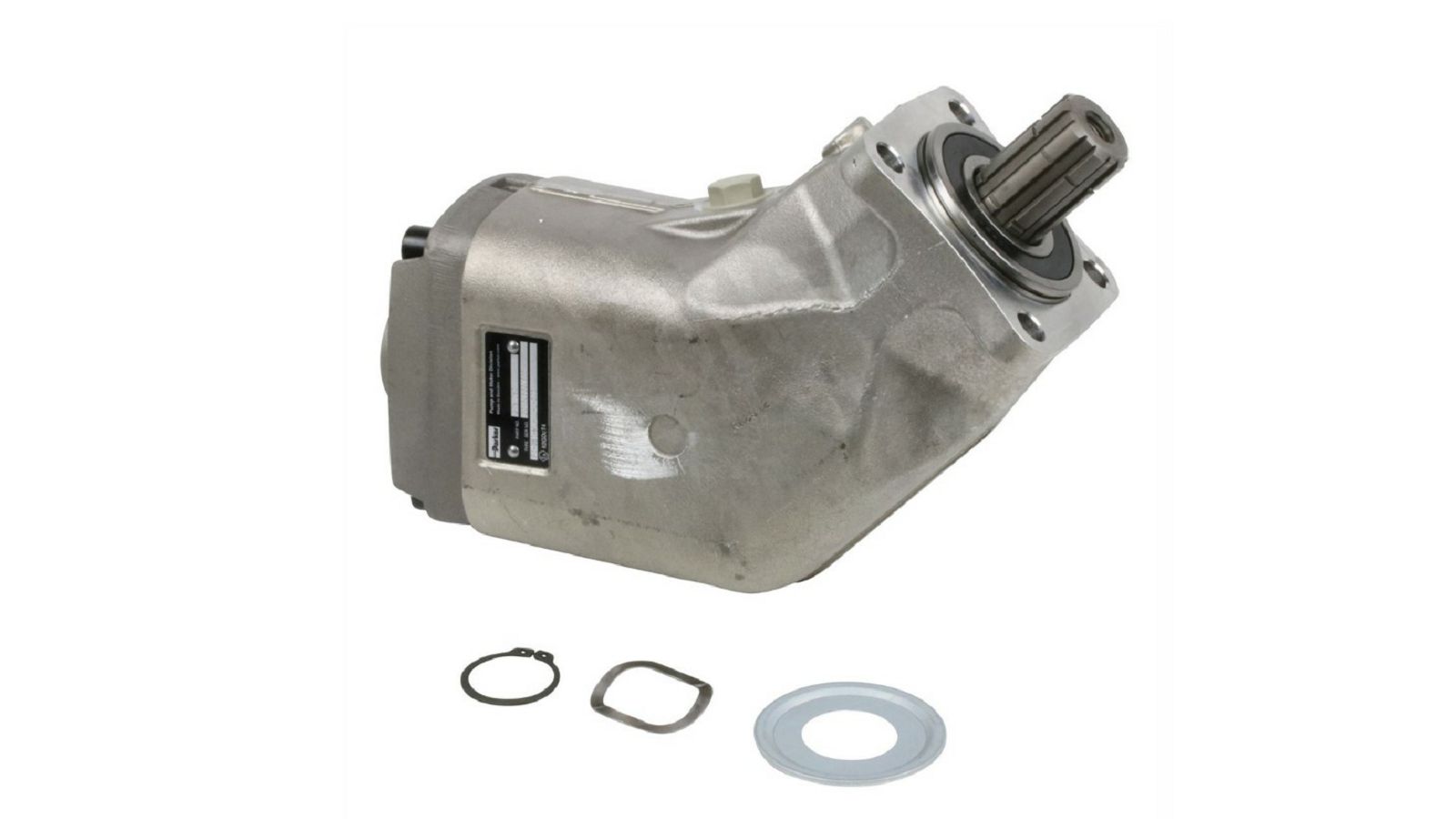

HIDRAULIČNI MOTOR F1-41, 40,9cm3/r - PARKER

3781740
F1-41
20100101040 - OMFB
201-001-01040
SAM-040W-N-DL4-L35-S3G-100 - SUNFAB
SF36636
61100172800

-------------

Assembly flange drive
4-hole 80x80 mm

Brand
Parker

Displacement (cm3/r)
40,9

Leakage oil connection
1/2 inch internal thread

Material housing
aluminum

Max. pressure (bar)
350

Max. revolution (rpm)
2700

Max. torque (Nm)
227

Oil connection A
3/4 inch internal thread

Oil connection B
3/4 inch internal thread

Operating pressure (bar)
250

Power (kW)
27

Specification drive
shaft 8x32x36

Type
F1-41

Weight (kg)
8,5

o shaft/hub (mm)
34,9
