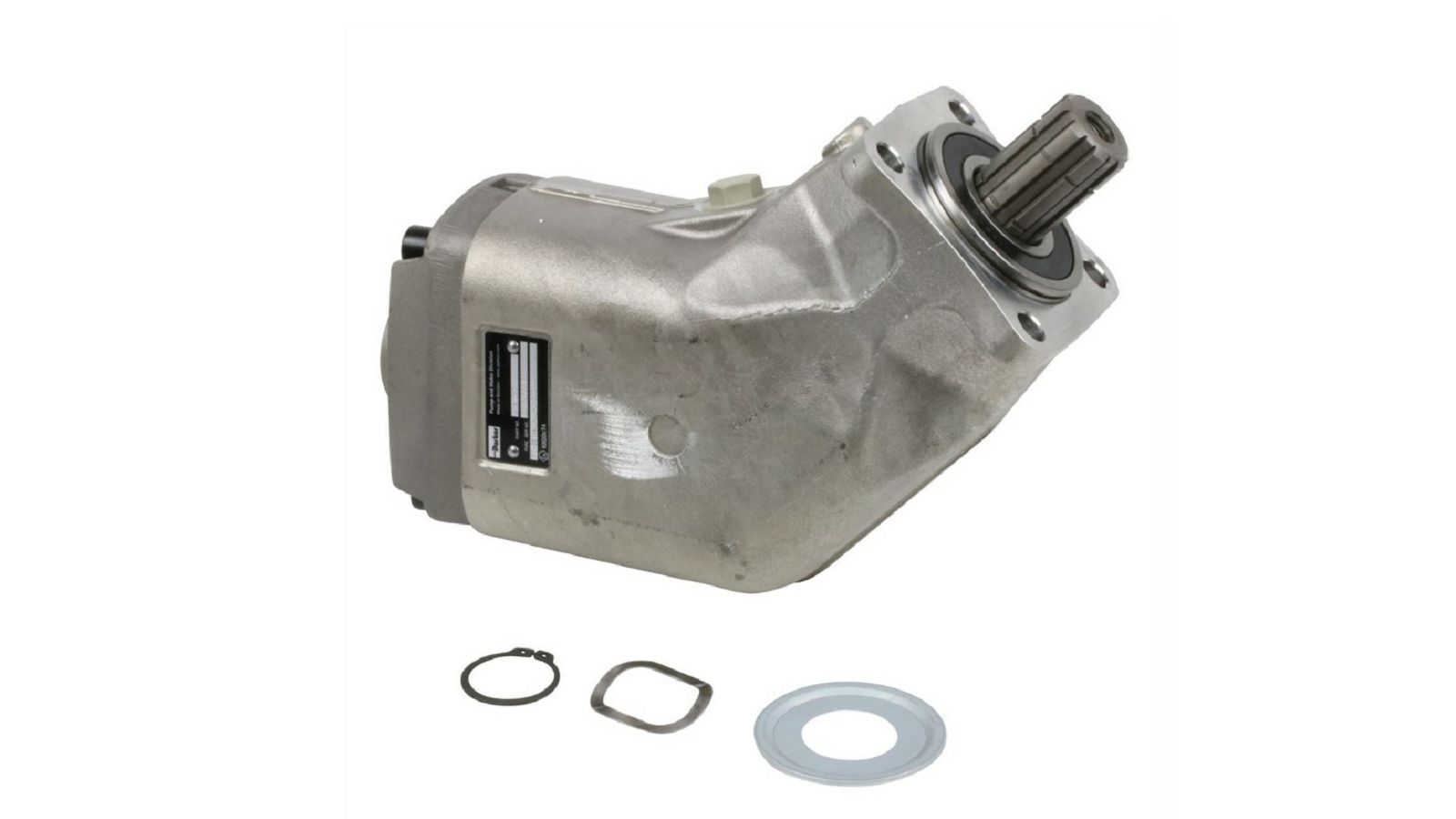

HIDRAULIČNI MOTOR F1-81, 81,6cm3/r - PARKER

3781780
61100173100

ALTERNATIVA:
20100101084 - OMFB
201-001-01084
SF36640 - SUNFAB SAM-084W-N-DL4-L35-S3G-100

------------

Assembly flange drive
4-hole 80x80 mm

Brand
Parker

Displacement (cm3/r)
81,6

Leakage oil connection
1/2 inch internal thread

Material housing
aluminum

Max. pressure (bar)
350

Max. revolution (rpm)
2000

Max. torque (Nm)
453

Oil connection A
1 inch internal thread

Oil connection B
1 inch internal thread

Operating pressure (bar)
250

Power (kW)
41

Specification drive
shaft 8x32x36

Type
F1-81

Weight (kg)
12,5

o shaft/hub (mm)
34,9
