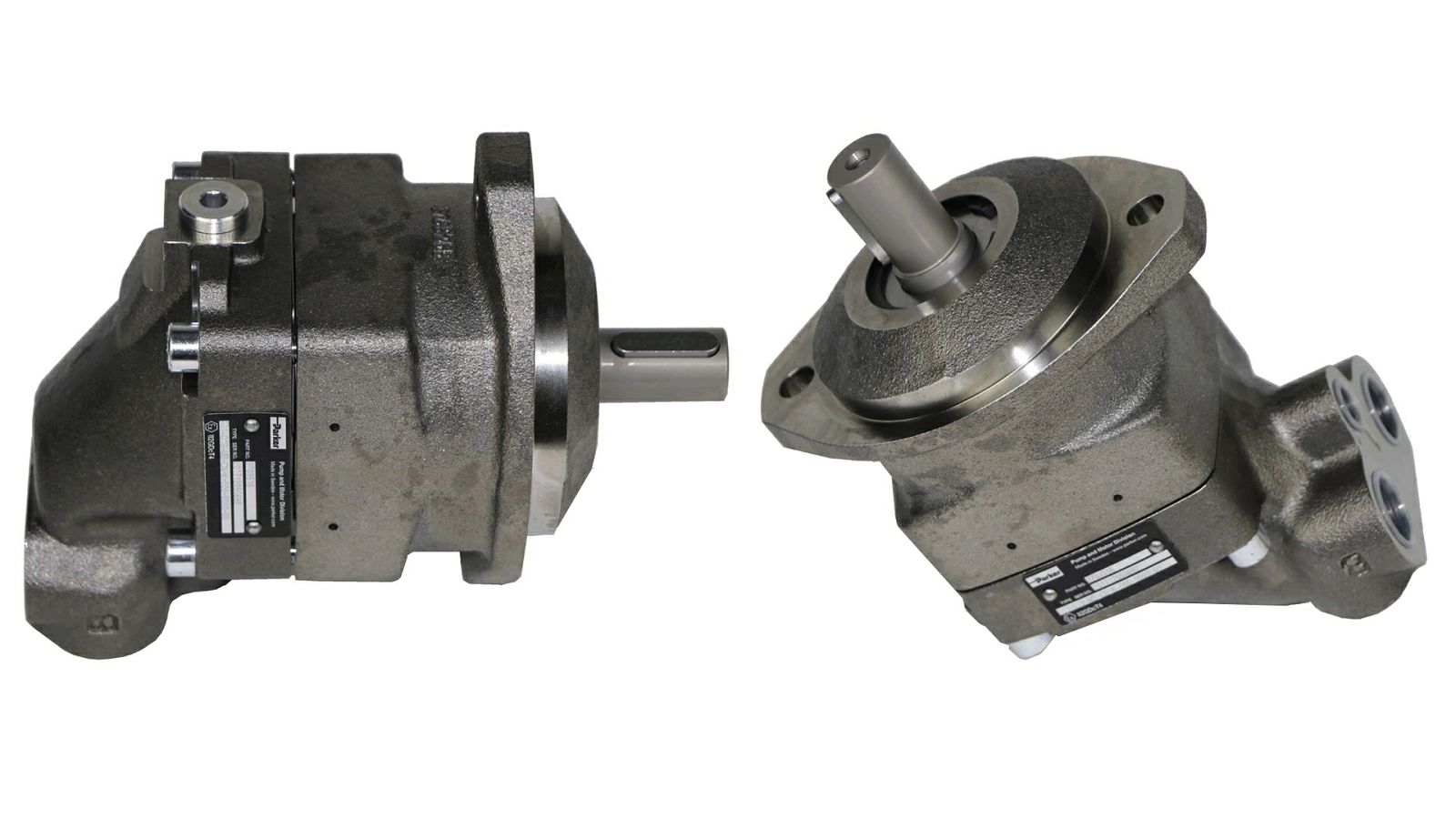

HIDRAULIČNI MOTOR F11-019, 19cm3/r - PARKER

3703516
F11-019-MB-CN-K-000
61100177500

------------

with Viton sealing

Assembly flange drive
2-hole 140 mm

Brand
Parker

Displacement (cm3/r)
19

Leakage oil connection
3/8 inch internal thread

Material housing
cast steel

Max. pressure (bar)
420

Max. revolution (rpm)
8100

Max. torque (Nm)
95

Oil connection A
3/4 inch internal thread

Oil connection B
3/4 inch internal thread

Operating pressure (bar)
350

Power (kW)
32

Specification drive
shaft cylindrical (metric) with feather key

Type
F11-019

Weight (kg)
11,459

o shaft/hub (mm)
25
