3721560
F12-030-MF-IV-K-000-0000-P0
61100416300
ALTERNATIVA: 24204713025, 24204713034 - OMFB
-------------

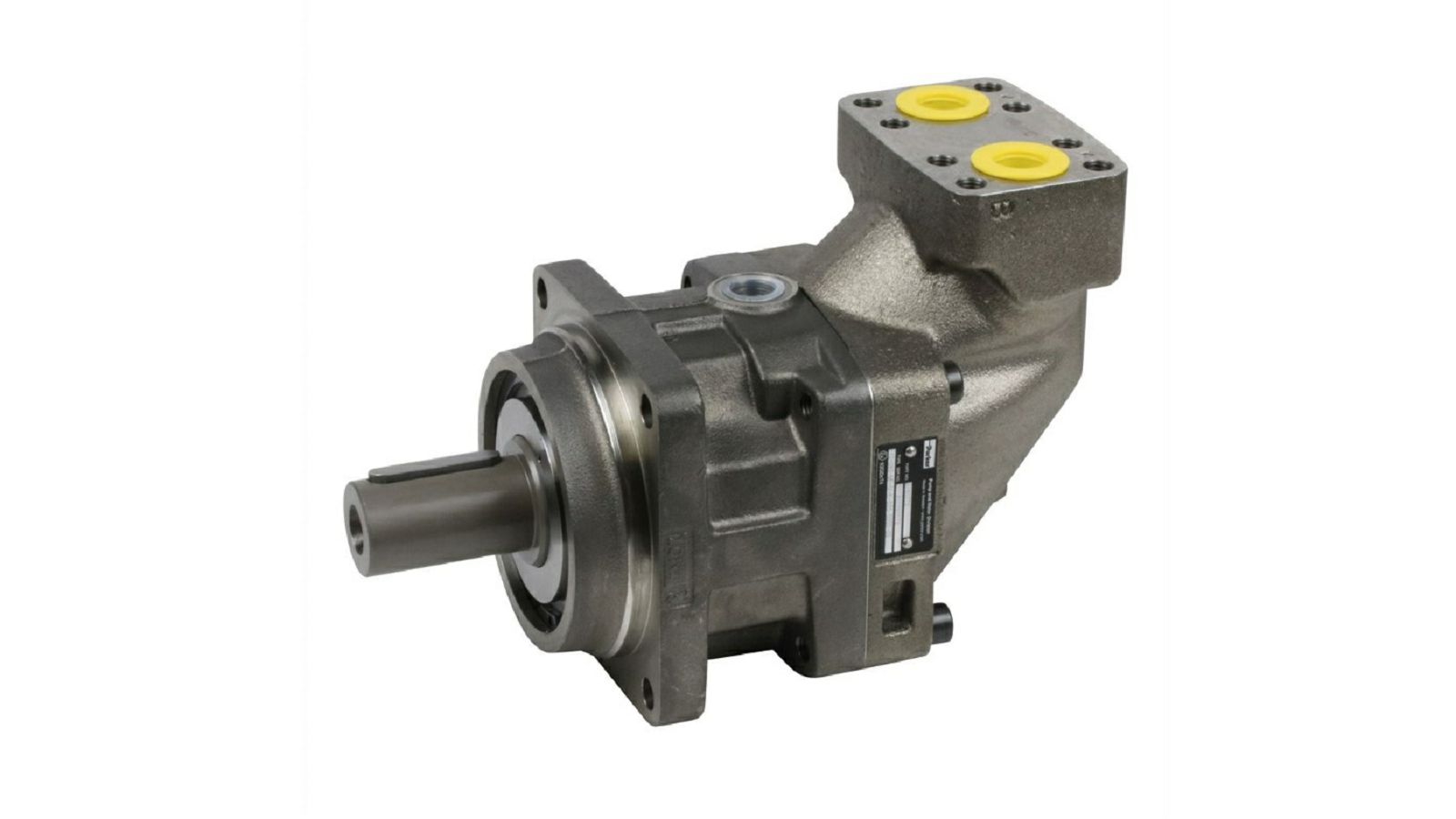

bent axis motor with constant displacement and connection option for a speed sensor
Assembly flange drive
4-hole 88x88 mm
Brand
Parker
Displacement (cm3/r)
30
Leakage oil connection
M 18x1.5 internal thread
Material housing
cast steel
Max. oil flow (l/min)
201
Max. pressure (bar)
480
Max. revolution (rpm)
6700
Max. torque (Nm)
47,6
Oil connection A
3/4 inch SAE 6000
Oil connection B
3/4 inch SAE 6000
Operating pressure (bar)
350
Specification drive
shaft cylindrical (metric) with feather key
Type
F12-030
Weight (kg)
12,397
o shaft/hub (mm)
30
