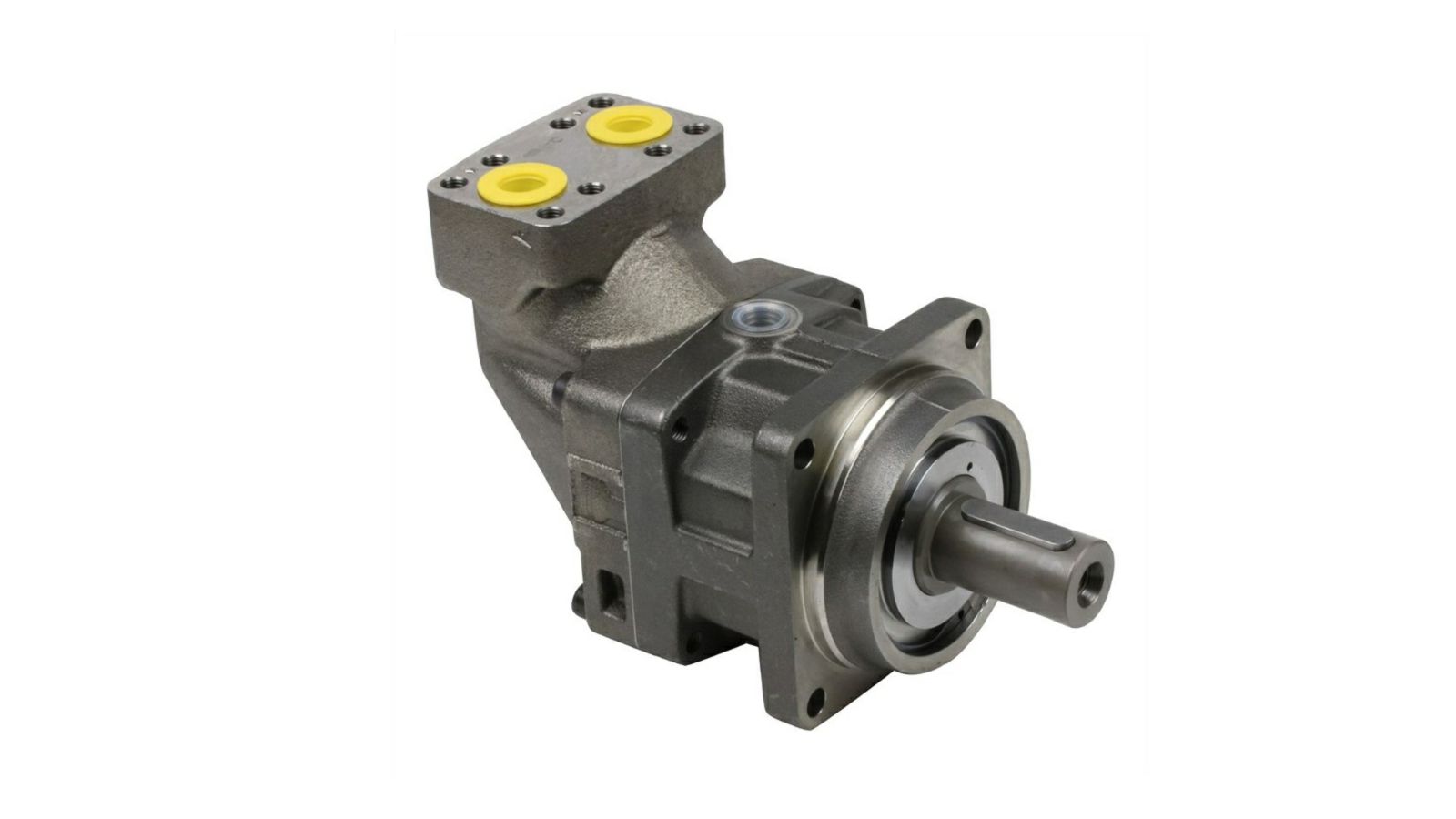

HIDRAULIČNI MOTOR F12-040, 37,0cm3/r - PARKER

3724315
F12-040-MF-IV-K-000-0000-P0
61100478500


ALTERNATIVA: 24404713040, 24404713047 - OMFB

---------------

Assembly flange drive
4-hole 113x113 mm

Brand
Parker

Displacement (cm3/r)
37,0

Leakage oil connection
M 18x1.5 internal thread

Material housing
cast steel

Max. oil flow (l/min)
244

Max. pressure (bar)
480

Max. revolution (rpm)
6100

Max. torque (Nm)
63,5

Oil connection A
3/4 inch SAE 6000

Oil connection B
3/4 inch SAE 6000

Operating pressure (bar)
420

Specification drive
shaft cylindrical (metric) with feather key

Type
F12-040

Weight (kg)
16,624

o shaft/hub (mm)
30
