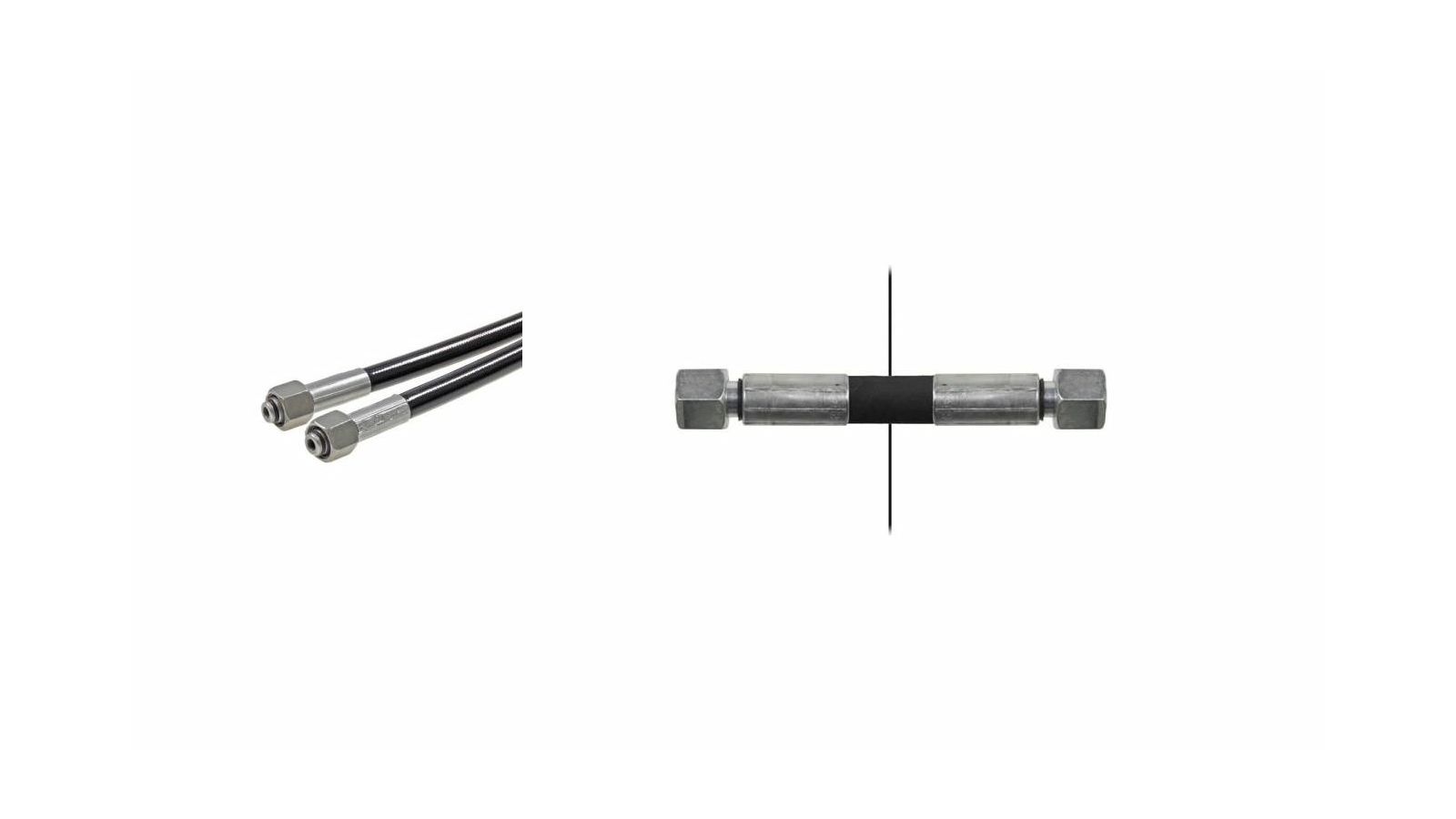

HIDRAULIČNO CRIJEVO PODIZNE RAMPE, M16 x 1,5 - L-680mm - BAR CARGOLIFT

3503014H
01.109141
01109141
101109141
19819141

------------

Weight (kg)
0,186

Length (mm)
680

Brand
Bär Cargolift

Number of layers
1

For o tube A (mm)
10

For o tube B (mm)
10

Width across flats A (mm)
19

Width across flats B (mm)
19

Nominal diameter (mm)
6

Form connection A
straight union nut

Type connection A
DKOL

Form connection B
straight union nut

Type connection B
DKOL

Production series connection A
light

Connection A
M 16x1.5 internal thread

Production series connection B
light

Connection B
M 16x1.5 internal thread

Tube AD series A
10 L

Tube AD series B
10 L

--------------


ZA TIPOVE:
BC602A2V-T
BC601A2V-T
BC603A2V-T
BC502A2V-T
BC601S2V-T
BC602S2V-T
BC603S2V-T
BC502S2V-T
BC1000F2-A3
BC1000F4-A3
BC1500F2-B3
BC1500F4-B3
BC1500F4-B1
BC2000S4-C1
BC2000S4-C4
BC2000S4U-C1
BC1000S4-B1
BC1500S4-B1
BC1500S4-B4
BC1500H42-D3
BC1500H42-H3
BC1500H42-H4
BC1500R42-D3
BC1500R42-D4
BC2000H42-D3
BC2000H42-D4
BC2000H42-G3
BC2000H42-G4
BC2000H42-H3
BC2000H42-H4
BC2000R42-D3
BC2000R42-D4
BC2000R42-G3
BC2000R42-G4
BC1500H42-G1
BC1500H42-G3
BC1500H42-G4
BC2000H42-D1
BC2000H42-H1
BC1500R42-G1
BC1500R42-G3
BC1500R42-G4
BC2000R42-D1
BC2000R41-D1
BC2500R41-D1
BC2000R2T-P1
BC2000R2T-P2
BC1000S4-A3
BC1000S4-A4
BC2000S4A-D4
