0511725039
0120432203
0511625023
0511725021 0511725039 MAN 36.06660.6003 3.15236SP
0511725021 0511725039 R918C04125
0511725028 0511725021
20A22X021MA
36066606003
81066606058
mnr0511625023
88066006017
R918C04125
AZMF-11-022RCB20PG210XX
R918C03675
36.06660.6003 MAN
81.06660.6058 MAN
81066606053
0120.432.201
61100388500

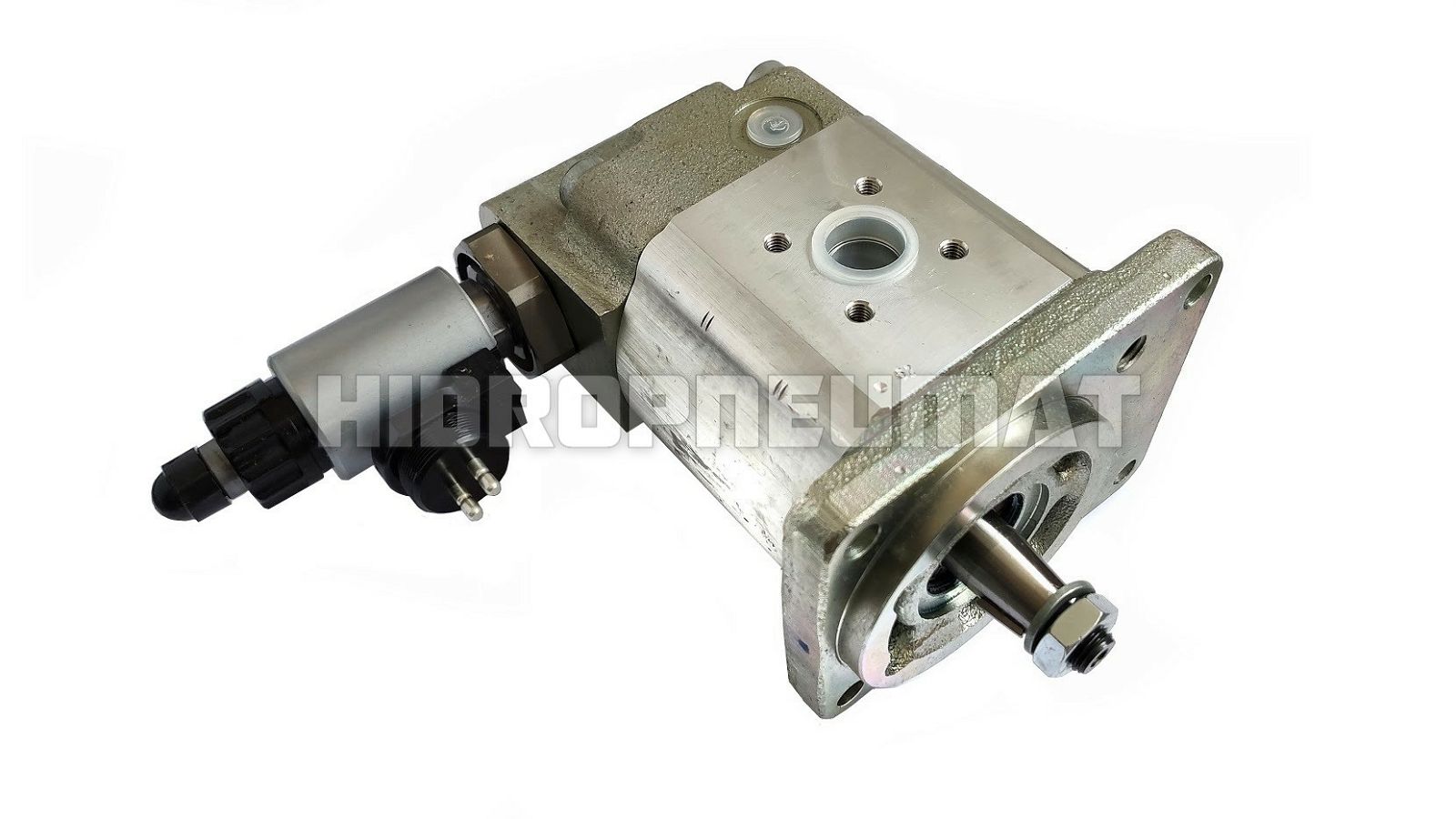

Models:MAN bus cooling fan motor
Gear motor with Comatrol valve,24V
Info 1: 12 V
Max. revolution (rpm): 3000
Displacement (cm3/r): 22,5
FI oil connection A (mm): 15
Mounting oil connection A: hole circle 35 mm M 6
FI oil connection B (mm): 20
Mounting oil connection B: hole circle 40 mm M 6
Direction of rotation: right
Usage: fan drive
Assembly flange drive: 4-hole 100x72 mm M 8
Weight (kg): 6,93
Operating pressure (bar): 180
Brand Bosch-Rexroth
Center FI flange (mm): 80
Manufactured size: F
Max. pressure (bar): 210
Material housing: aluminum
Specification drive: shaft conical 1:5
