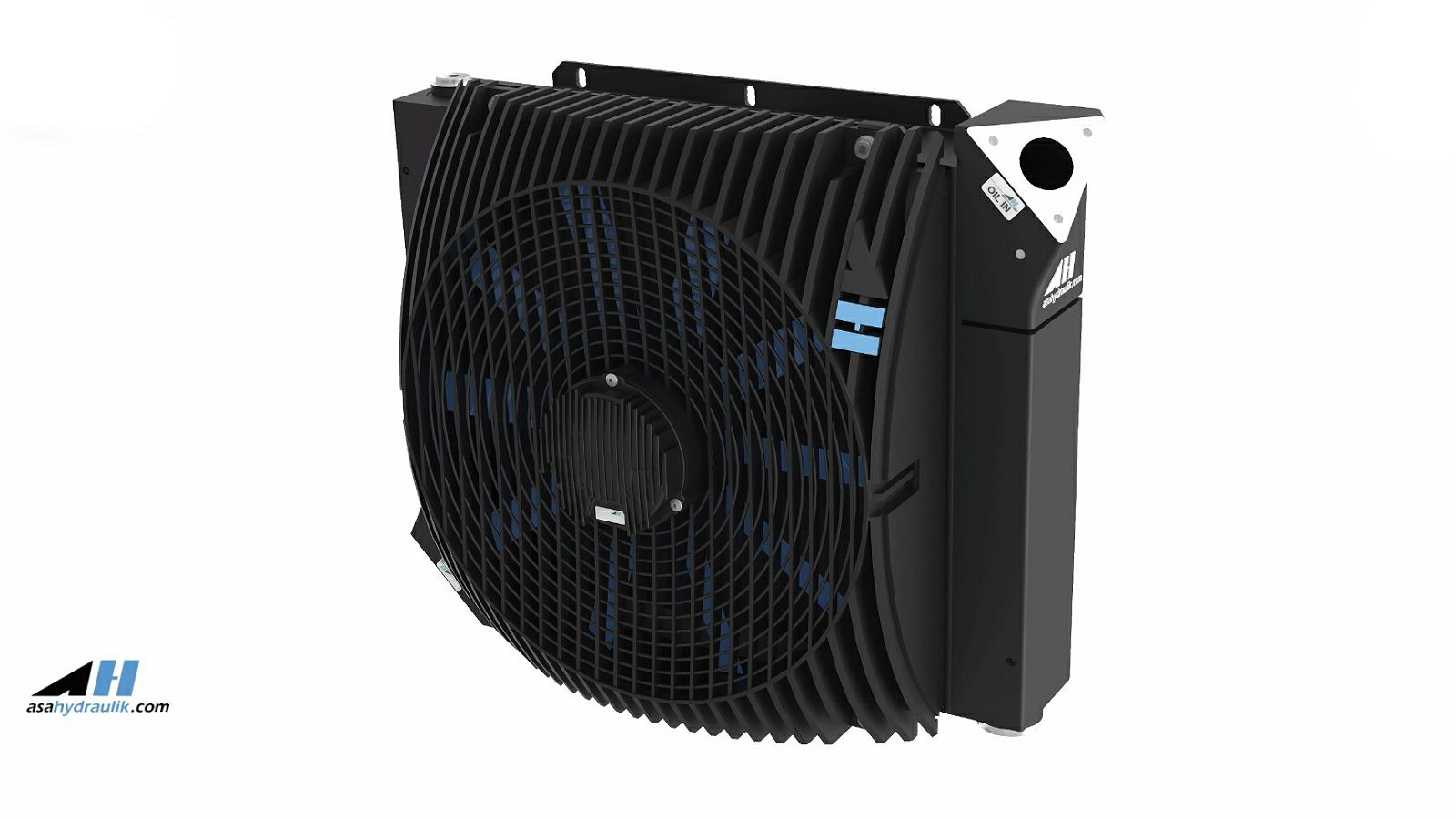

ASA0177AD01BP
61100172300
The integration of a bypass system in the cooling element avoids overstressing the cooler during cold starts (high back pressure due to extremely viscous oil).
This design is also used to divert larger amounts of oil in the case of large return quantities such as those that occur when retracting differential hydraulic cylinders. spring-loaded valve in ball design opening pressure: 2 bar
Brand
asahydraulik
Connection input
flange
Connection output
flange
Connection sensor (inches)
1/2 internal thread
Depth (mm)
228
Flow quantity (l/min)
25-250
Height (mm)
470
Material cooler element
aluminum
Specific cooling capacity (kW/°C)
0,20-0,40
Type
0177BP
Voltage fan motor (V)
12
Weight (kg)
25,5
Width (mm)
565
