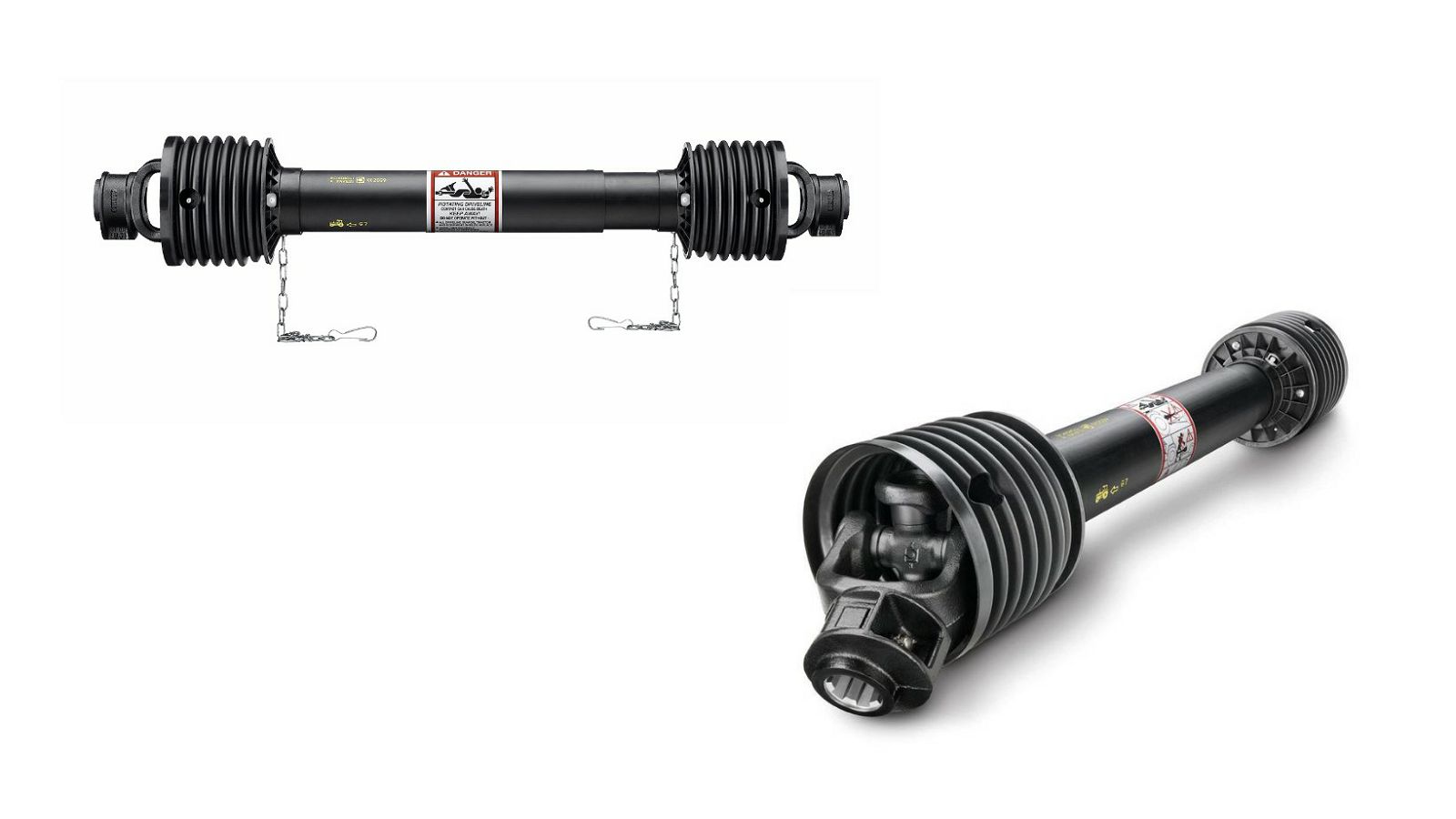

KARDANSKO VRATILO G1, PTO Shaft, L-1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

7G1N121CE007007
81100303000

----------

Brand
Bondioli & Pavesi

Connection machine-side
1 3/8 inch 6 teeth

Connection tractor side
1 3/8 inch 6 teeth

Info 1
global

Length (mm)
1210

Manufactured size
G1

Power (kW)
to approx. 18

Profile pairing
1/2

Profile pairing OE
2.6-32.5/4-26.5

Version machine-side
sliding pin lock

Version tractor side
Schiebestiftverschluss

Weight (kg)
9

Torque (Nm)
210

Torque Range (Nm)
40-210Nm

Tractor End
1 3/8'' x 6 Spline Q.R.

Tube Profile
Triangle

Universal Joint Dimensions
22 x 54mm

Kilowatt Power Rating @ 540RPM
12

Kilowatt Power Rating @ 1000RPM
18

HP Rating @ 540RPM
16

HP Rating @ 1000RPM
25

HP Rating Range @ 540RPM
up to 54

Implement End
1 3/8'' x 6 Spline Q.R.
