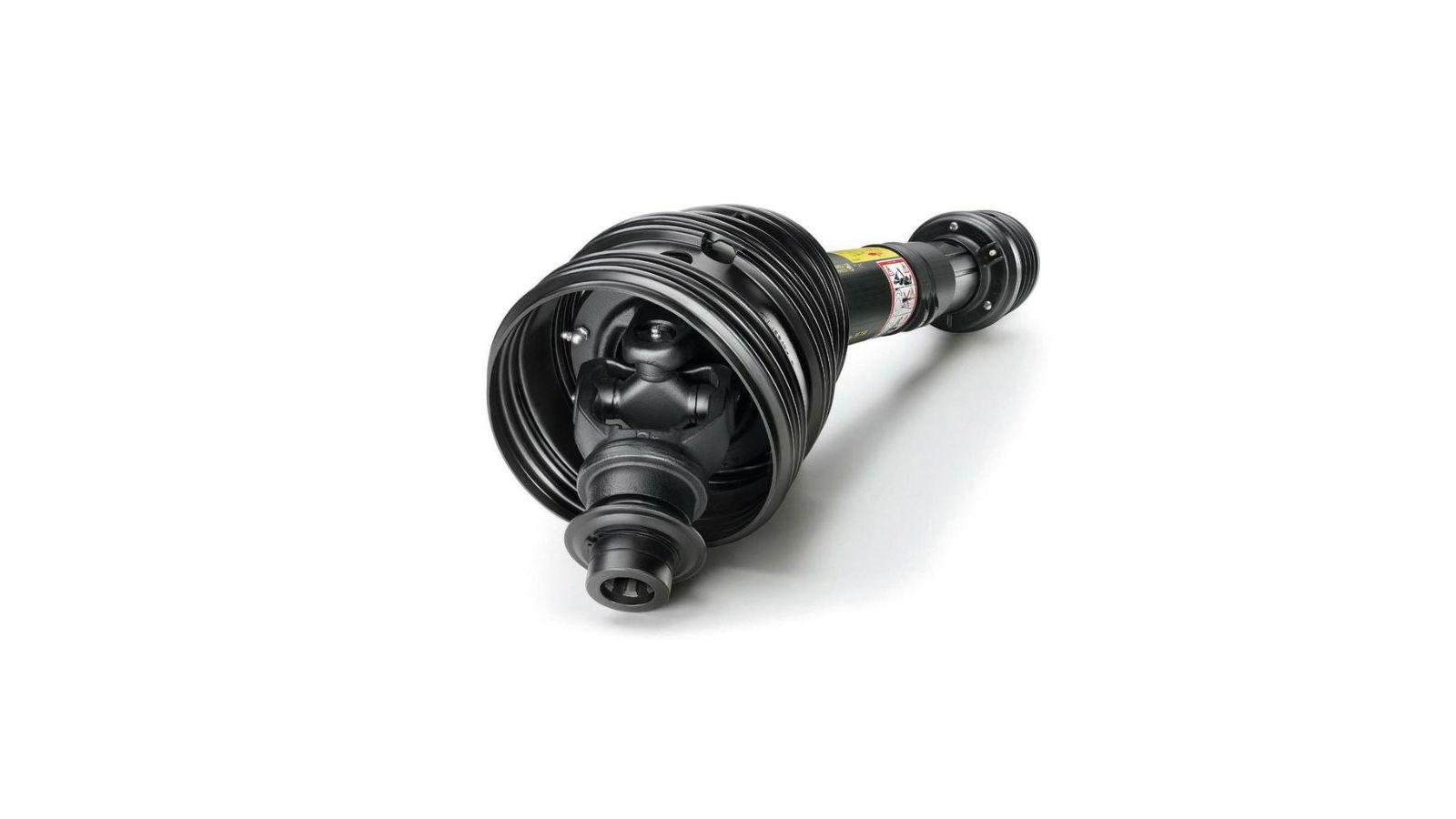

KARDANSKO VRATILO S4, PTO Shaft, L-1210mm, 1 3/8'' x 6 Spline 80° W.A. Slide Lock to 1 3/8'' x 6 Spline Q.R.

CS4R121CEWR7007
81100121700

----------

HP Rating @ 540RPM: 38HP, Series:SFT S4-80°

Brand
Bondioli & Pavesi

Connection machine-side
1 3/8 inch 6 teeth

Connection tractor side
1 3/8 inch 6 teeth

Length (mm)
1210

Manufactured size
S4

Power (kW)
to approx. 100

Profile pairing
W3/W4

Profile pairing OE
3.75-44.70/2.50-50.20

Version machine-side
sliding pin lock

Version tractor side
Weitwinkel 80° mit Automatikverschluss

Weight (kg)
21,8

Grease Coupler
End cap Grease Nipple WA End

Guard Type
SFT

HP Rating @ 540RPM
38

HP Rating @ 1000RPM
57

HP Rating Range @ 540RPM
up to 54

Implement End
1 3/8'' x 6 Spline Q.R.

Italian Series
SFT S4-80°

Kilowatt Power Rating @ 540RPM
28

Kilowatt Power Rating @ 1000RPM
42


PTO Series
SFT S4-80°

Reference
CS4R121CEWR7007

Tariff Code
8483908990

Torque (Nm)
494

Torque Range (Nm)
335 - 1240Nm

Tractor End
1 3/8'' x 6 Spline 80° W.A. Slide Lock

Tube Profile
Square

Tube Ref
2453G/12243

Universal Joint Dimensions
22x86mm
