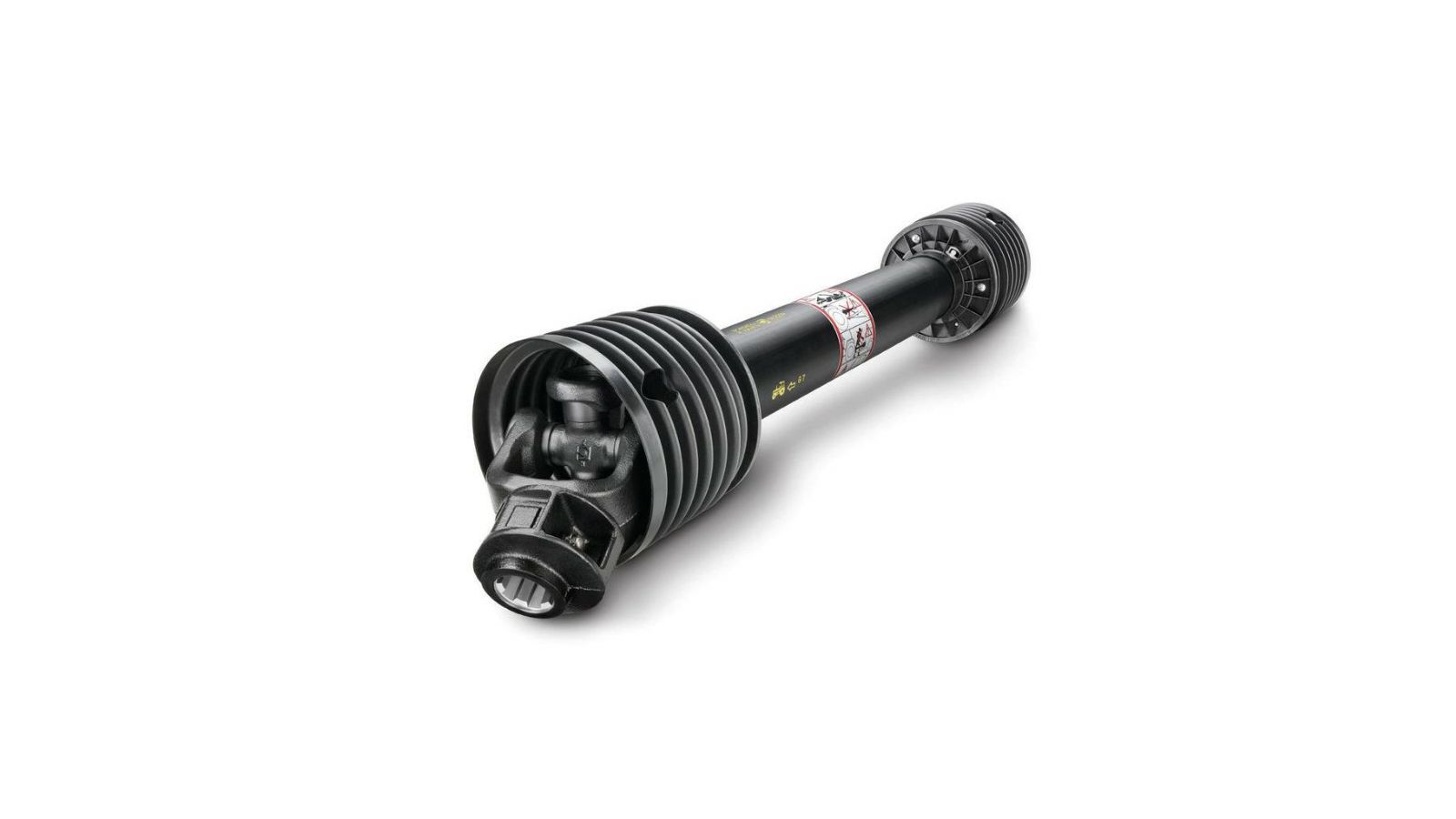

KARDANSKO VRATILO S4, PTO Shaft, L-1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

CS4N121CE007007
81100304100

----------

Brand
Bondioli & Pavesi

Connection machine-side
1 3/8 inch 6 teeth

Connection tractor side
1 3/8 inch 6 teeth

Length (mm)
1210

Manufactured size
S4

Power (kW)
to approx. 42

Profile pairing
5/6

Profile pairing OE
2.75-50.2/3.5-44.2

Version machine-side
sliding pin lock

Version tractor side
Schiebestiftverschluss

Weight (kg)
15,5

Guard Type
SFT

HP Rating @ 540RPM
38

HP Rating @ 1000RPM
57

HP Rating Range @ 540RPM
up to 54

Implement End
1 3/8'' x 6 Spline Q.R.

Italian Series
SFT S4

Kilowatt Power Rating @ 540RPM
28

Kilowatt Power Rating @ 1000RPM
42

Torque (Nm)
494

Torque Range (Nm)
335 - 1240Nm

Tractor End
1 3/8'' x 6 Spline Q.R.

Tube Profile
Square

Universal Joint Dimensions
27x74.5mm
