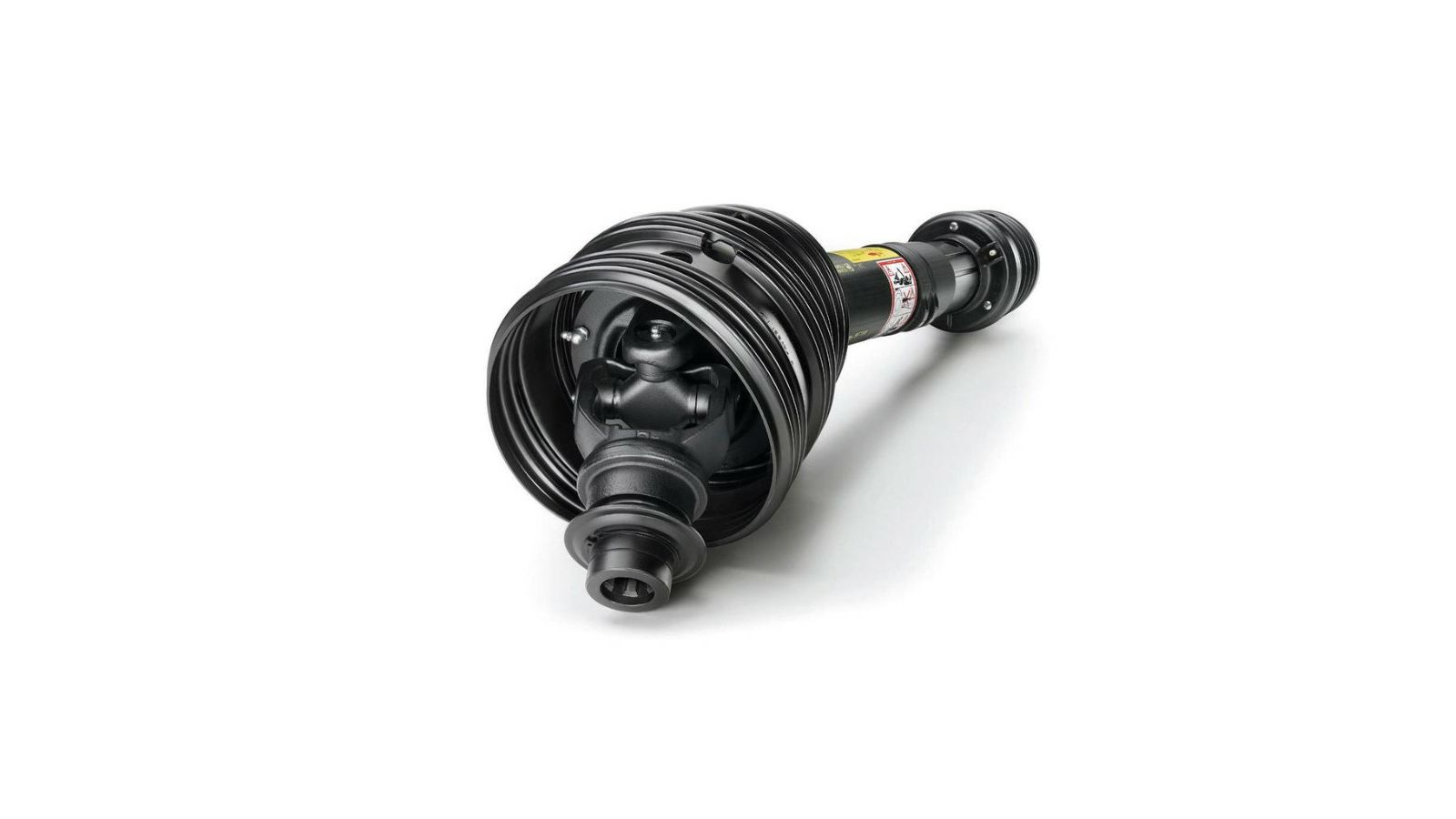

KARDANSKO VRATILO S6, PTO Shaft, L-1210mm, 1 3/8'' x 6 Spline 80° W.A. Slide Lock to 1 3/8'' x 6 Spline Q.R.

CS6R121CEWR7007
81100121800

----------

HP Rating @ 540RPM: 55HP, Series:SFT S6-80°

Brand
Bondioli & Pavesi

Connection machine-side
1 3/8 inch 6 teeth

Connection tractor side
1 3/8 inch 6 teeth

Length (mm)
1210

Manufactured size
S6

Power (kW)
to approx. 150

Profile pairing
W5/W6

Profile pairing OE
3.00-53.90/4.75-47.40

Version machine-side
sliding pin lock

Version tractor side
Weitwinkel 80° mit Automatikverschluss

Weight (kg)
33

Grease Coupler
End cap Grease Nipple WA End

Guard Type
SFT

HP Rating @ 540RPM
55

HP Rating @ 1000RPM
83

HP Rating Range @ 540RPM
55 to 119

Implement End
1 3/8'' x 6 Spline Q.R.

Italian Series
SFT S6-80°

Kilowatt Power Rating @ 540RPM
40

Kilowatt Power Rating @ 1000RPM
61

Lz Length (mm)
1210

PTO Series
SFT S6-80°

Reference
CS6R121CEWR7007

Tariff Code
8483908990

Torque (Nm)
716

Torque Range (Nm)
335 - 1240Nm

Tractor End
1 3/8'' x 6 Spline 80° W.A. Slide Lock

Tube Profile
Square

Tube Ref
2453N/12246

Universal Joint Dimensions
27x100mm
