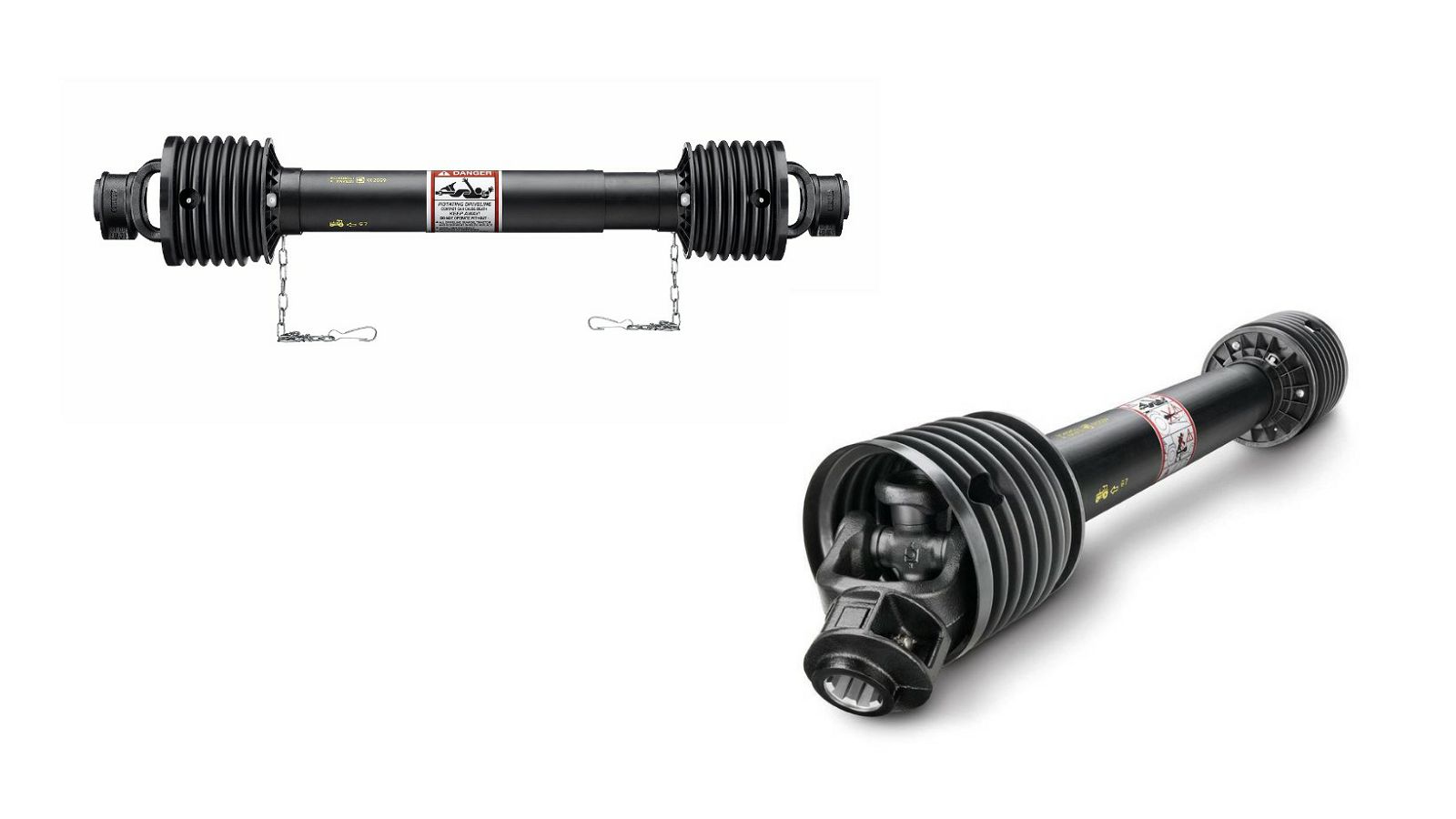

KARDANSKO VRATILO S6, PTO Shaft, L-1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R.

CS6N121CE007007
81100304200

----------

Brand
Bondioli & Pavesi

Grease Coupler
Central Grease Nipple

Guard Type
SFT

HP Rating @ 540RPM
55

HP Rating @ 1000RPM
83

HP Rating Range @ 540RPM
55 to 119

Implement End
1 3/8'' x 6 Spline Q.R.

Italian Series
SFT S6

Kilowatt Power Rating @ 540RPM
40

Kilowatt Power Rating @ 1000RPM
61

Lz Length (mm)
1210

PTO Series
SFT S6

Reference
CS6N121CE007007

Torque (Nm)
716

Torque Range (Nm)
335 - 1240Nm

Tractor End
1 3/8'' x 6 Spline Q.R.

Tube Profile
Square

Tube Ref
12244/12245

Universal Joint Dimensions
30.2x79.4mm

onnection machine-side
1 3/8 inch 6 teeth

Connection tractor side
1 3/8 inch 6 teeth

Manufactured size
S6

Power (kW)
to approx. 60

Profile pairing
9/10

Profile pairing OE
3.25-53.9/4.5-46.9

Version machine-side
sliding pin lock

Version tractor side
Schiebestiftverschluss

Weight (kg)
20,8
