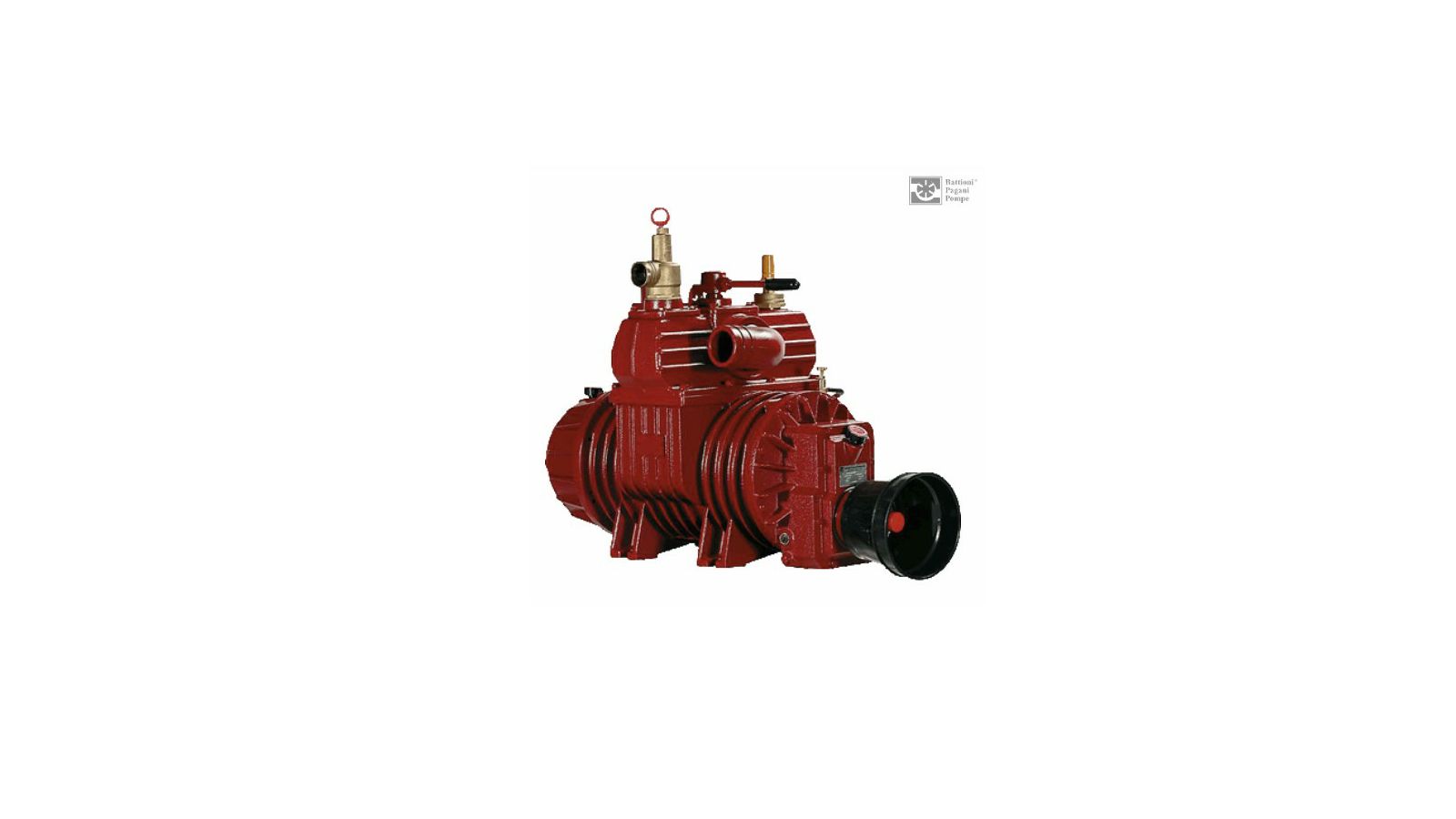

KOMPRESOR Star 84/MA, SA MJENJAČEM - BATTIONI PAGANI

STAR84MA
STAR84/MA
9731000082
Vordermaier6044
82100397800

-------------

with gear 1000 rpm, left-hand rotation, delivery without safety valve, version with compressed lubrication, vacuum valve -0.8 bar, rotatable elbow, including gear oil filling, lubricating oil of the specification SAE 15W40 has to be added

Brand
Battioni Pagani

Connection machine-side
1 3/8 inch 6 teeth

Fill quantity lubricating oil (l)
3,7

For type Battioni
Star 84/MA

Max. delivery rate (l/min)
14420

Max. operating pressure (bar)
2,5

Max. revolution input (rpm)
1000

Power requirement for max. operating pressure (kW)
25

Power requirement for max. vacuum (kW)
25

Version
with gearbox

Weight (kg)
250

o hose connection (mm)
100

FI valve connection (inches)
2
