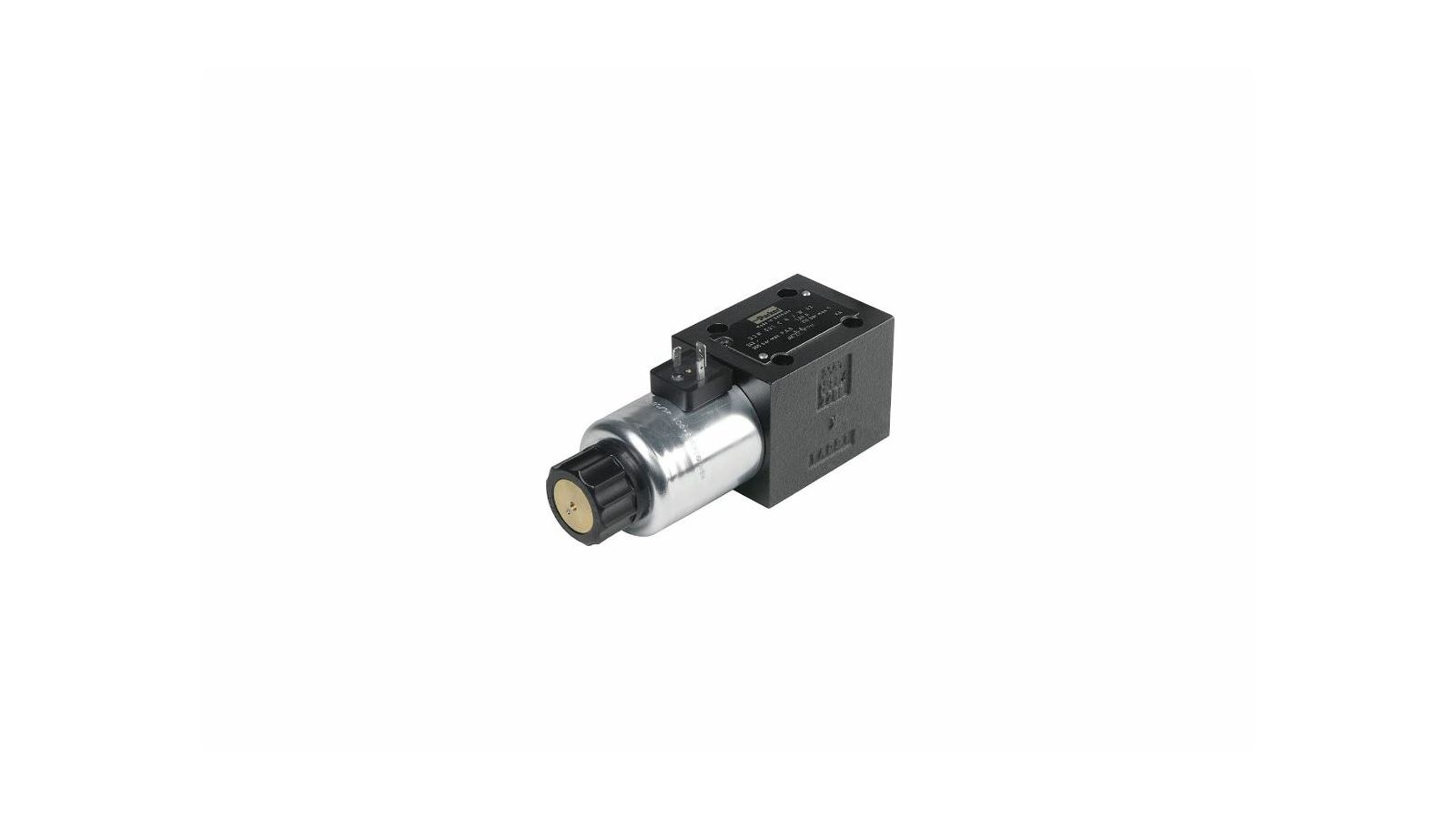

D3W026BNJW
61100092400
Width (mm)
70
Weight (kg)
4,824
Height (mm)
95
Length (mm)
209
Power (W)
36
Brand
other
Voltage (V)
24
Max. flow rate (l/min)
100
Material
steel
Degree of protection
IP 65
Standard ISO
4401
Surface
nitrided
Max. operating pressure (bar)
315
Electrical connection
DIN 43650 Form A
Electrical connection
EN 175301 - 803 mold A
Max. operating pressure return flow (bar)
210
Status zero position
P open at A and B closed
Switch function
4/2-way
Nominal size
10
Type
05
