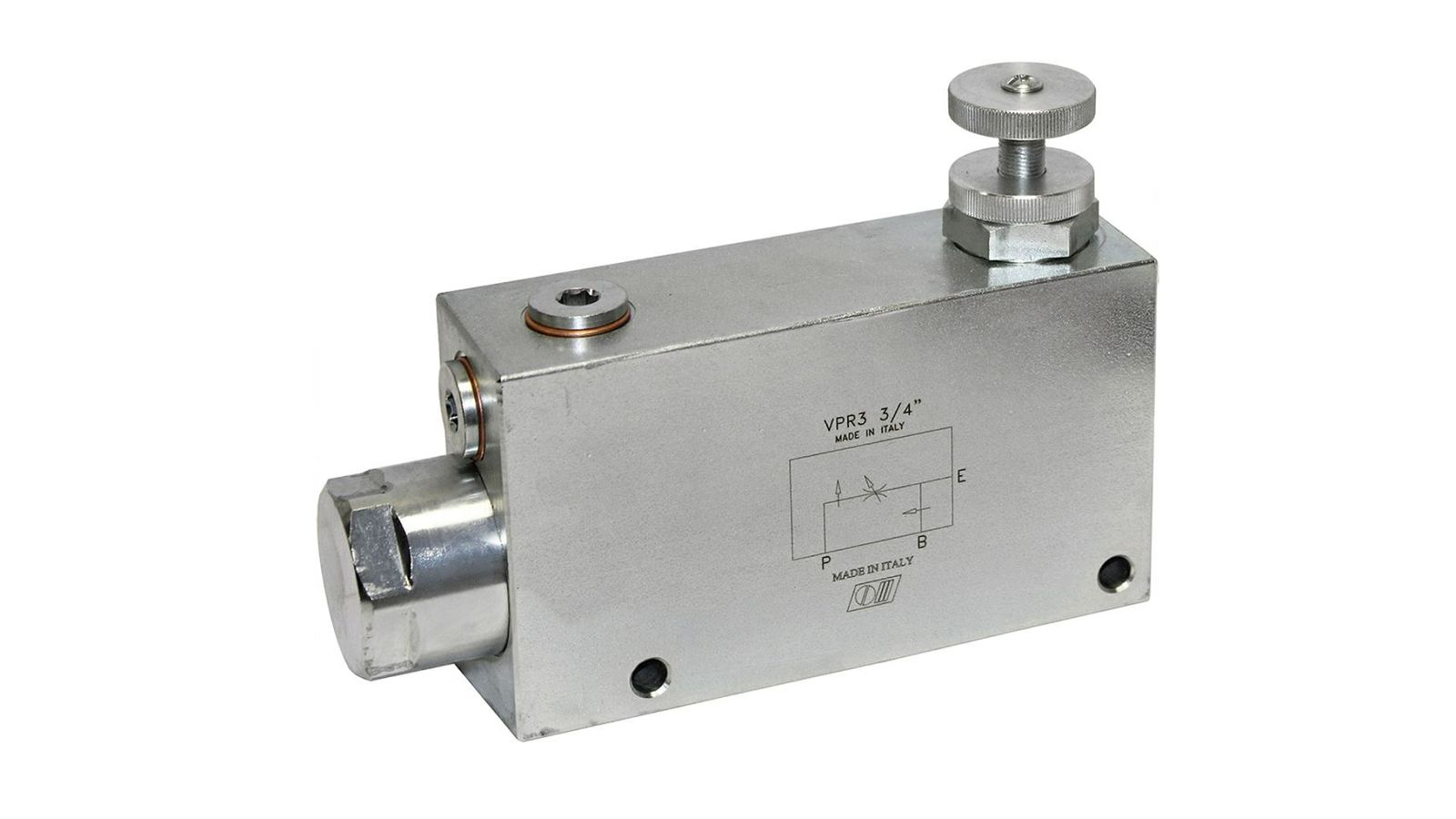

KONTROLNI VENTIL PROTOKA, 0-100L/min, max 120L/min, G 3/4" - OLEODINAMICA

VPR3
VPR3.3/4”
VPR33/4”
V3490.1080
V34901080
61100435600


The priority flow control valve allocates the input oil quantity (E- pressure input) to the oil port P (controlled quantity) depending on the setting of the adjustment dial and keeps it constant.
The excess oil quantity can be used at connection B (additional usable quantity - loadable) for further functions.
A return flow from P to E is limited by the selected opening of the choke and is not pressure balanced. Reverse flow from B is not permissible and will cause damage to the valve or the system.


Protok (l/min)
0-100

Priključak za izlaz tlaka (inči)
G 3/4 unutarnji navoj

Vrsta regulacije
mehanički s rotirajućim gumbom

Tlačni ulazni priključak (inči)
G 3/4 unutarnji navoj

Povratni priključak (inči)
3/4 unutarnji navoj

Težina (kg)
4,942

Površinski
Pocinčano bez Cr6

Maks. protok (l/min)
120

Materijal
željezo
