BKH-12S-08
BKH12S08
BKH-12S
BKH-12S-0811261
BKH12S0811131
BKH 12S 08 1113 1
M20x1,5/o12S BKH 12S 08 1113 1
62300011200
------------

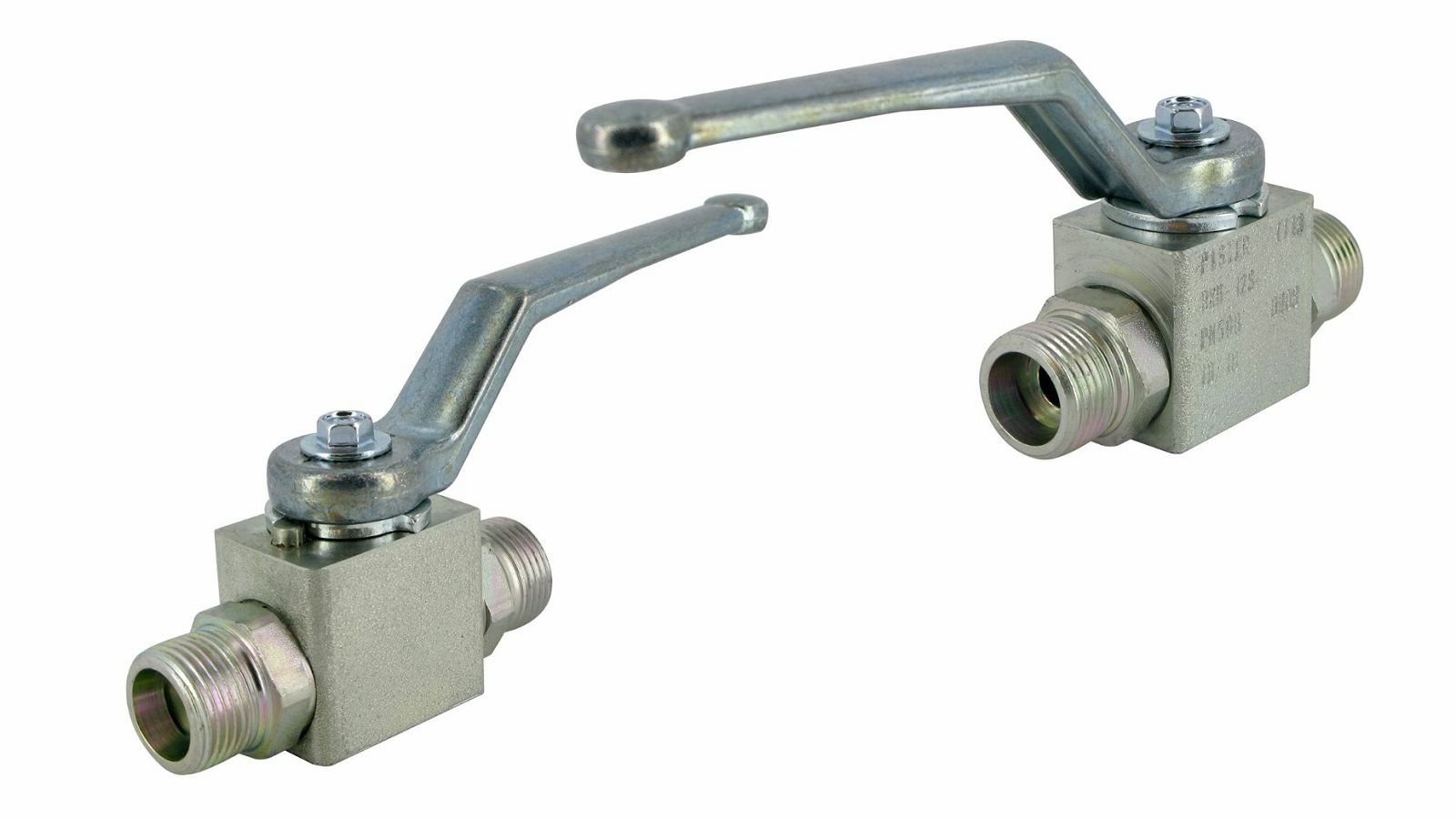

In the unsupported ball valves, the ball floats between the ball seals.
Absolute tightness is ensured in vacuum, at low pressure as well as at high pressure due to the inherently elastic preload of the ball seals.
These ball valves are specially constructed and designed for hydraulics.
They are characterized by freedom from maintenance and durability.
Applications up to 200 °C and 500 bar operating pressure are possible at any time.
The impact-resistant and high-quality aluminum handle ensures good operation.
Ball bore form
channel
Brand
Pister
For o tube A (mm)
12
For o tube B (mm)
12
Length (mm)
30,5
Material
steel
Max. operating pressure (bar)
500
Mounting bore (mm)
without
Nominal diameter (mm)
8
Production series
heavy
Surface
galvanized
Thread external A metric
M 20x1,5
Thread external B metric
M 20x1,5
Tube AD series
12 S
Weight (kg)
0,33
Width across flats line connection (mm)
22
Width across flats square (mm)
9
