BKH-3/8DG
BKHG3/81011131
BKHG381011131
BKH-3/8
BKH G3/8 10 1113 1
3/8 BSP BKH G3/8 10 1113 1
62300671700
------------

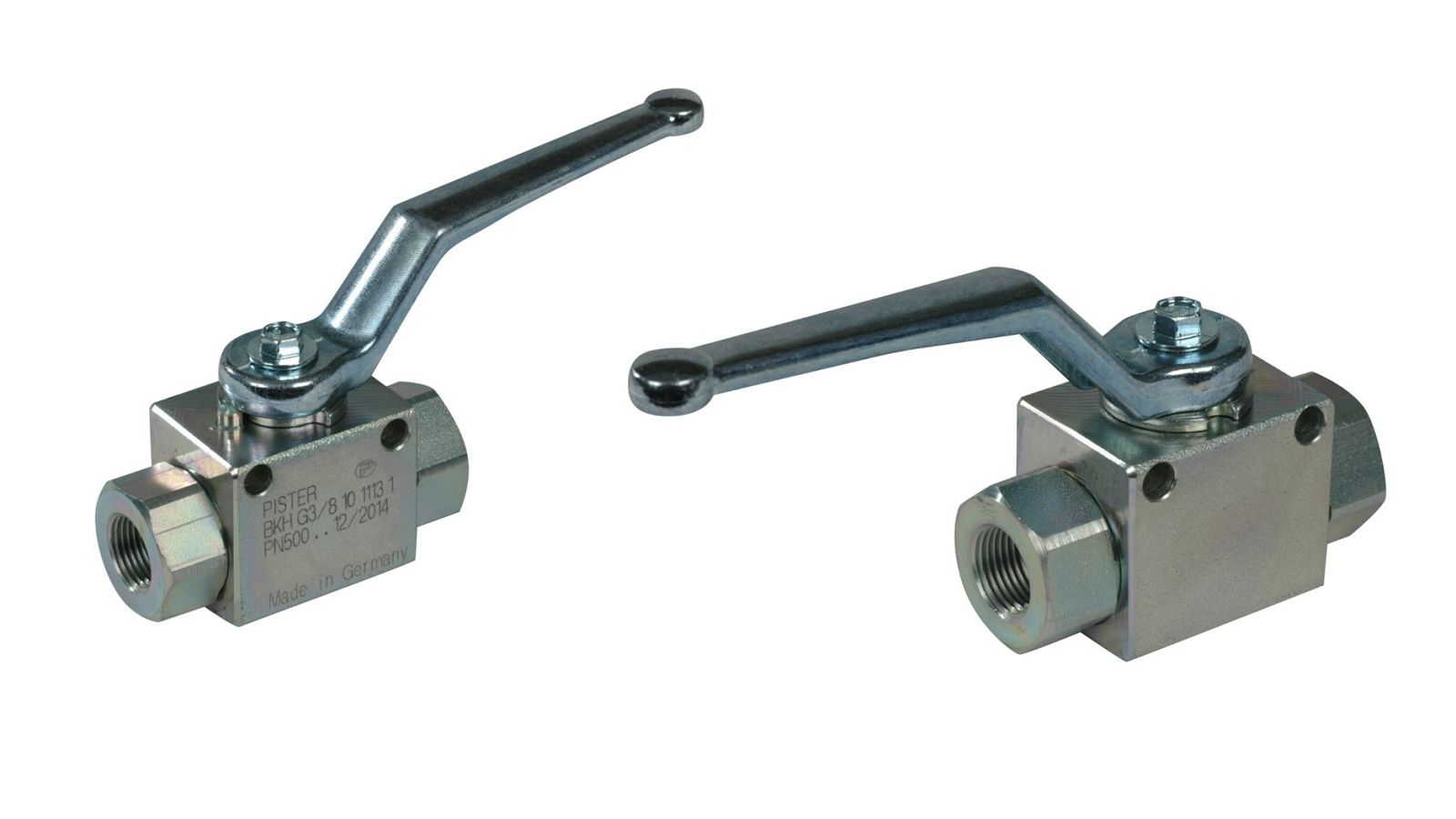

In the case of ball valves without bearings, the ball floats between the ball seals.
Absolute tightness is guaranteed in a vacuum, at low pressure and at high pressure due to the inherently elastic preload of the ball seals.
These ball valves are specially constructed and designed for hydraulic applications.
They are characterized by their maintenance-free operation and long service life.
Applications up to 200 °C and 500 bar operating pressure are possible at any time.
The impact-resistant, high-quality aluminum handle ensures easy operation.
Ball bore form
channel
Brand
Pister
Length (mm)
73
Material
steel
Max. operating pressure (bar)
500
Mounting bore (mm)
6,0
Nominal diameter (mm)
10
Surface
galvanized
Thread internal A (inches)
G 3/8
Thread internal B (inches)
G 3/8
Weight (kg)
0,511
Width across flats line connection (mm)
27
Width across flats square (mm)
9
