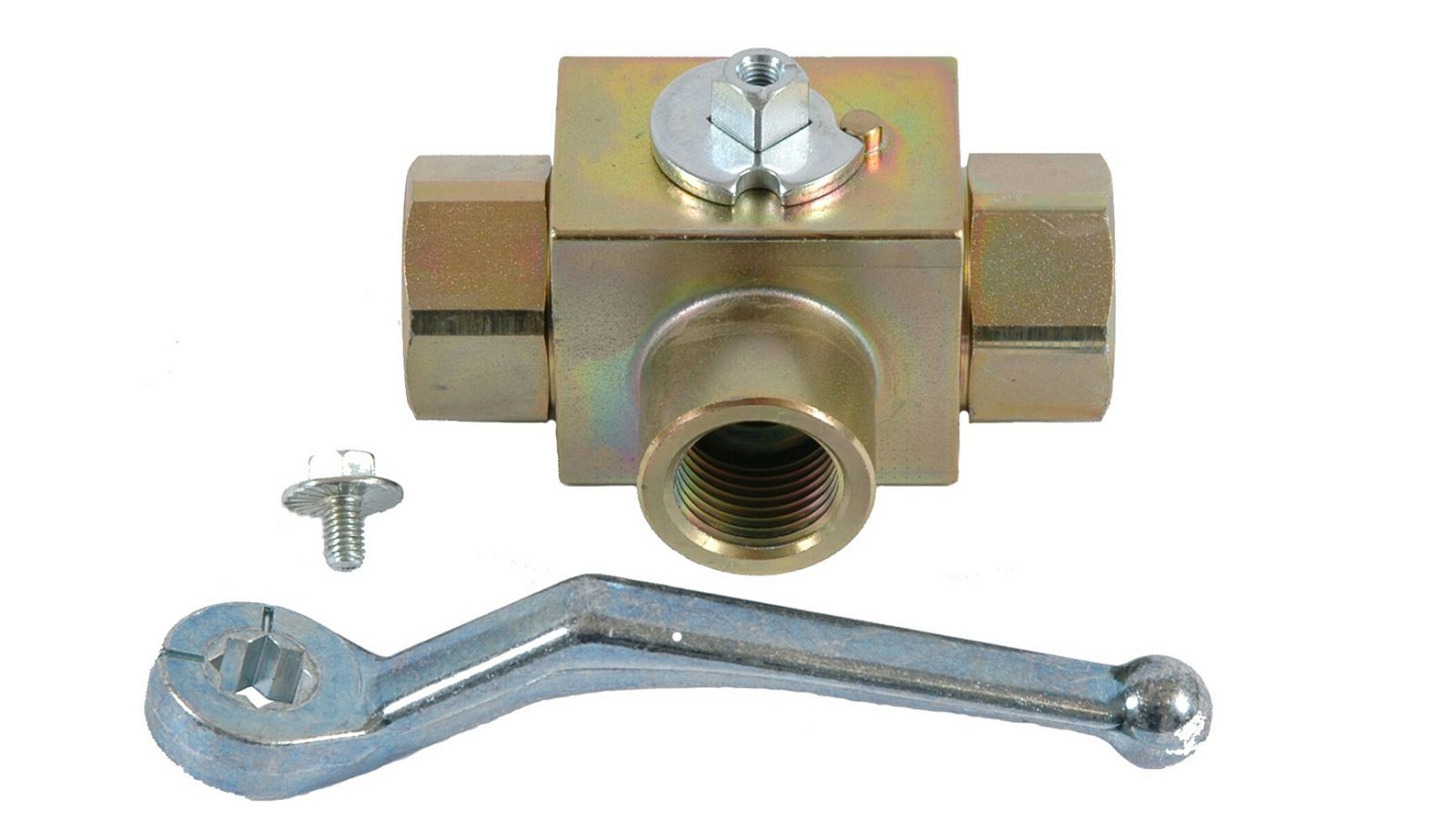

BK3-1/4L
BK3 G1/4 06 1123 1 l
1/4 B BK3 G1/4 06 1123 1 l
BK3G1/40611231l
62300034000
-----------
In the unsupported ball valves, the ball floats between the ball seals.
Absolute tightness is ensured in vacuum, at low pressure as well as at high pressure due to the inherently elastic preload of the ball seals.
These ball valves are specially constructed and designed for hydraulics.
They are characterized by freedom from maintenance and durability.
Applications up to 200 °C and 500 bar operating pressure are possible at any time.
The impact-resistant and high-quality aluminum handle ensures good operation.
Ball bore form
L
Brand
Pister
Length (mm)
69
Material
steel
Max. operating pressure (bar)
400
Mounting bore (mm)
4,5
Nominal diameter (mm)
6
Shifting travel
negative overlap
Surface
galvanized
Thread internal A (inches)
G 1/4
Thread internal B (inches)
G 1/4
Thread internal C (inches)
G 1/4
Weight (kg)
0,2
Width across flats line connection (mm)
22
Width across flats square (mm)
9
