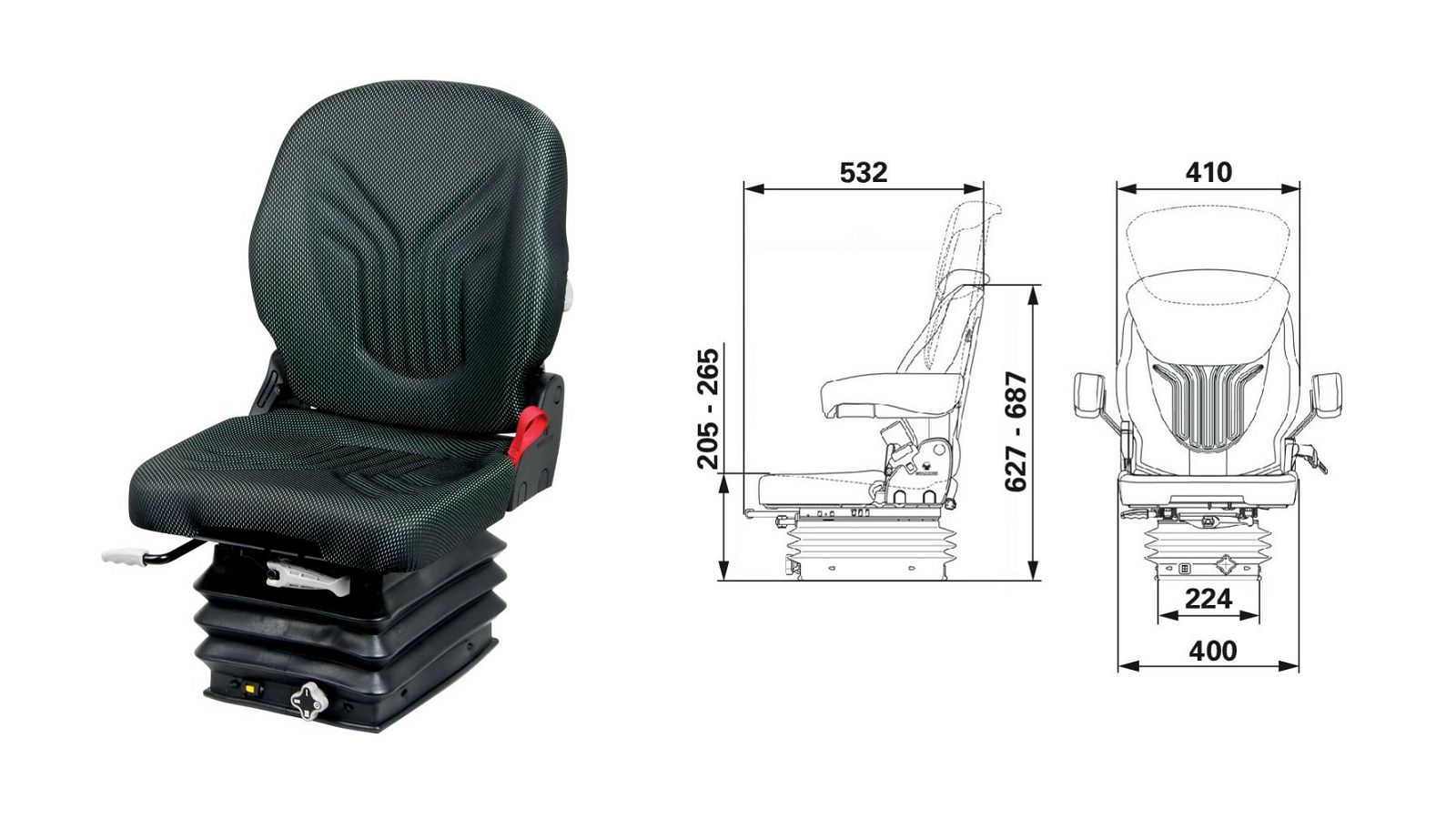

MEHANIČKO TRAKTORSKO SJEDALO COMPACTO BASIC S, MSG83/511 - GRAMMER

1289042
1081365
MSG83/511
58100179700

-------------

Additional settings
weight setting manual
height setting

Air supply
without

Brand
Grammer

Color cover
anthracite/green/silver

Comfort features
folding backrest

Control lever support console
without

For mount EPS
no

Height setting (mm)
60

Horizontal adjustment (mm)
180

Lumbar support
mechanical

Material seat cover
textile

Model designation
Compacto Basic S

Position operating element
right
left
front

Spring deflection (mm)
80

Suspension
mechanical

Swivel adapter
without

Track width (mm)
227

Type designation
MSG83/511

Usage
tractor
crane

Weight (kg)
26

Weight setting to (kg)
130

Width seat (mm)
411

Width seat cushion (mm)
400
