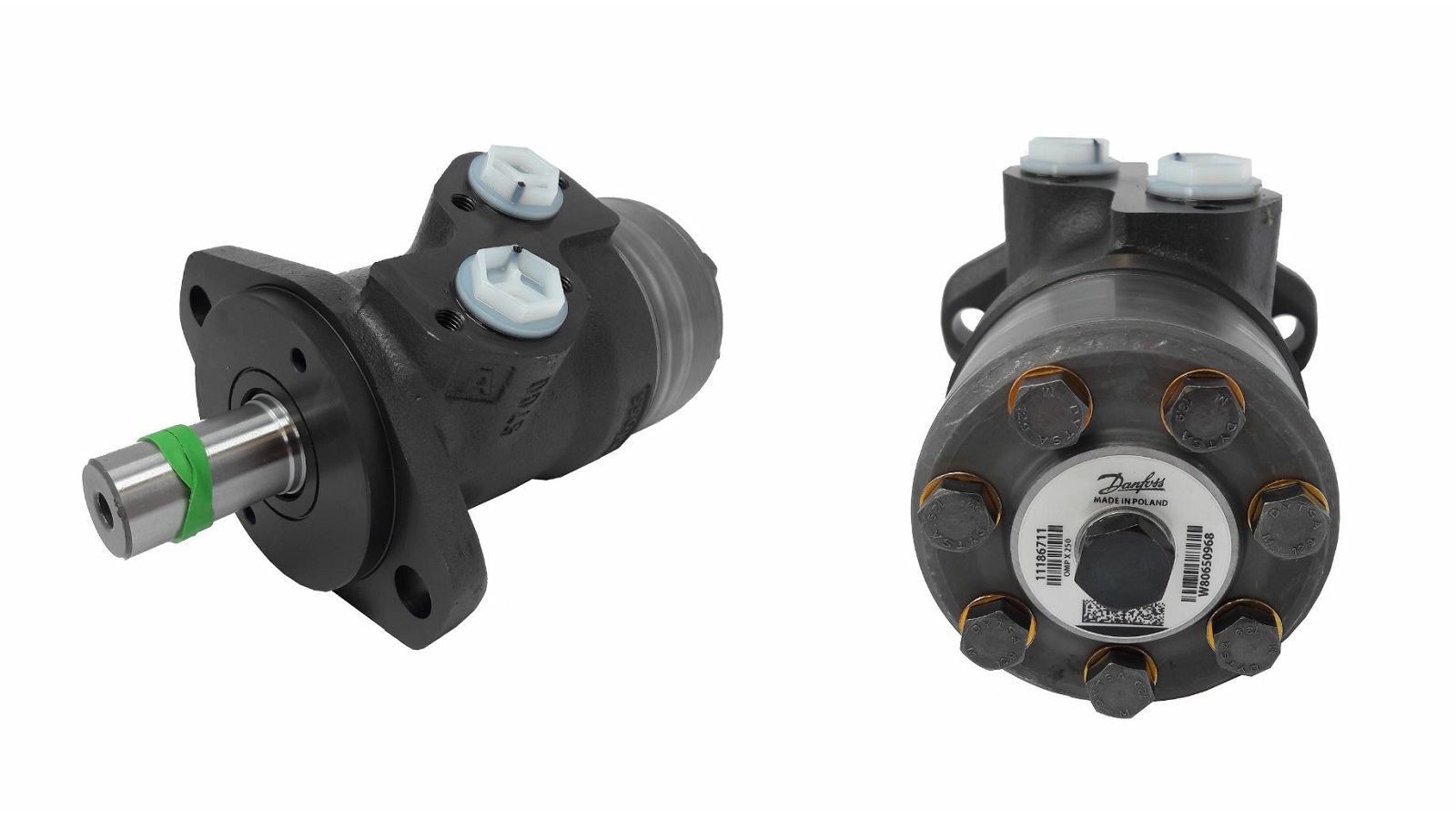

11186711
OMP250
OMP2501510616
2501510616
1510616
11186711
OMPX250
61100426900
-----------
Weight (kg)
7.209
Power (kW)
8.4
Brand
Danfoss
Operating pressure (bar)
120
Max. torque (Nm)
400
Max. revolution (rpm)
250
Max. pressure (bar)
155
Displacement (cm3/r)
242.3
o shaft/hub (mm)
25
Standard drive DIN
6885
Material housing
cast steel
Type
OMPX 250
Max. oil flow (l/min)
60
Specification drive
cylindrical shaft with feather key thread internal
Optional equipment valve
check valve
Oil connection A (inches)
1/2 internal thread
Oil connection B (inches)
1/2 internal thread
Leakage oil connection (inches)
1/4 internal thread
Assembly flange drive
2-hole oval (A2) M 12
