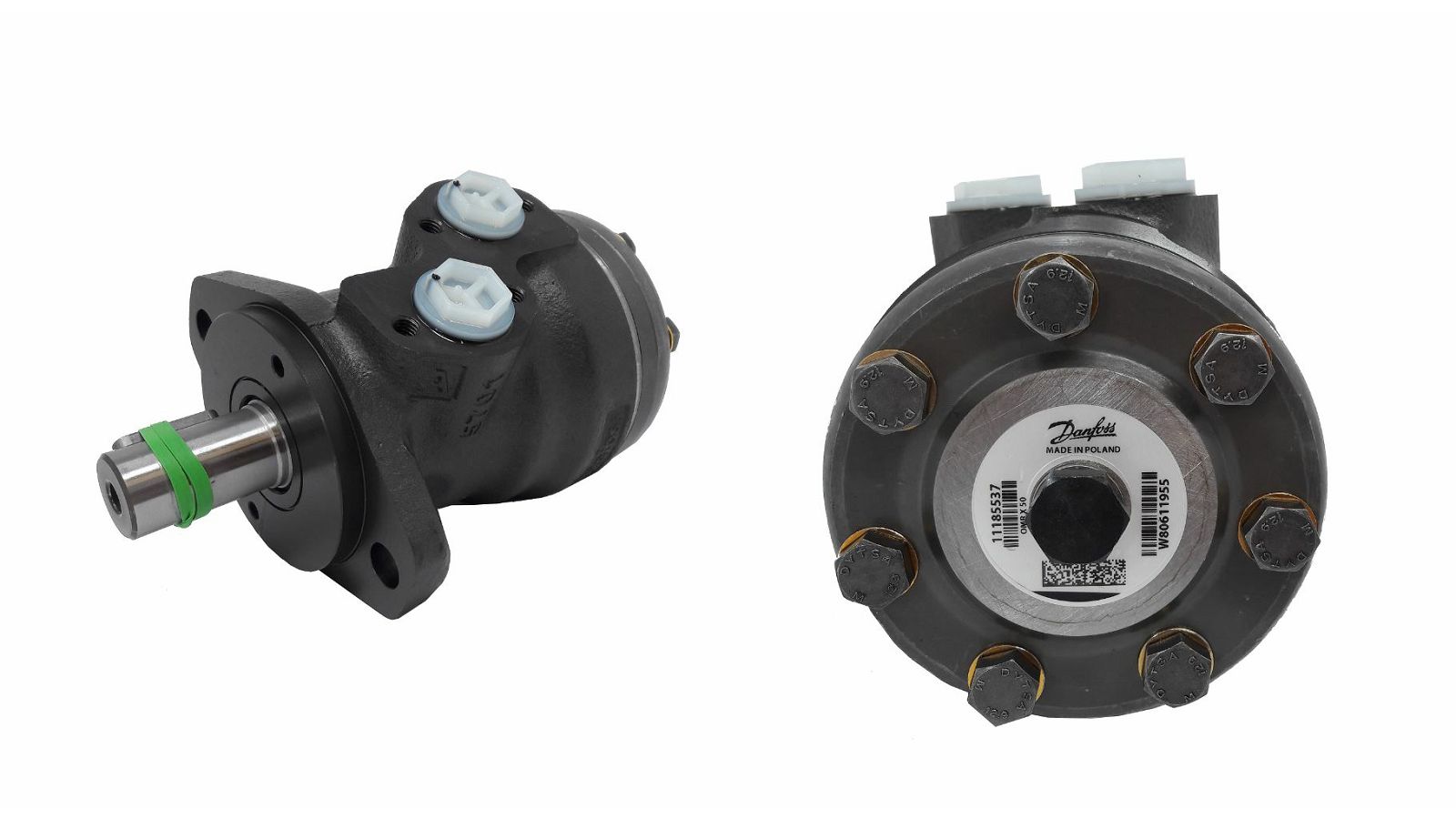

ORBITALNI MOTOR OMRX 50, 51,6cm3/r - DANFOSS

11185537
OMRX50
OMR50
OMR501510710
1510710
61100417200

-----------

Weight (kg)
7.304

Power (kW)
7

Brand
Danfoss

Operating pressure (bar)
200

Max. torque (Nm)
100

Max. revolution (rpm)
775

Max. pressure (bar)
225

Displacement (cm3/r)
51.6

o shaft/hub (mm)
25

Standard drive DIN
6885

Material housing
cast steel

Type
OMRX 50

Max. oil flow (l/min)
40

Specification drive
cylindrical shaft thread internal

Optional equipment valve
check valve

Oil connection A (inches)
1/2 internal thread

Oil connection B (inches)
1/2 internal thread

Leakage oil connection (inches)
1/4 internal thread

Assembly flange drive
2-hole oval (A2) M 12
