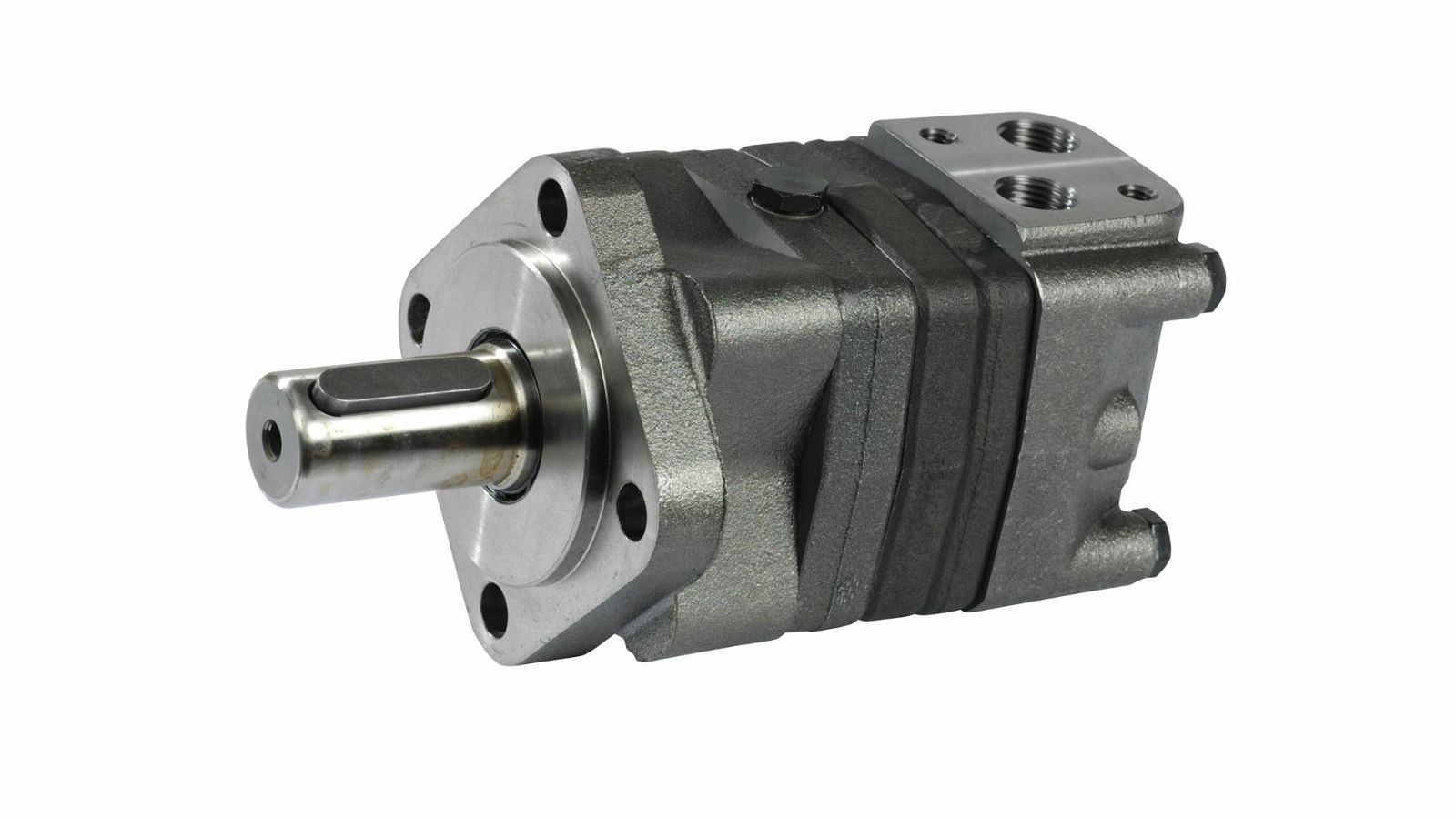

151F0605
OMS400
OMS400151F0605
151F0305
61100108900
-----------
Continuous power max.
11 kW
Continuous rotation max.
190 rpm
Dimension L
221 mm
Dimension L1
68.4 mm
Dimension L2
178 mm
Dimension L3
67 mm
Displacement
393 cm3
Drainport
G 1/4 BSP
Holes circle
106.4 mm
Intrastat code
84122981
Mounting flange
Square 82,5
Number of mounting holes
4
Oil viscocity recommended
20 - 75 cSt
Port position
Side
Pressure drop continuous max.
160 bar
Recess
82,5 mm
Shaft diameter
32 mm
Shaft keyway
10,0 mm
Shaft type
Cylindrical
Torque continuous max.
865 Nm
Working ports
G 1/2 BSP
------------
The operating principle of the motor is based on an internal gearbox consisting of a fixed toothed ring with internal rollers
and a gearwheel meshing with it, through which the output torque and speed are transmitted The rollers in the toothed ring reduce the load and distribute the tooth force optimally.
This achieves a long service life and better efficiency even with high continuous pressure.
gear wheel set with rollers is recommended for operation with low-viscosity oil and under operating conditions with frequent changes of direction of rotation the disk valve
is separated from the output shaft and is driven by a short cardan shaft (valve cardan shaft) A balance plate balances the hydraulic forces around the poppet valve and thus guarantees a high level of efficiency.
