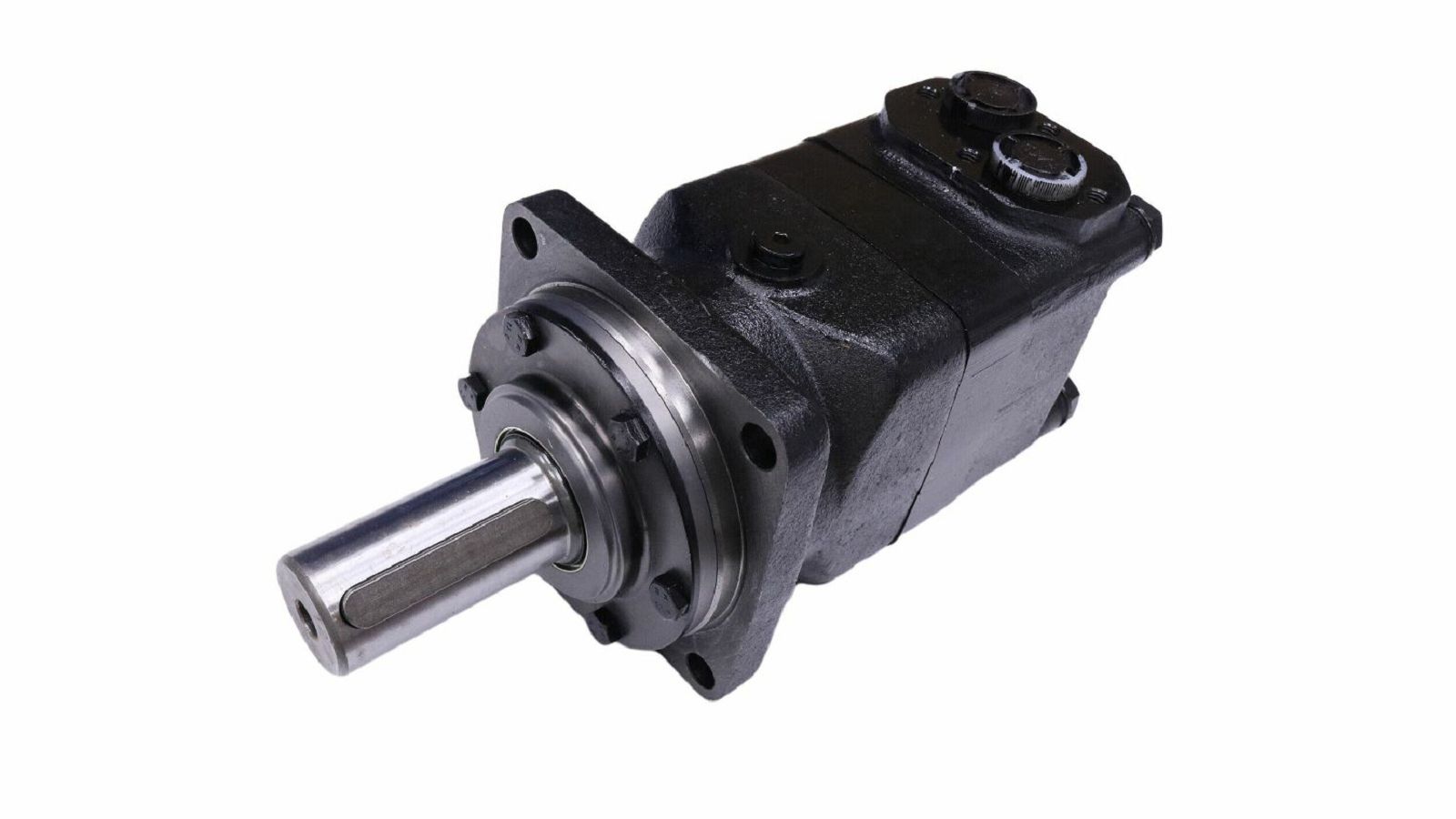

ORBITALNI MOTOR OMT500, 523,6cm3/r - DANFOSS

151B3005
61100109500
OMT500



Weight (kg)
24

Power (kW)
26.5

Brand
Danfoss

Operating pressure (bar)
210

Max. torque (Nm)
1220

Max. revolution (rpm)
240

Max. pressure (bar)
300

Displacement (cm3/r)
523.6

o shaft/hub (mm)
40

Standard drive DIN
6885

Material housing
cast steel

Type
OMT 500

Max. oil flow (l/min)
125

Specification drive
cylindrical shaft with feather key thread internal

Optional equipment valve
check valve

Oil connection A (inches)
3/4 internal thread

Oil connection B (inches)
3/4 internal thread

Leakage oil connection (inches)
1/4 internal thread

Assembly flange drive
4-hole hole circle 160 mm M 12
