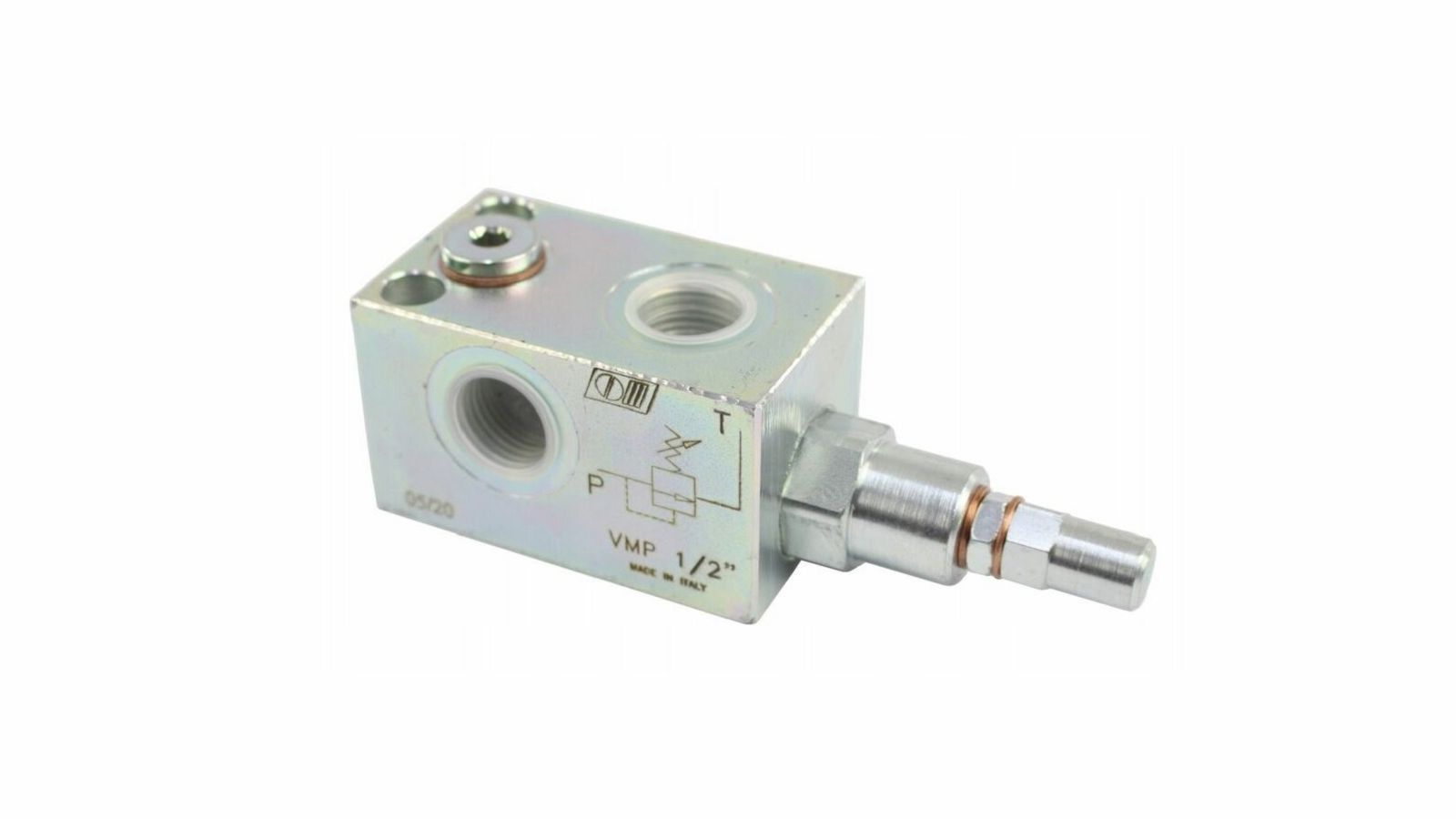

V0710
V0710/300VMP1/2”
VMP1/2”
V0710/250
Bondioli & Pavesi VMD8003B3
61100457800
-----------
valve for pressure protection of hydraulic systems When the set pressure is reached, the pressure connection to the return connection opens and prevents overpressure in the system.
pressure connection at 90 degrees to the return connection
Actuation
hydraulic
Connection pressure input
1/2 inch internal thread
Connection pressure output
1/2 inch internal thread
Connection return flow input (inches)
without
Connection return flow output (inches)
1/2 internal thread
Including magnetic coil
no
Info 1
with manometer connection G 1/4 inch
Material
steel
Max. flow rate (l/min)
70
Max. operating pressure (bar)
300
Pressure setting range (bar)
80-300
Securing type
cap
Set pressure (bar)
150
Setting type
adjusting screw
Surface
galvanized
Weight (kg)
1,064
