PENDELEUM L=D, HESTAL

102101388
102.101.388
59100005900

--------------

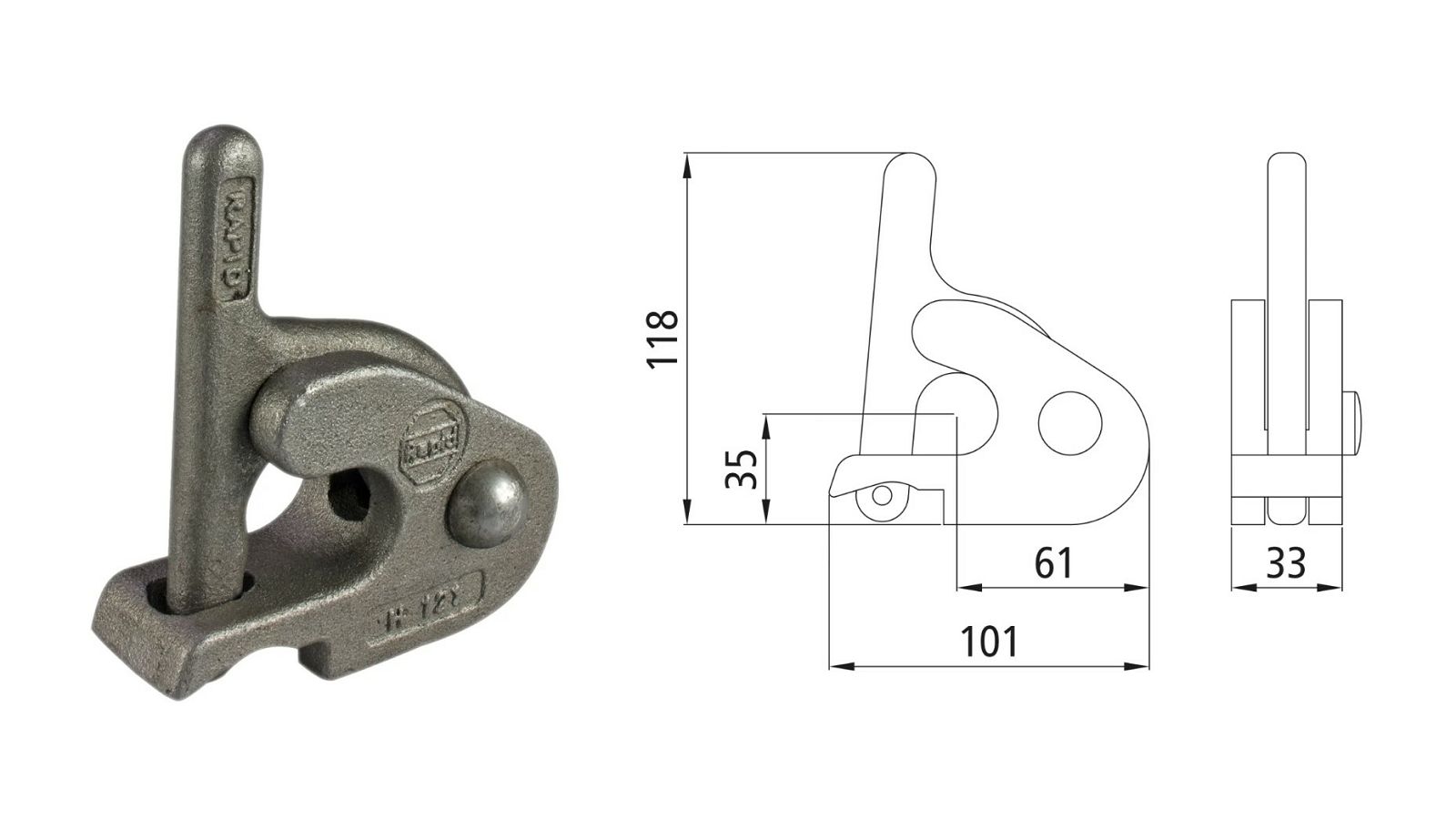

self-aligning bearing for tipper bodies with center and end stanchions
During assembly, the bearing pedestal is welded to the stanchion and the pendulum stud is mounted to the platform gate. The self-aligning bearing must be secured against self-opening, e.g. with a safety chain.


Height (mm)
117

Info 1
use small securing chain

Installation location left/middle/right
left
right

Length (mm)
102

Surface
blank

Type
H 121

Version
for welding on

Weight (kg)
0,939

Width (mm)
33
