R900064381
7000-12221-2340300
Z24M12X1+3MSPEZ
MOŽE IĆI ALTERNATIVA 7000-12221-2340400
-------------

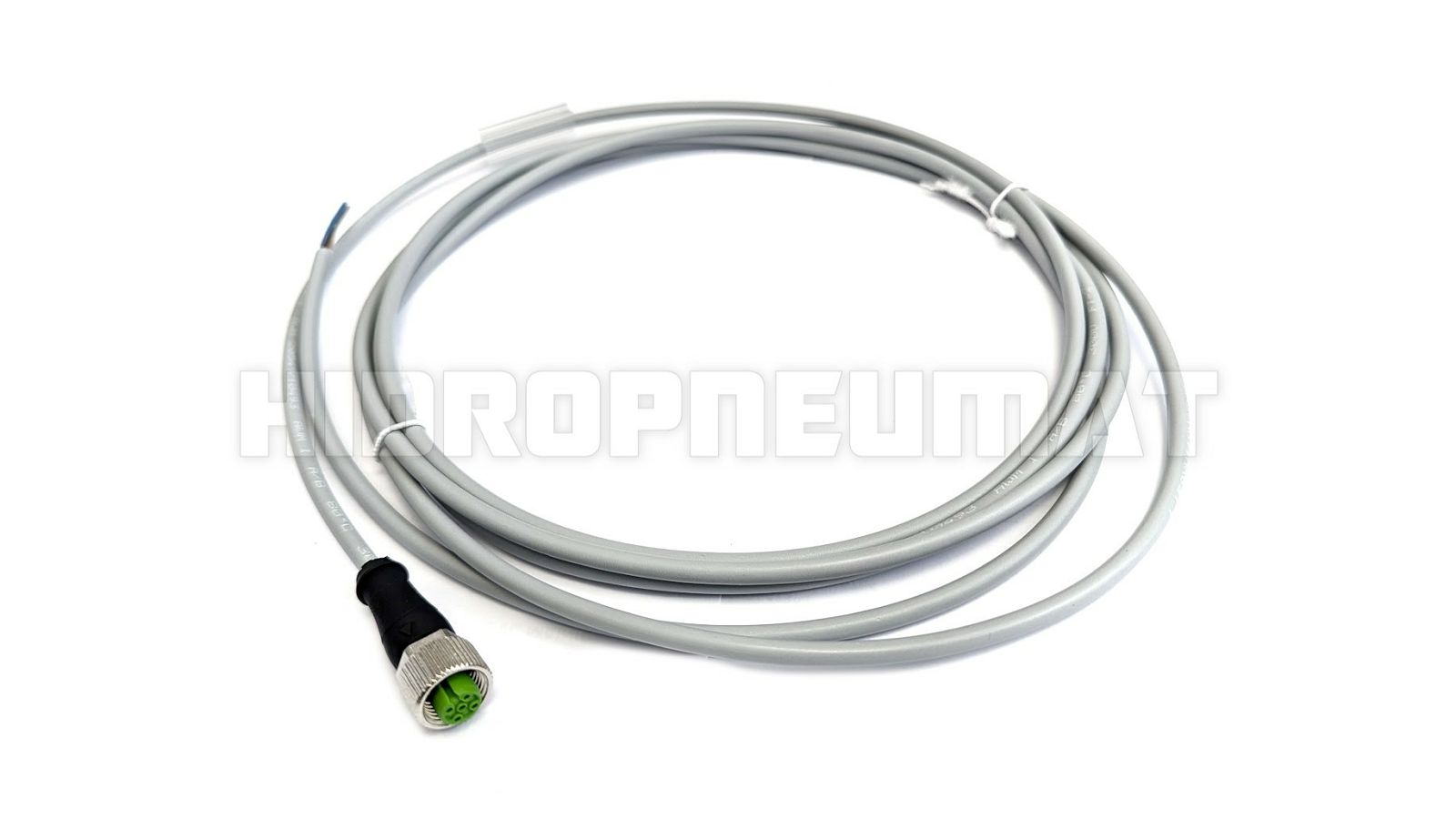

Connector, 4-pole, M12 x 1 according to EN 61076-2-101, with LED and interference protection circuit
M12 female 0° A-cod. with cable
PUR 4x0.34 gy UL/CSA+drag ch. 3m
Connection side A M12 socket, straight
Connection side B Cable, open end
Cable length 3.00 m
Jacket material PUR
Nominal voltage 300 V AC
Nominal current 4 A
Nominal current - rounded value 4 A
Outside FI 4.5 mm
Cross-section (sensor/actuator wiring) 0.34 mm2
Thread type (wiring and installation) M12
Cable color Grey
Coding A
IP rating IP65, IP66K, IP67 (when connected)
Min. temperature -40 °C
Max. temperature +80 °C
