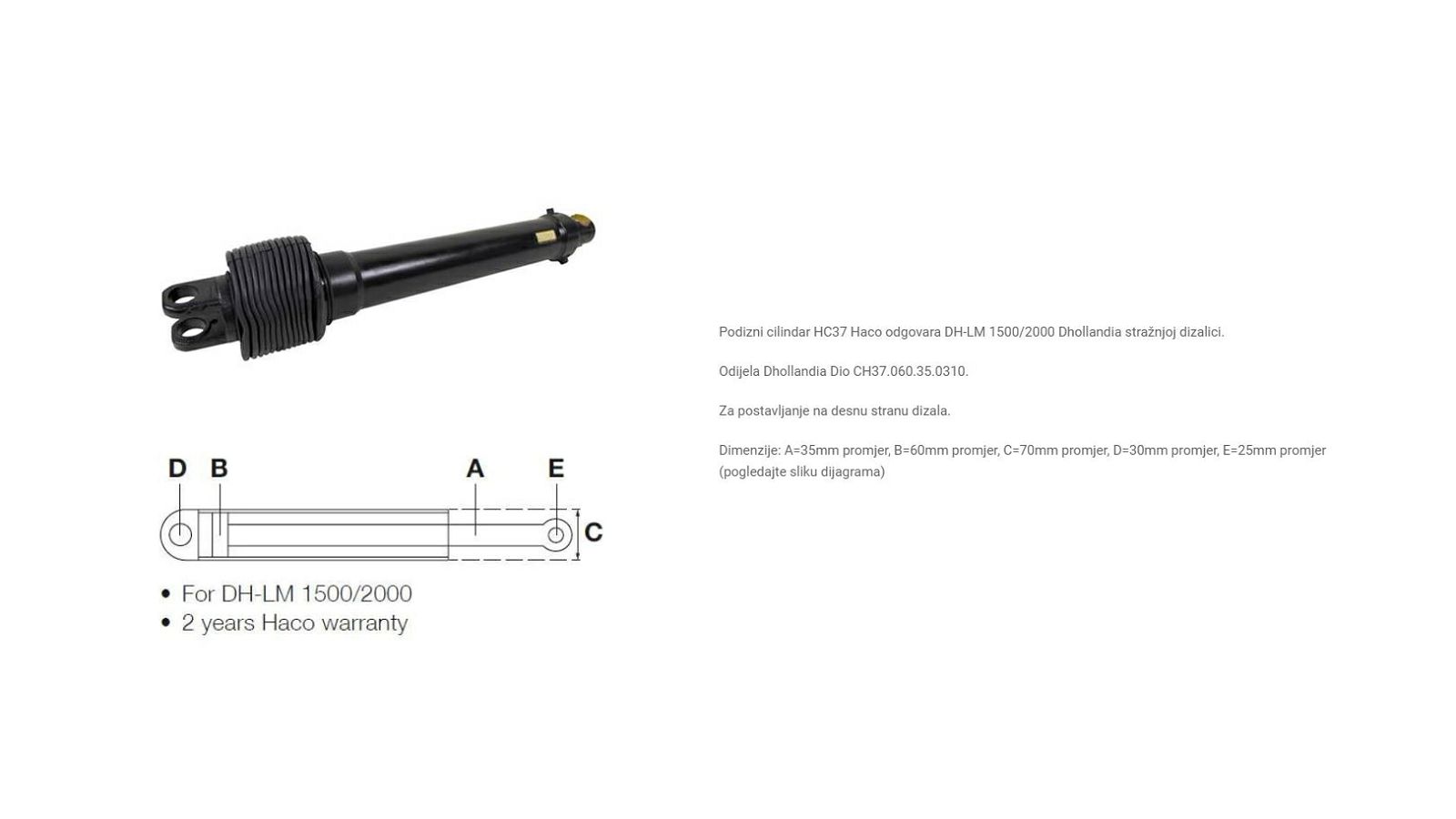

1056029H
CH37.060.35.0310.R
HC37
DH-LM1500/200
62500339800
----------------
Info 1: installation location right
Attachment type on bottom side: U-bracket
Attachment type rod side: cross bore
Installation dimension (mm): 565
FI casing tube (mm): 70
FI mounting bottom side (mm): 30
FI mounting rod side (mm): 25
FI piston rod (mm): 35
Weight (kg): 11,769
Operating pressure (bar): 230
Piston FI (mm): 60
Brand Haco
Stroke (mm): 310
Oil connection bottom side: 3/8 inch internal thread
Oil connection rod side: M 10x1
