65000073500
Approval
FDA approval
Bending radius (mm)
80
Braiding
without
Brand
Trelleborg
Burst pressure (bar)
18
Color exterior
blue
Color interior
white
Electrically conductive
no
Form surface
fabric pattern
Length per roll (m)
40
Material ceiling
natural rubber
Material core
natural rubber
Material pressure carrier
braided textile insert
steel wire spiral

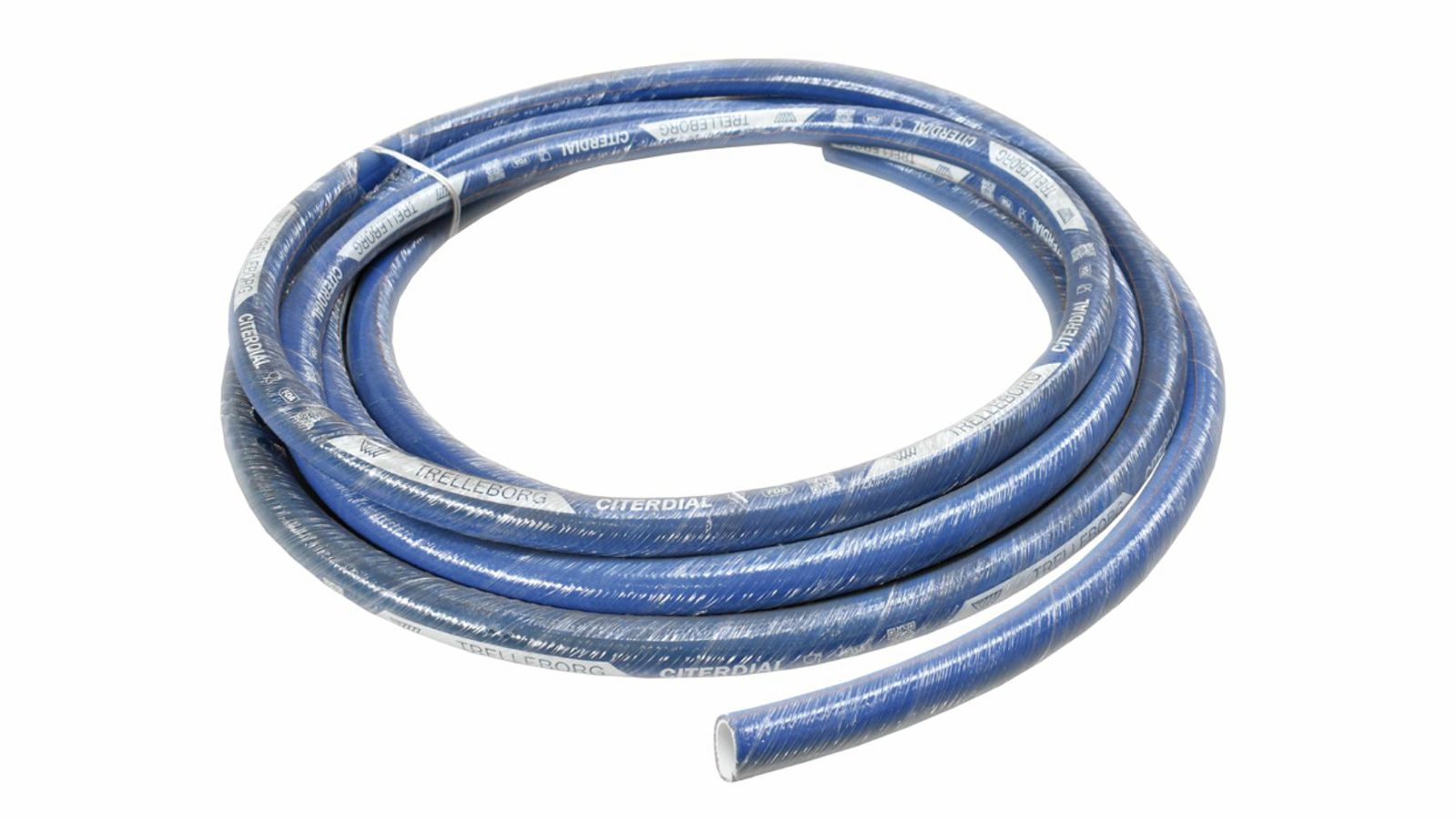

Name hose
CITERDIAL
Operating pressure (bar)
6
PU
by the meter
Standard
EG 1935/2004
EG 2023/2006
Suction capacity (bar)
0,9
Temperature range from (°C)
-30
Temperature range to (°C)
80
Usage details medium
alcohol to 50%
vinegar
milk
dairy products
juice
wine
Usage medium
liquids
food liquid
Version
pressure hose
suction hose
Wall thickness (mm)
5,5
Weight (kg)
1,5
o external (mm)
51
o internal (mm)
40
